Fusing
276

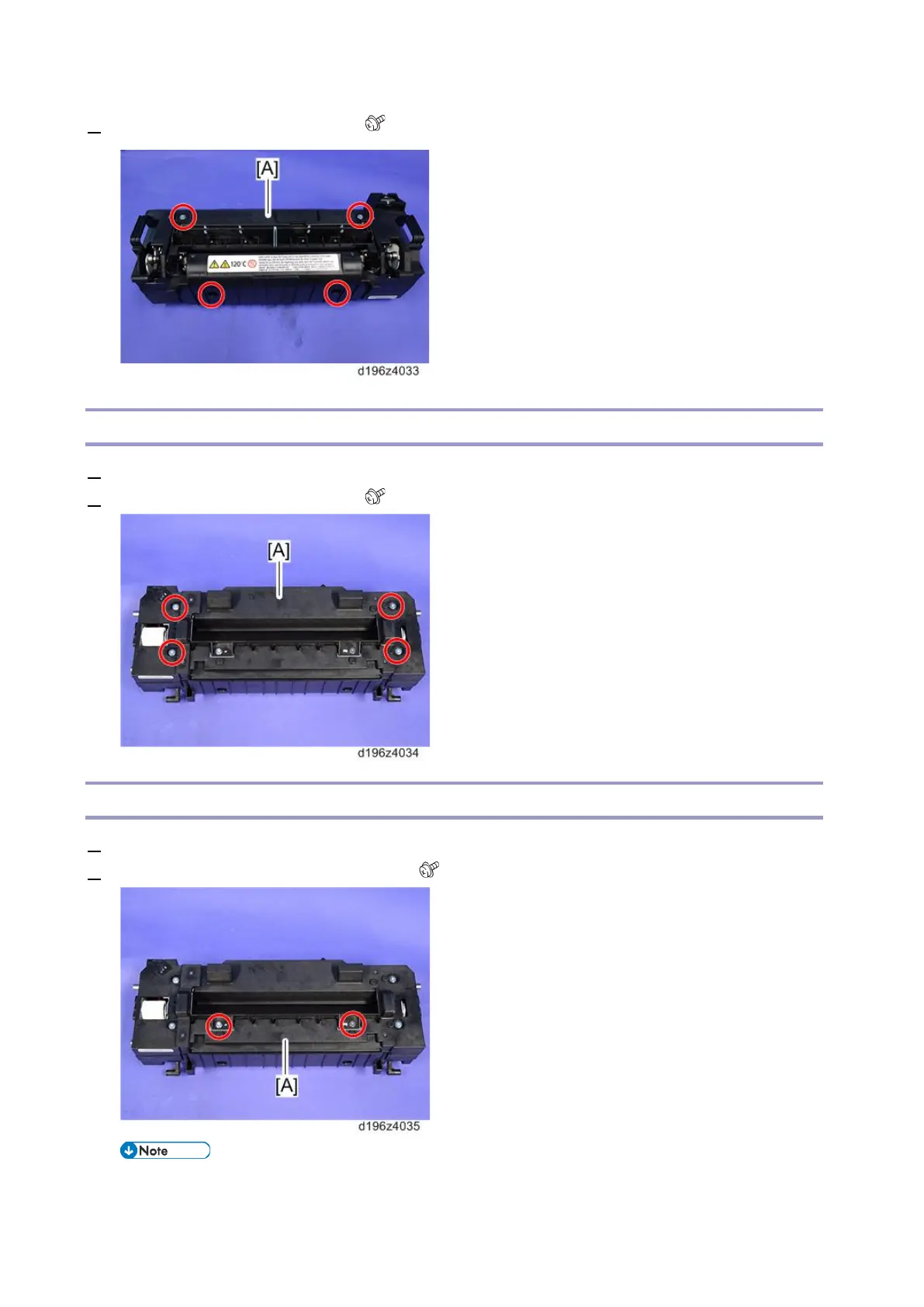

2. Remove the fusing upper cover [A]. ( × 4)
Fusing Lower Cover
1. Remove the fusing unit. (Fusing Unit)
2. Remove the fusing lower cover [A]. ( × 4)
Fusing Entrance Guide Plate
1. Remove the fusing unit. (Fusing Unit)
2. Remove the fusing entrance guide plate [A]. ( × 2)
• There are two screw holes for each screw on the entrance guide plate. Use the outer holes when
