Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP UPS1600 / UPS1100
20 Manual, 04.2017, A5E37775406-8-76
Connections and terminal designation
2.2.1
The input terminals ① can be used to establish the connection to the supply voltage. The
output terminals
② are used to connect to the supplied loads.
Cables must be used that are suitable for at least 90 °C (only for applications for UL508).
The UPS1100 battery modules are connected via BAT
③.
(see also Chapter Installation (Page 203))
Connections and terminal designations
(see Figure 2-1 SITOP UPS1600 design (example 6EP4136-3AB00-2AY0) (Page 17))
DC input IN+, IN-
One screw terminal each
DC output OUT+, OUT-
One screw terminal each
BAT+, BAT-
One screw terminal each
Signal connector
Connector with 14 screw terminals
PROFINET (Ethernet) connection
RJ45 plug-in contact (only for ...-2AY0)
USB connection
USB-B plug-in contact (only for...-1AY0)

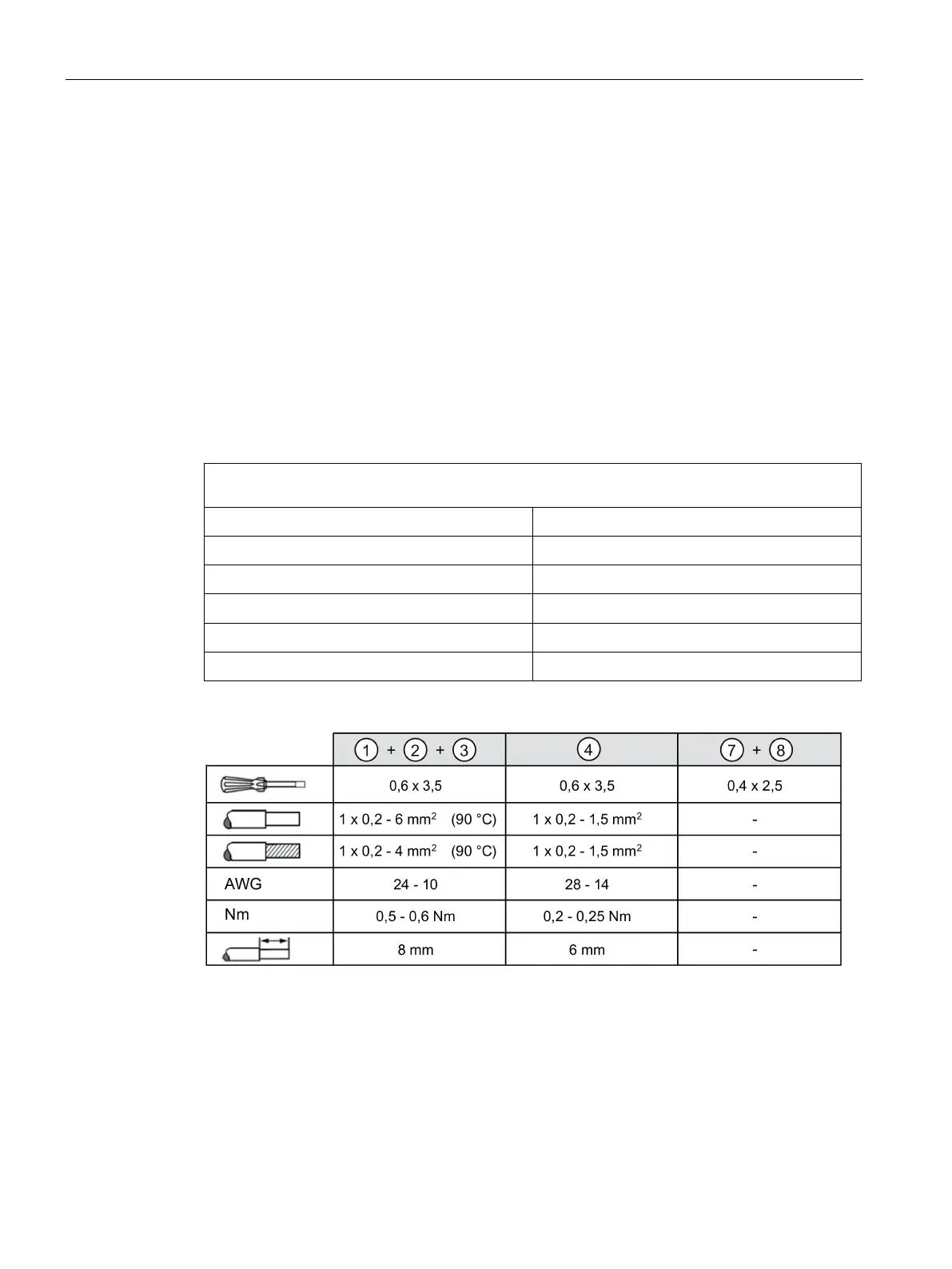

Figure 2-3 Terminal data SITOP UPS1600 10 A, 20 A
