Installation
7.3 Connecting the BAT SITOP UPS1600
SITOP UPS1600 / UPS1100
206 Manual, 04.2017, A5E37775406-8-76
Connecting the BAT SITOP UPS1600

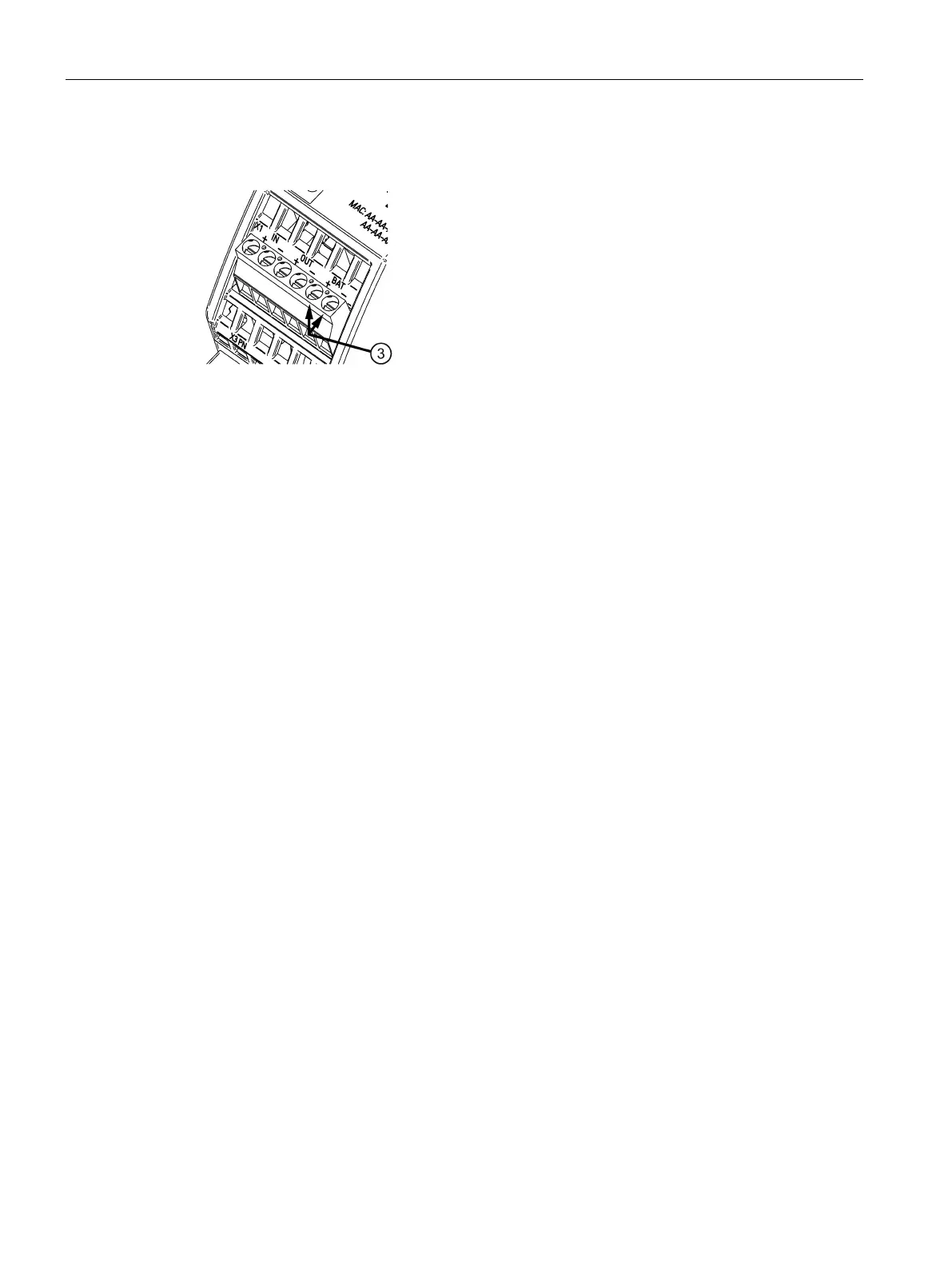

Figure 7-4 BAT connection
The "BAT+" and "BAT-" ③ connections (see Figure BAT connection (Page 206)) are used to
connect the SITOP UPS1600 with one or more SITOP UPS1100 battery modules. Ensure
that the cables are dimensioned correctly for the maximum output current rms value of the
SITOP UPS1600.
For wiring, see Figure Wiring (Page 204).
Cables must be used that are suitable for at least 90 °C (only for applications for UL508).
Maximum cable length 3 m
Maximum USB cable length 5 m
PROFINET/Ethernet connection
Maximum length of the PROFINET/Ethernet cable 100 m (90 m BASIC- Link plus 2 x 5 m
CHANNEL- Link)
