Siemens 6EP4134-3AB00-2AY0 User Manual

Description, device design, dimension drawing
2.4 Operating displays and signaling
SITOP UPS1600 / UPS1100
Manual, 04.2017, A5E37775406-8-76
31
2.4
Operating displays and signaling
2.4.1
SITOP UPS1600
2.4.1.1
LEDs
6EP4134-3AB00- ...
6EP4136-3AB00- ...
6EP4137-3AB00- ...
Status display
• Remark
LED 1: Operating mode DC-UPS
LED 2: Charge state
LED 3: Buffer readiness
LED 4: Battery test
LED 5: for PROFINET-specific diagnostic displays
LED 6: for PROFINET-specific diagnostic displays
LED 7: Connection status Ethernet port 1
LED 8: Connection status Ethernet port 2
LEDs 5 to 8 are only active for... -2AY0
LEDs
Labeling, just the same as at the housing
Description
LED 1
O.K./BAT.
Operating mode DC-UPS
LED 2
BAT. > 85 %
Charge state
LED 3
ALARM
Ready for buffering
LED 4
BAT. FAULT
Battery test
LED 5
SF
for PROFINET-specific diagnostic displays
LED 6
RUN
for PROFINET-specific diagnostic displays
LED 7
P2
Connection status Ethernet port 1
LED 8
P1
Connection status Ethernet port 2

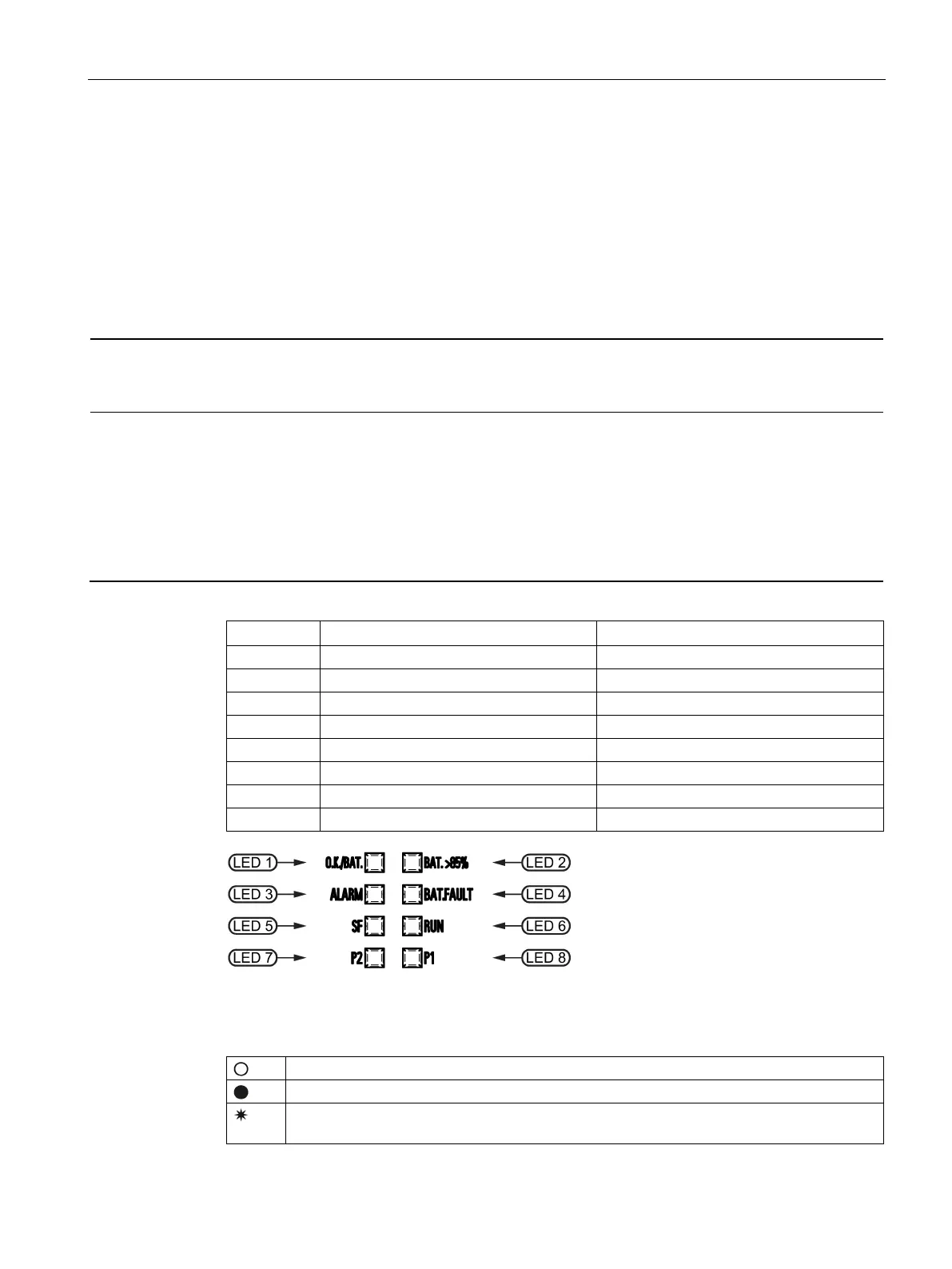

Figure 2-14 Operating displays
Legend:
LED off
LED lights up
0.5/3
LED flashes in the interval: 0.5 s on - 3 s off
