Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP UPS1600 / UPS1100
Manual, 04.2017, A5E37775406-8-76
23
PROFINET/Ethernet connection

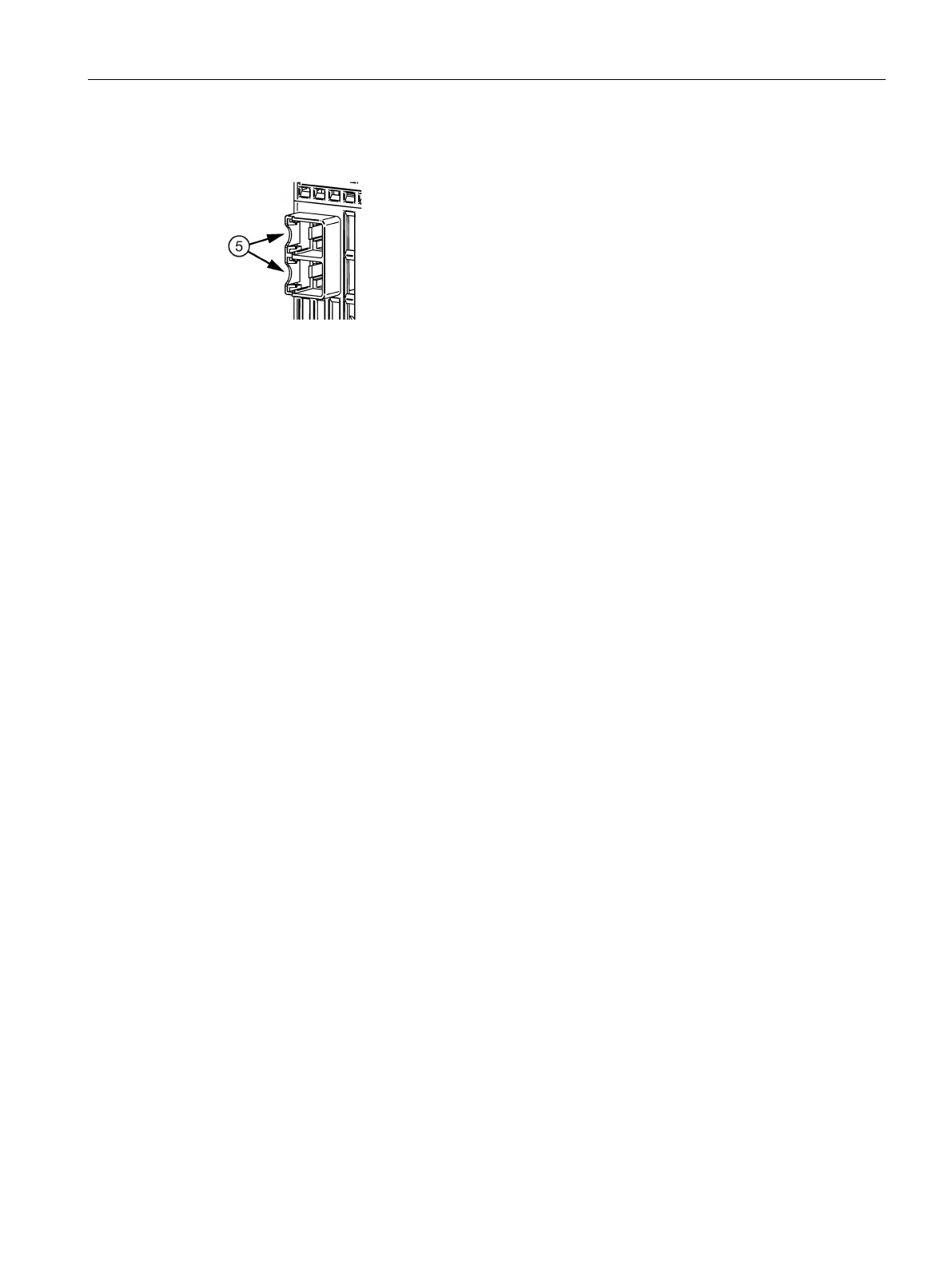

Figure 2-8 PROFINET/Ethernet connection
The Ethernet interface ⑤ corresponds to the standard full duplex up to 100 Mbit/s electrical
(100BASE-TX) according to IEEE 802.3..
Properties of the Ethernet interface:
● Transfer rate 10/100 Mbit/s
● Two RJ45 sockets, i.e. integrated switch, for RJ45 connector
● Cable type 100Base-TX (CAT5)
● Auto negotiation
● Auto crossover communication via TCP/IP and PROFINET
The strain relief (see Section PROFINET/Ethernet connector (Page 190)) is implemented
using a Siemens IE FastConnect RJ45.
The physics of the Ethernet interface is implemented so that PROFINET IO according to
standards IEC 61158 and IEC 61784-2 is possible. For PROFINET, conformance class B
must be maintained as a minimum.
The Ethernet/PROFINET interface permits:
● Configuration and monitoring using the SITOP UPS Manager
● Monitoring via the Web server
● Integration and communication of the DC-UPS with other automation components from
Siemens and the open environment, e.g. IPC, PLC, HMI, OPC UA
● Firmware update of the device via UPS Manager, web server or STEP 7
