Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP UPS1600 / UPS1100
Manual, 04.2017, A5E37775406-8-76
21

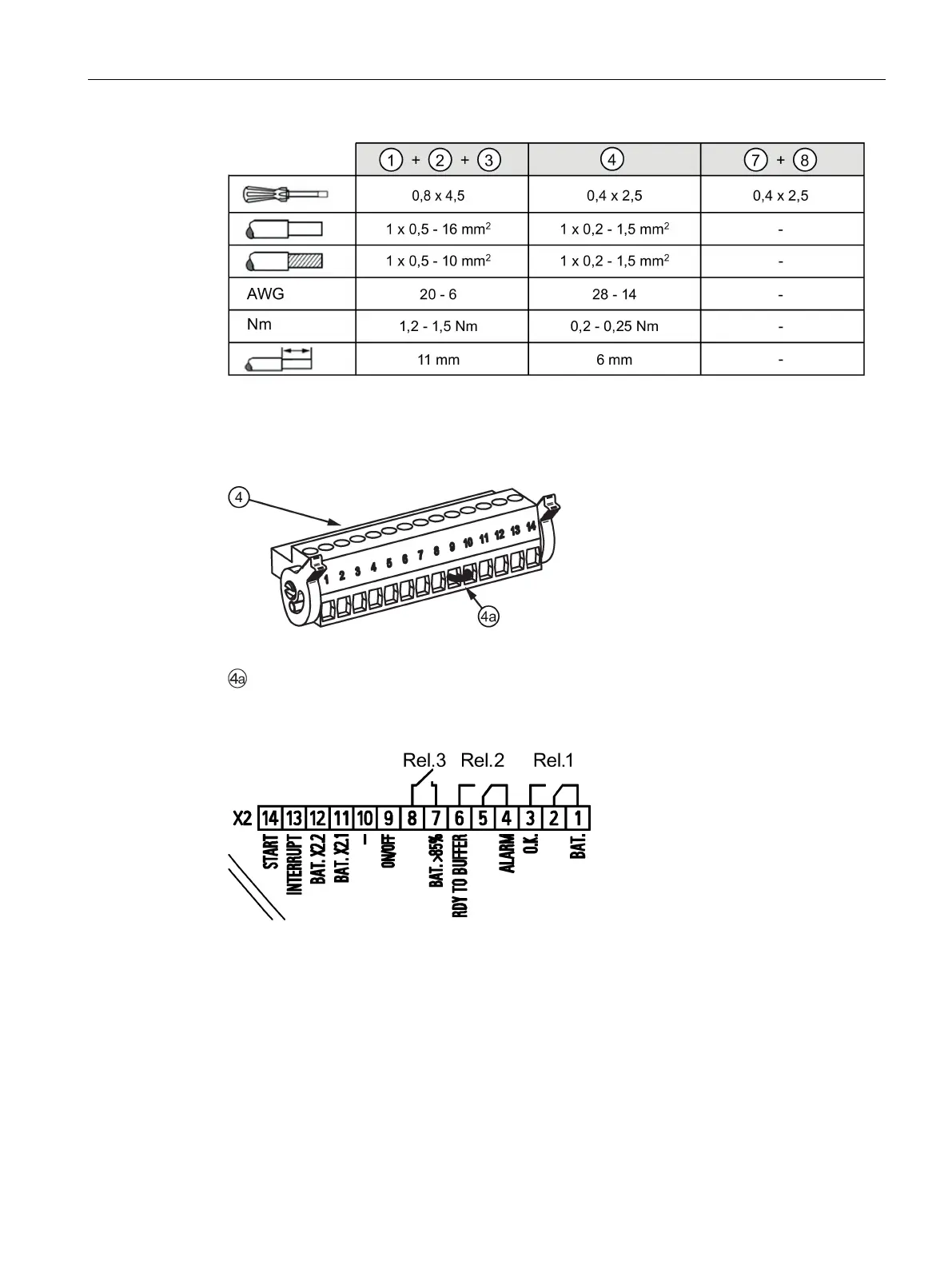

Figure 2-4 Terminal data SITOP UPS1600 40 A
2.2.1.2
Signal terminal
④
Signal connector
Wire jumper
Figure 2-5 Signal connector
Figure 2-6 Signal connector connection schematic
