3. Clear spigot 1
4. Contour blank 2
5. Contour spigot 2
6. Clear spigot 2
7. Contour blank 1
8. Contour spigot 1
9. Clear residual material spigot 1
10.Contour blank 2
11.Contour spigot 2
12.Clear residual material spigot 2
Software option
For removing residual material, you require the option "residual material detec‐
tion and machining".

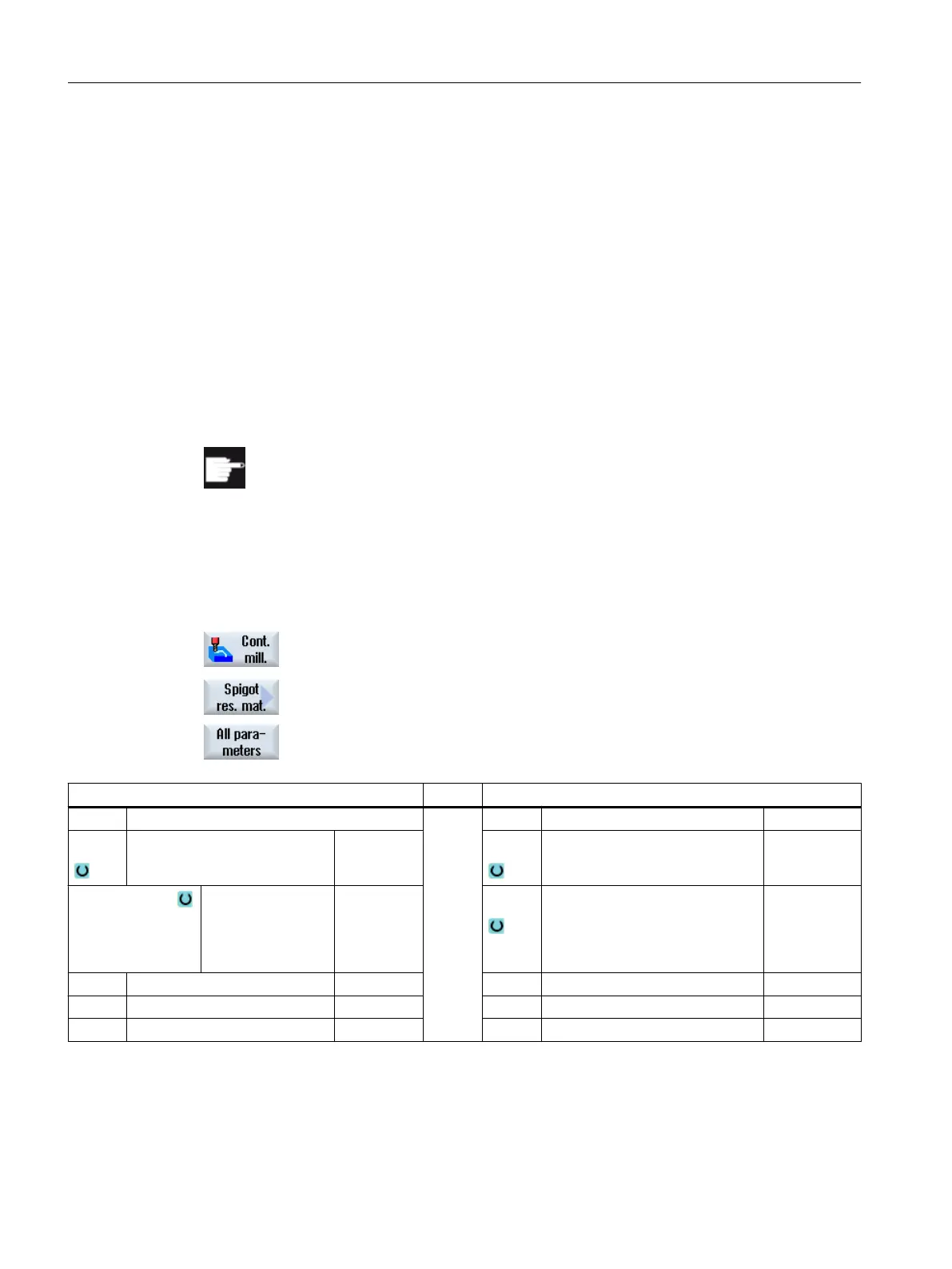

Procedure
1. The part program or ShopMill program to be processed has been created
and you are in the editor.
2. Press the "Contour milling" and "Spigot Res. Mat." softkeys.
The "Spigot Res. Mat." input window opens.
3. For the ShopMill program, press the "All parameters" softkey if you want
to enter additional parameters.
Parameters, G code program Parameters, ShopMill program
PRG Name of the program to be generated T Tool name
PL Machining plane F Feedrate mm/min
mm/tooth
Milling direction
● Synchronous
operation
● Up-cut
operation
S / V Spindle speed or constant cutting
rate
rpm
m/min
RP Retraction plane mm
SC Safety clearance mm
F Feedrate mm/min
Programming technological functions (cycles)
10.3 Contour milling
Milling
512 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
