SIRIUS 3RT2 contactors/contactor assemblies
2.7 Accessories
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
189
2.7.8 Control kit for manual operation of contactor contacts
2.7.8.1 Description
The 3RT2916-4MC00 control kit is a tool used for operating (closing) the auxiliary contacts of
the 3RT201 power contactors (size S00) manually during commissioning (load-free
switching). The module is used to check the wiring and the motor direction of rotation under
conditions of short-circuit protection.
2.7.8.2 Mounting
CAUTION
Disconnect the contactor from the power supply before you attach or remove the control kit.
Only use the control kit for test purposes during commissioning.

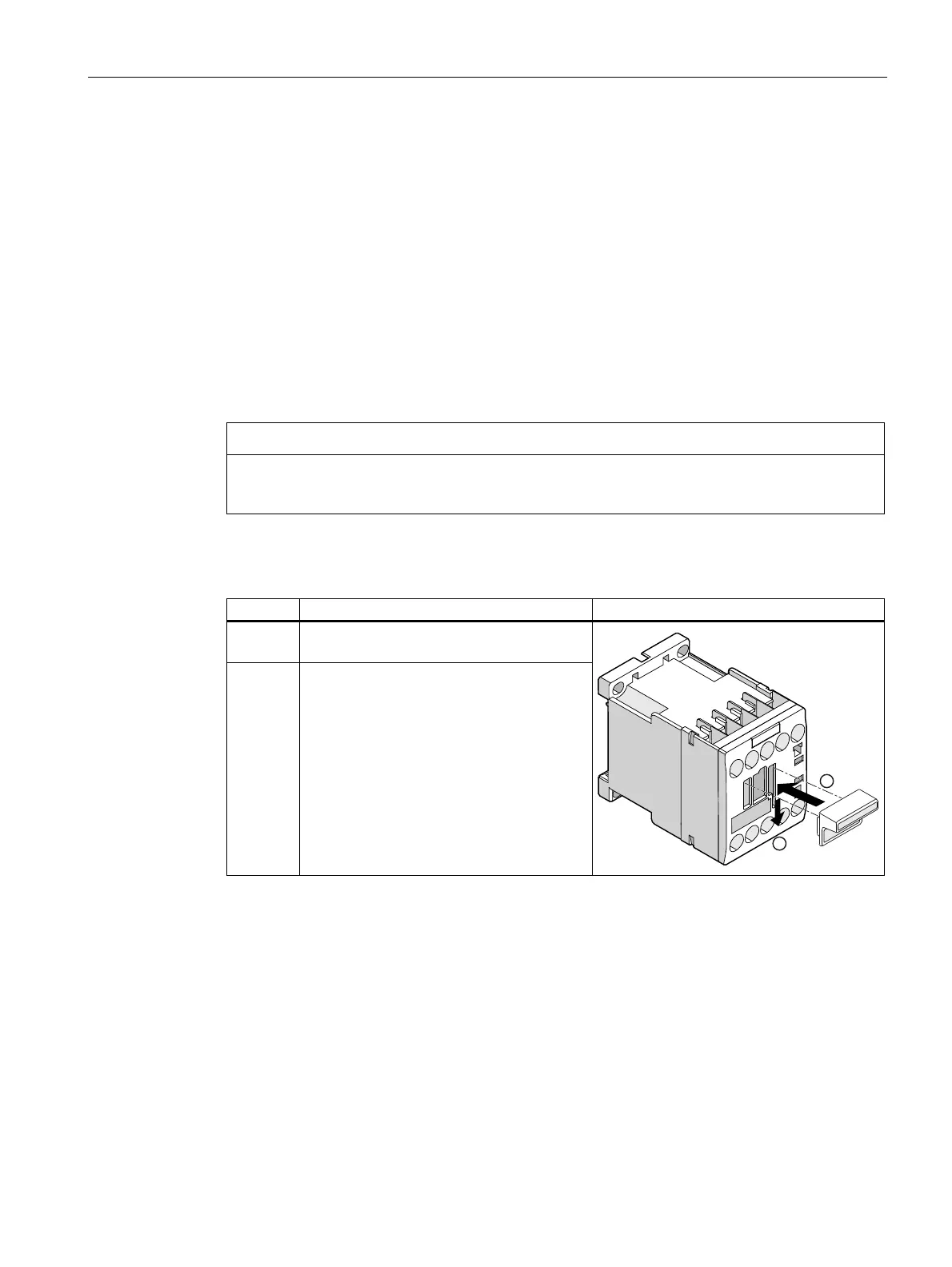

Table 2- 42 Mounting the control kit
Step Operating instruction Image
1 Attach the control kit to the contactor from
the front.
2 Press the control kit down until it engages.


