SIRIUS 3RV2 motor starter protectors
4.6 Mounting
SIRIUS Innovations
402 System Manual, 01/2011, A8E56203870002-03
4.6.1.2 Mounting
Mounting options
The motor starter protectors are mounted by
● Snapping them onto a 35 mm DIN rail conforming to DIN EN 60715 or
● Screwing them to a base plate
Mounting
3RV2928-0B
DIN EN 60715
① Mounting on a DIN rail
② Mounting on base plate

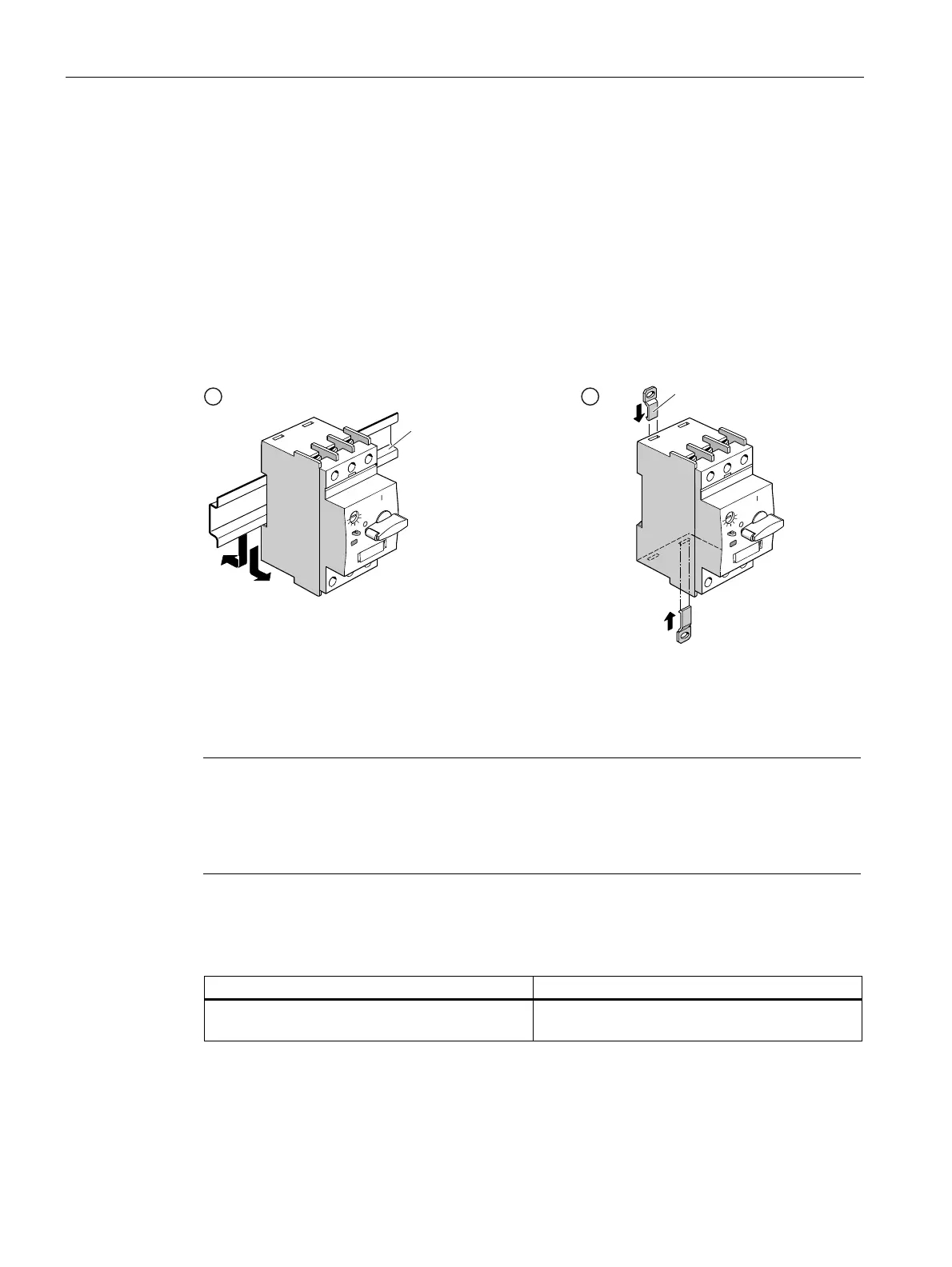

Figure 4-4 Motor starter protector mounting
Note
Push-in lugs
The motor starter protectors can be mounted on a level surface with 2 screws. In the case of
size S00 and S0 motor starter protectors, 2 push-in lugs (3RV2928-0B) (supplied in packs of
10) are also required.
Reference
More information ... Can be found in the chapter titled ...
About the drilling plan Dimension drawings for 3RV2 motor starter
protectors (Page 478)
