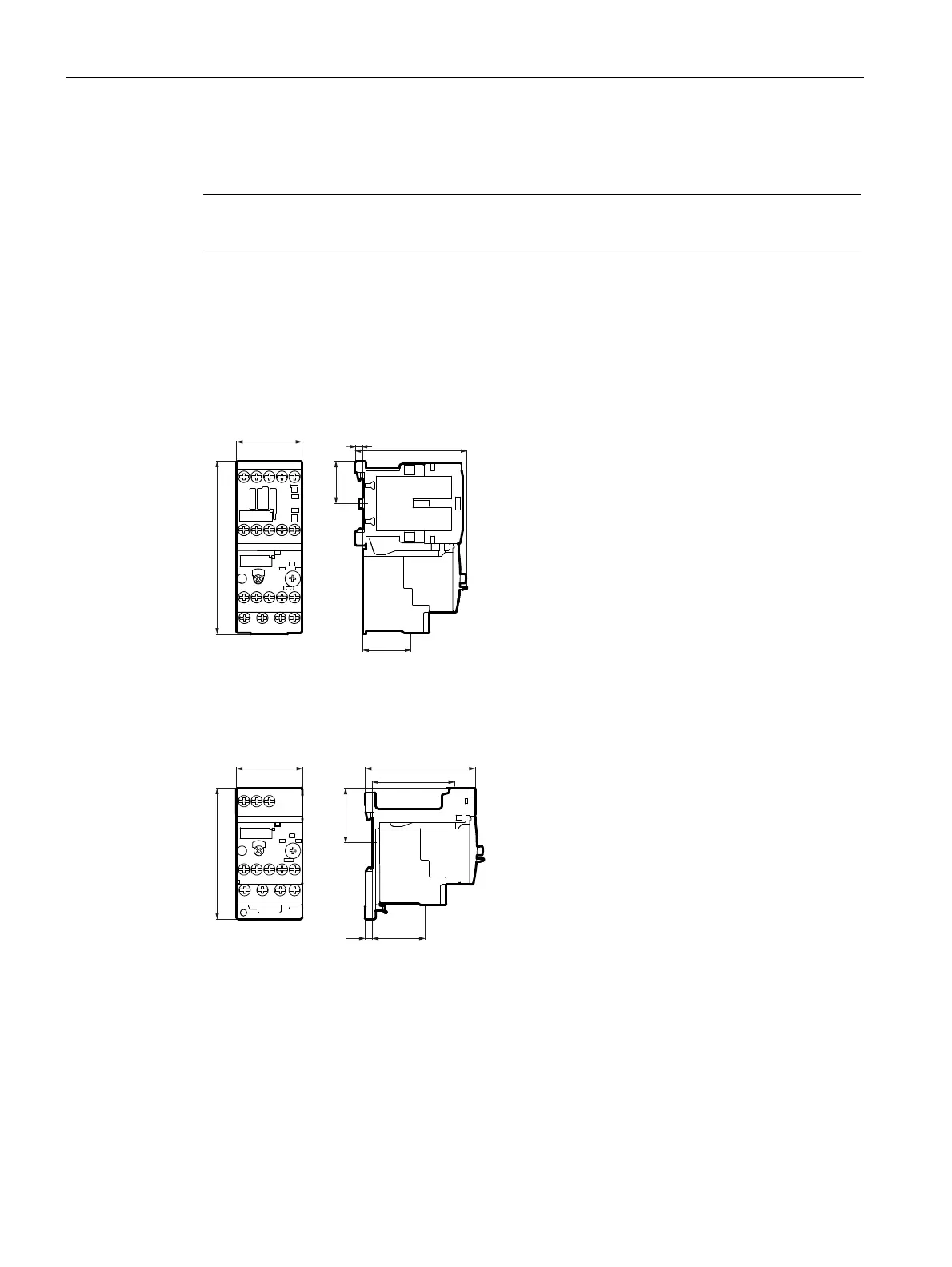

SIRIUS 3RU2/3RB3 overload relays
5.11 Dimension drawings (dimensions in mm)
SIRIUS Innovations
552 System Manual, 01/2011, A8E56203870002-03
5.11 Dimension drawings (dimensions in mm)
Note
All dimensions are specified in mm.
5.11.1 Dimension drawings for 3RU21 thermal overload relays
3RU2116-..B0 (S00)
76
5
29
33
45
118
Figure 5-7 3RU2116-..B0
3RU2116-4.B1 (S00)
75
5
37
56
36
45
89
Figure 5-8 3RU2116-4.B1
