SIRIUS 3RU2/3RB3 overload relays
5.9 Accessories
SIRIUS Innovations
532 System Manual, 01/2011, A8E56203870002-03
5.9.5.3 Mounting/Disassembly
The figure below shows how to assemble the electrical remote RESET module based on the
example of size S0.

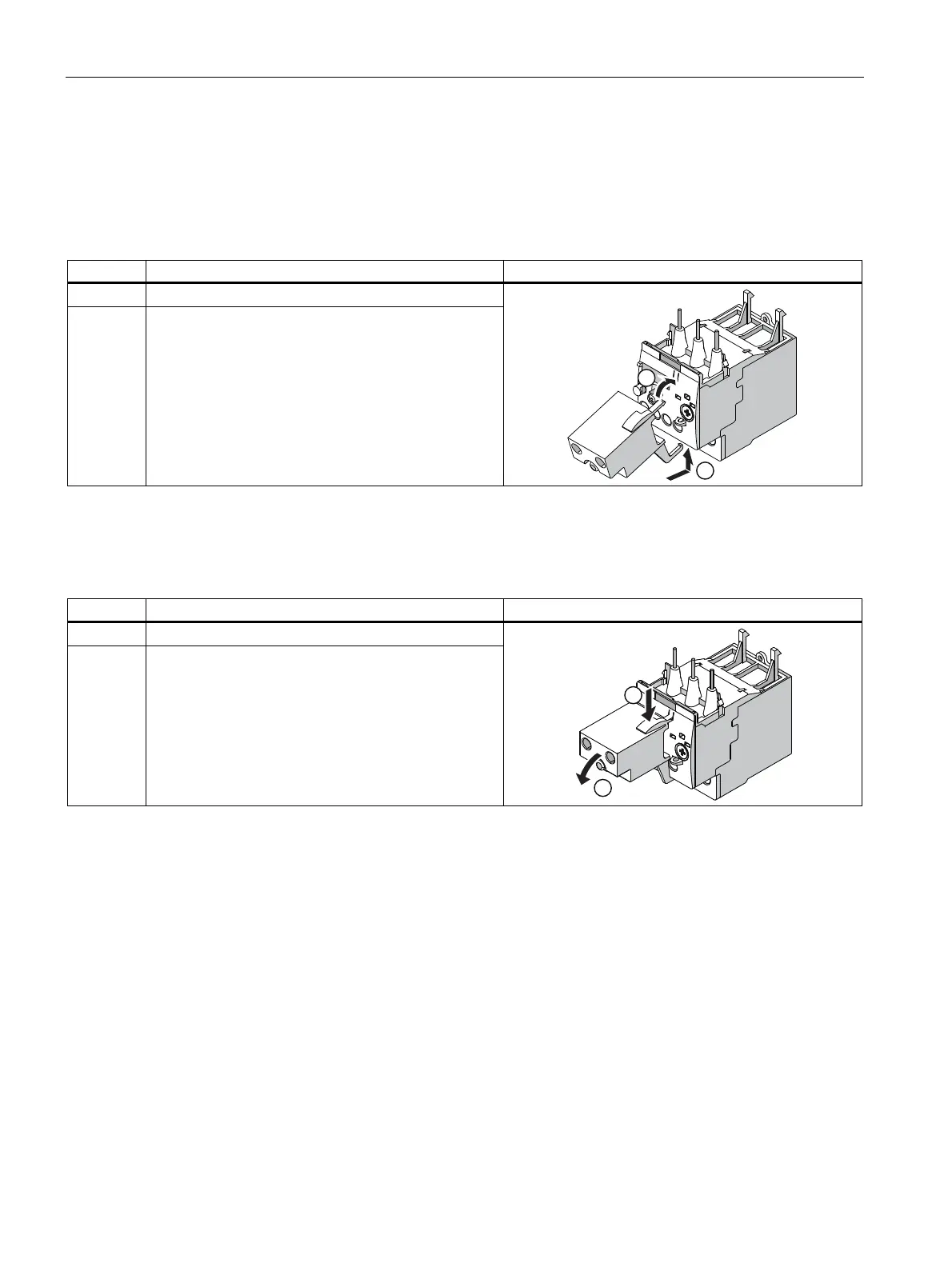

Table 5- 29 Mounting the electrical remote RESET module on the thermal overload relay
Step Operating instruction Figure
1 Attach the hook to the designated opening.
2 Fold the module up so that the locking latch snaps
into the overload relay.


Disassembly
Table 5- 30 Disassembling the electrical remote RESET module from the thermal overload relay
Step Operating instruction Figure
1 Press the locking latch down.
2 Tilt the module toward you and take it off the overload
relay.


