SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
442 System Manual, 01/2011, A8E56203870002-03
4.9.12.3 Mounting
Prerequisites
DANGER
Hazardous voltage!
Electrical voltage can cause electric shocks or burns.
Before starting work, disconnect the systems and devices from the power supply.
Adjusting the 8US busbar adapter for the busbar system
The busbar adapter can be adjusted to suit the following busbar thicknesses:
● 5 mm (delivery condition)
● 10 mm

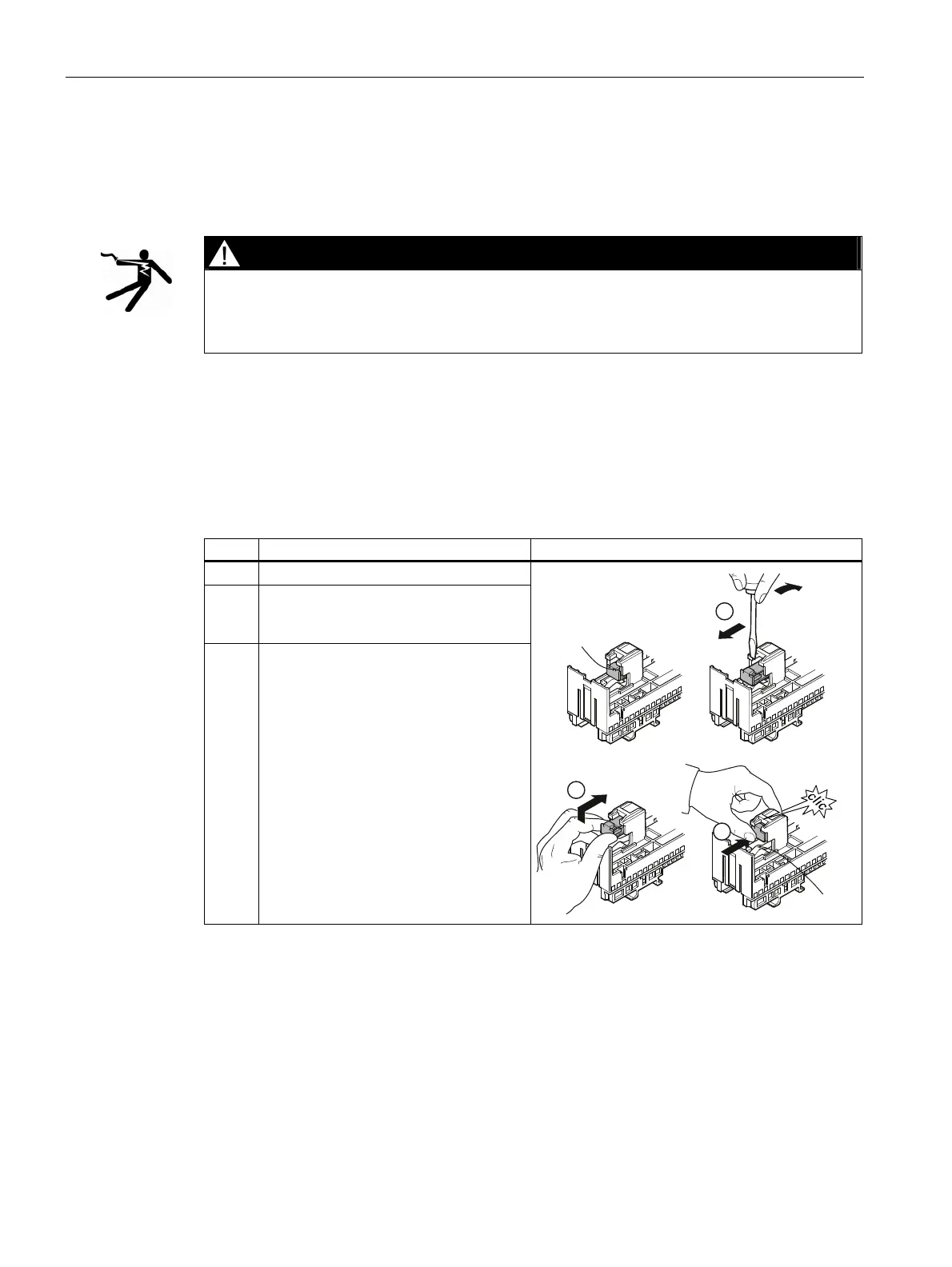

Step Operating instruction Figure
1 Push the 3 fastening blocks down.
2 Adjust the fastening blocks in
accordance with the busbar thickness
(5 mm/10 mm).
3 Push the fastening blocks up until they
engage.
5 mm
10 mm
