SIRIUS 3RF34 solid-state switching devices
3.7 Mounting
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
343

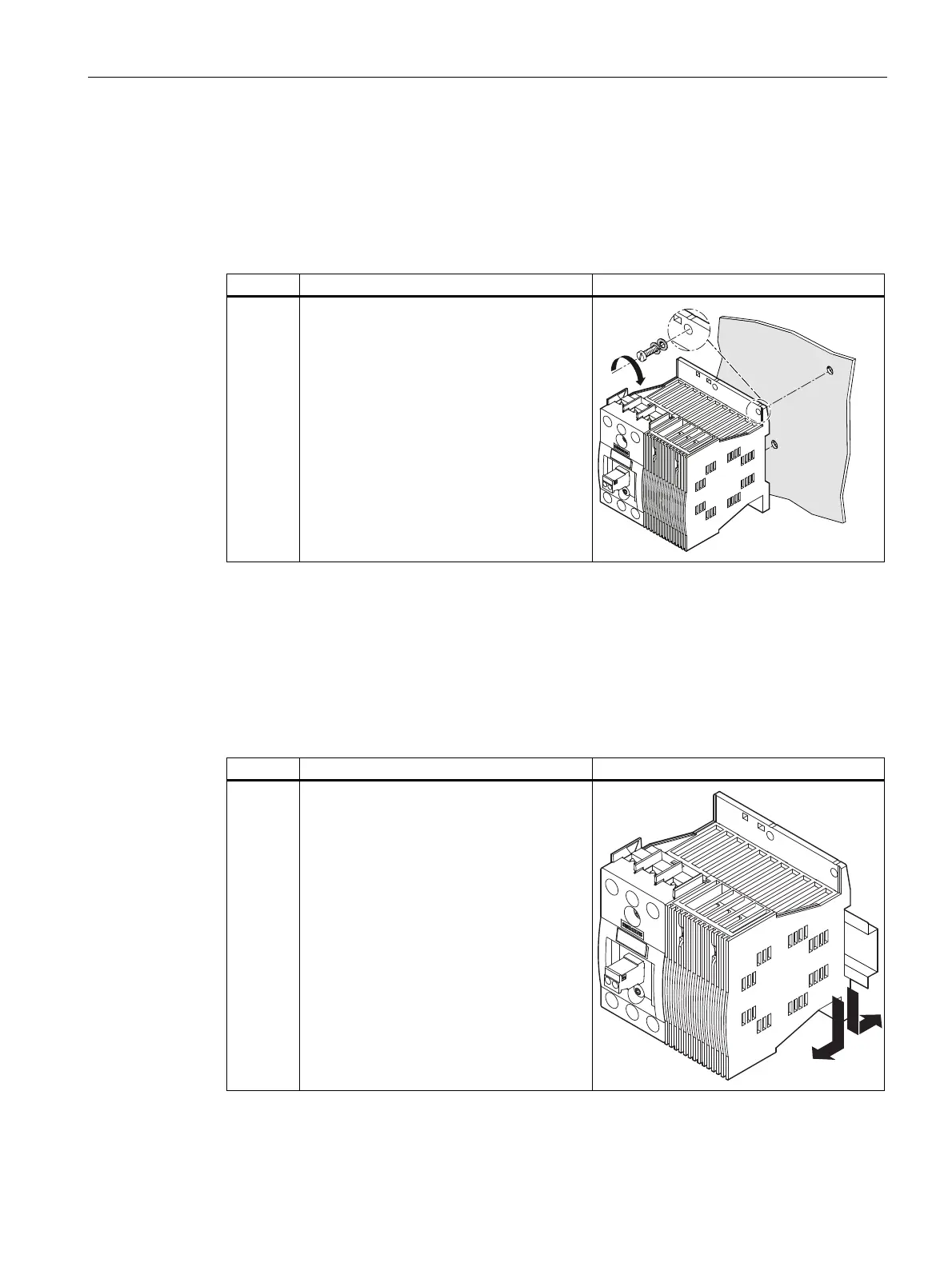

3.7.2 Screw mounting
Screw mounting
Table 3- 17 Mounting (solid-state switching devices)
Step Operating instruction Figure
1 Using two M4 screws (maximum tightening
torque 1.5 Nm), plain washers, and spring
washers, screw the solid-state contactor
tight into the designated drill holes
diagonally.
3.7.3 Snapping onto/off DIN rail (snap-on mounting)
Snapping onto DIN rail
Table 3- 18 Mounting (solid-state switching devices)
Step Operating instruction Figure
1 Position the device on the top edge of the
DIN rail and press down until it snaps onto
the bottom edge of the DIN rail.
