SIRIUS 3RF34 solid-state switching devices
3.2 Product description
SIRIUS Innovations
322 System Manual, 01/2011, A8E56203870002-03
3.2.5 Device labels
Device labels
/ / /
7 7 7
SIRIUS
9
$
'&
$
5)%%
*(
1 Labeling to identify the main circuit terminals infeed/line side
2 SIRIUS (device group)
3 Production date/Product version
4 Labeling to identify the main circuit terminals outgoing feeder motor/load side
5 Order designation
6 Labeling to identify the control circuit terminals and indication of the control voltage
(See also the diagrams below, "Labeling on solid-state contactors, zoom view".)
7 Circuit diagram

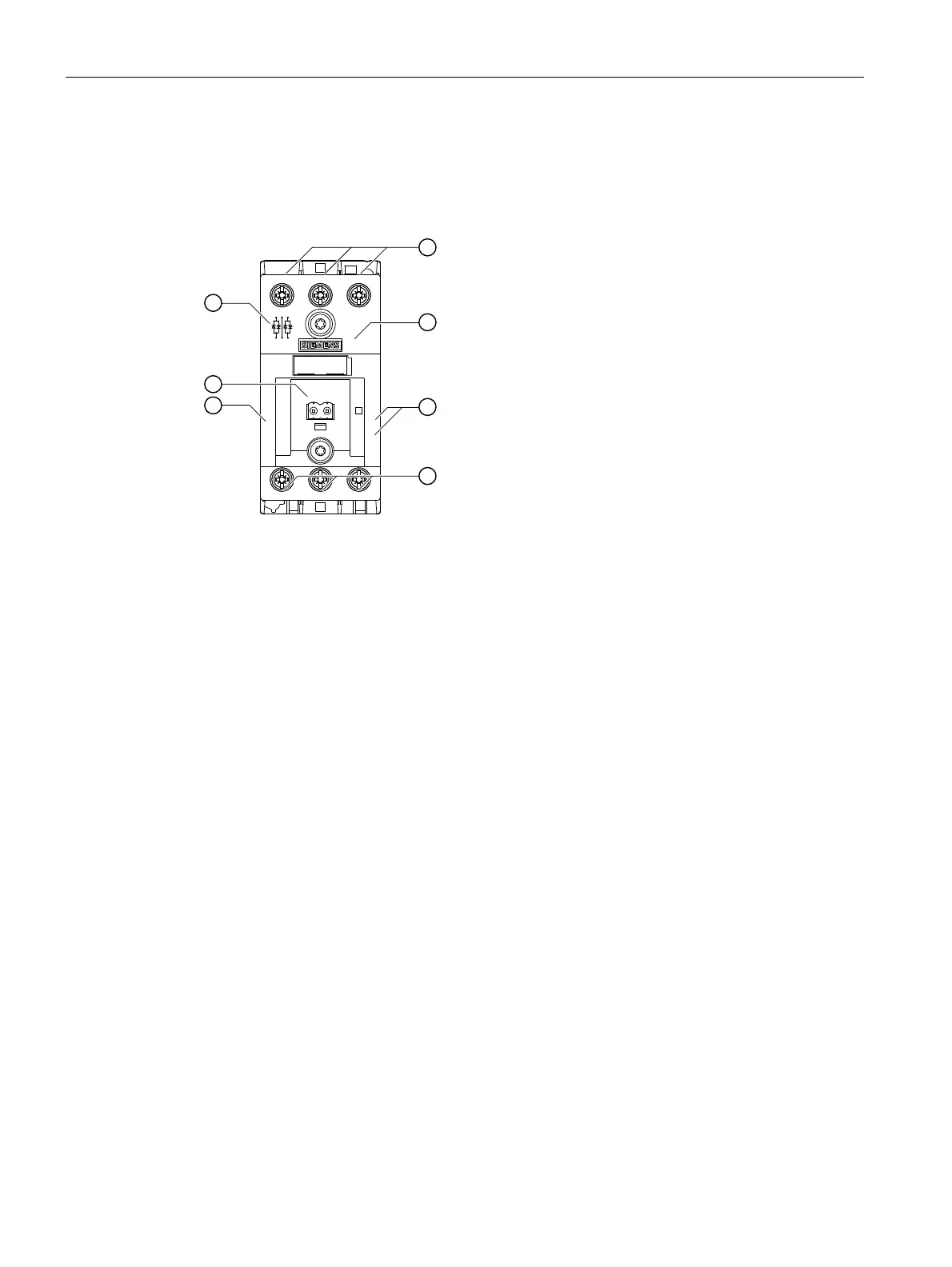

Figure 3-3 Labeling to identify solid-state contactors with screw-type connection system
