1.7.4.2 SIRIUS 3RA6 compact starters
3RA6 compact starter

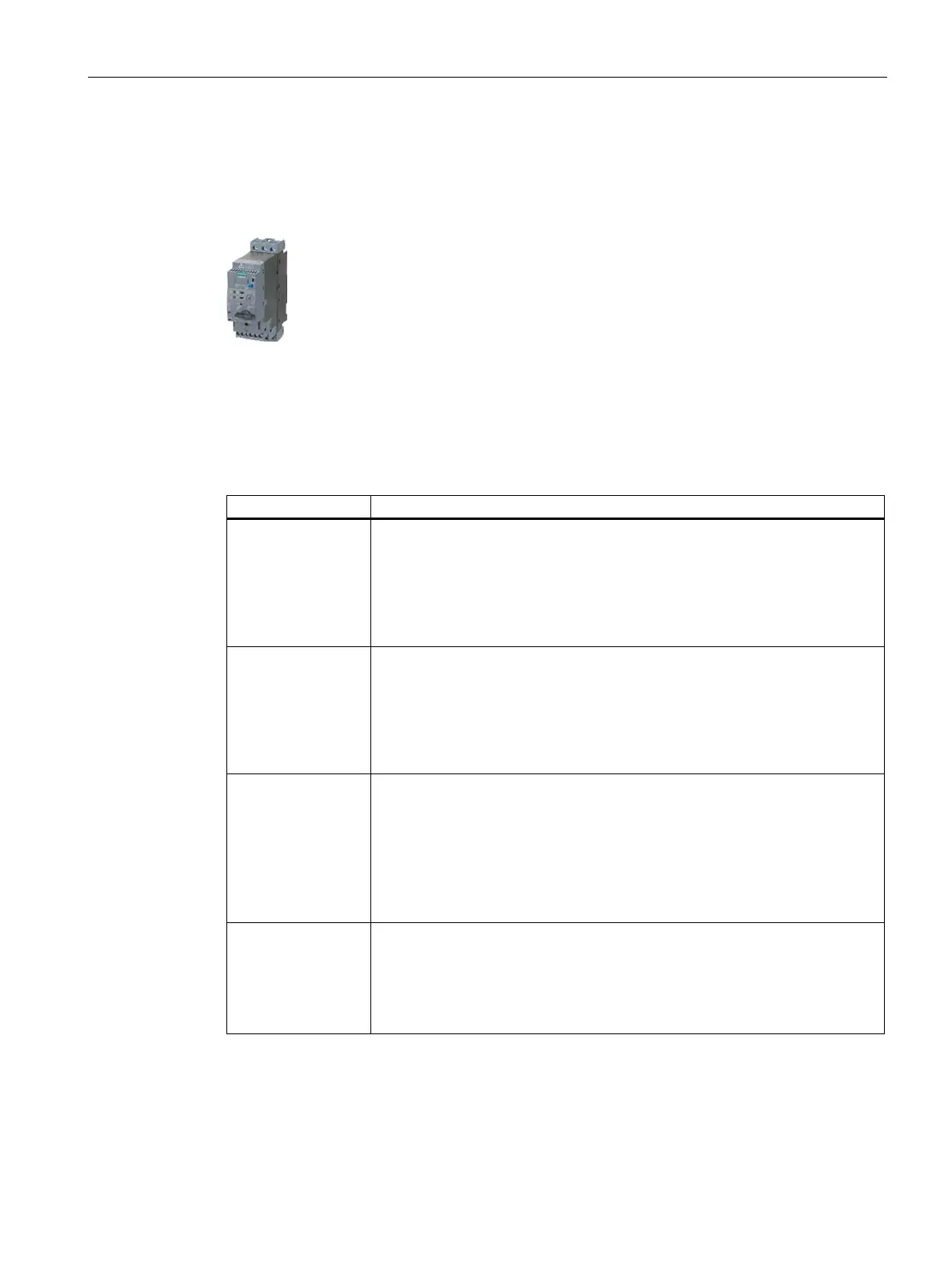

Figure 1-28 Compact starter
The SIRIUS 3RA6 compact starter is a compact, highly integrated device which features
state-of-the-art controls, including practical diagnostics functions. The compact starter
ensures improved efficiency and reliability in the control cabinet.
Table 1- 16 3RA6 compact starters
Area Customer benefits
Functions
 Direct-on-line starter and reversing starter
 Short-circuit protection, electronic overload protection, functional switching,
and line protection
 Mechanical and electrical interlock with reversing starter
 IO-Link and AS-i connection
 Manual and automatic reset (remote reset via control)
Dimensioning and
design
 S0 (0.1 up to 32 A/15 kW)
 Width of 45 mm (direct-on-line starter) or 90 mm (reversing starter)
 5 setting ranges from 0.1 A to 32 A
 Weld-free contacts (end-of-service-life indication)
 Screw-type and spring-loaded connection systems with removable
terminals in the main and auxiliary circuits
Mounting
advantages
 SIRIUS 3RA68 infeed system for simpler, space-saving installation
 Connection of cables up to 70 mm²
 Coding and locking options in the 3RA6 compact starter
 Screw-type and spring-loaded terminals
 Removable terminals for easy and quick replacement if service is required
(permanent wiring)
 Optional control kit for testing the main current path
Application
areas/customer
benefits
 Integrated diagnostics functions
 Large wide voltage ranges and wide setting ranges
 Three different power infeed options
 Comprehensive approvals for global applicability
 Fast and standardized configuration thanks to full integration in STEP 7
