4.9.4.4 Operation and diagnostics
Overview
The signaling switch supplies two signals:
● A tripped signal (short circuit, overload or tripping by shunt release)
● A short-circuit signal (short circuit only)
Signaling switch display

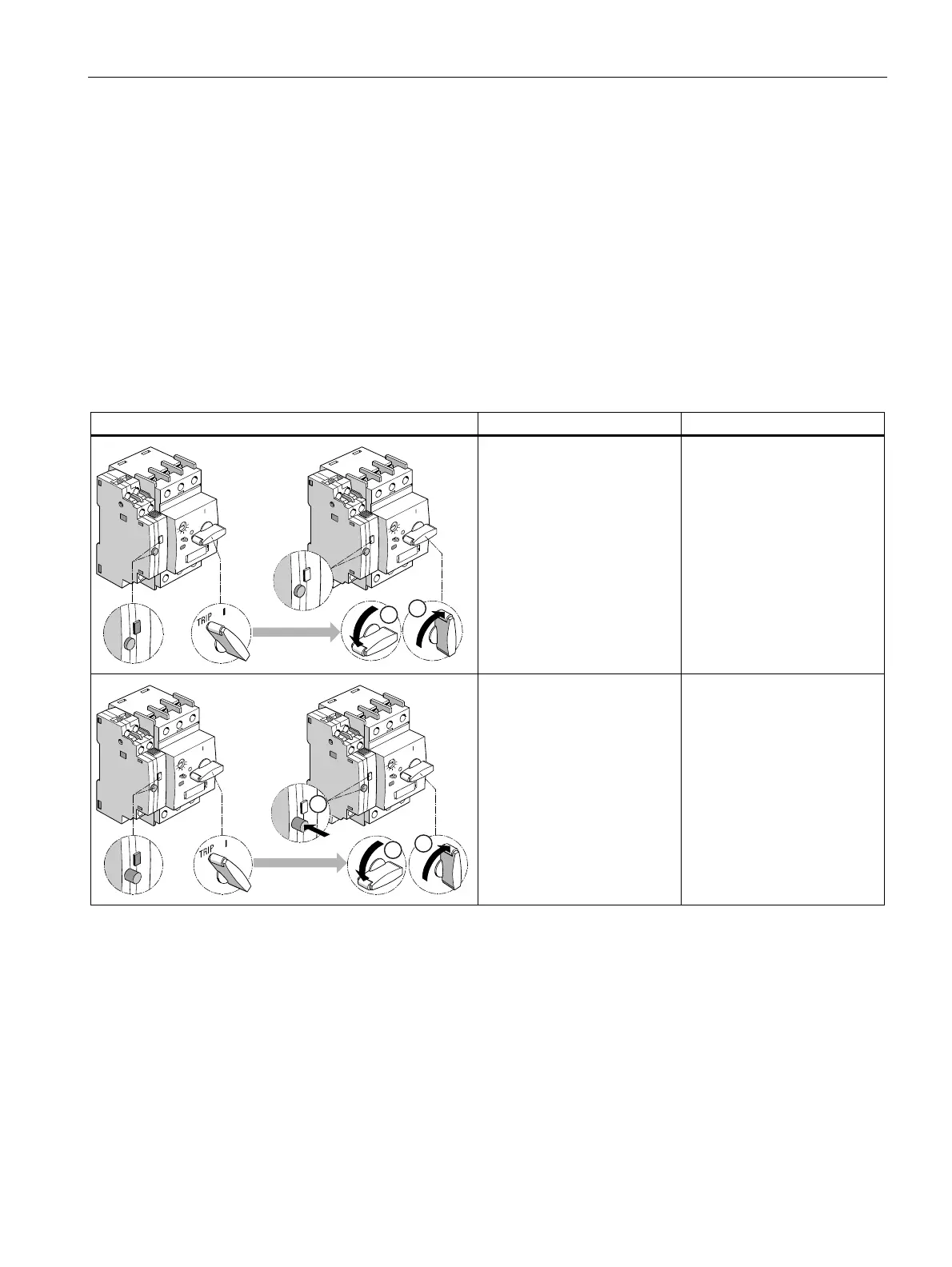

Table 4- 15 Signaling switch with tripped and short-circuit signal
Figure State Procedure


Tripped signal
 Motor starter protector
– In tripped setting
 Signaling switch
– Display is red
– RESET button (blue)
remains pressed down
Open (move to O) and then
reclose (move to I) the motor
starter protector.



Short-circuit signal
 Motor starter protector
– In tripped setting
 Signaling switch
– Display is red
– RESET button (blue)
is not pressed down
Press the RESET button
(blue) on the signaling switch,
then open the motor starter
protector (move to O) before
reclosing it (move to I).
