SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
426 System Manual, 01/2011, A8E56203870002-03
4.9.8.3 Operating the door-coupling rotary operating mechanism
Opening the door
The following table shows how to open the control cabinet door with the door-coupling rotary
operating mechanism:

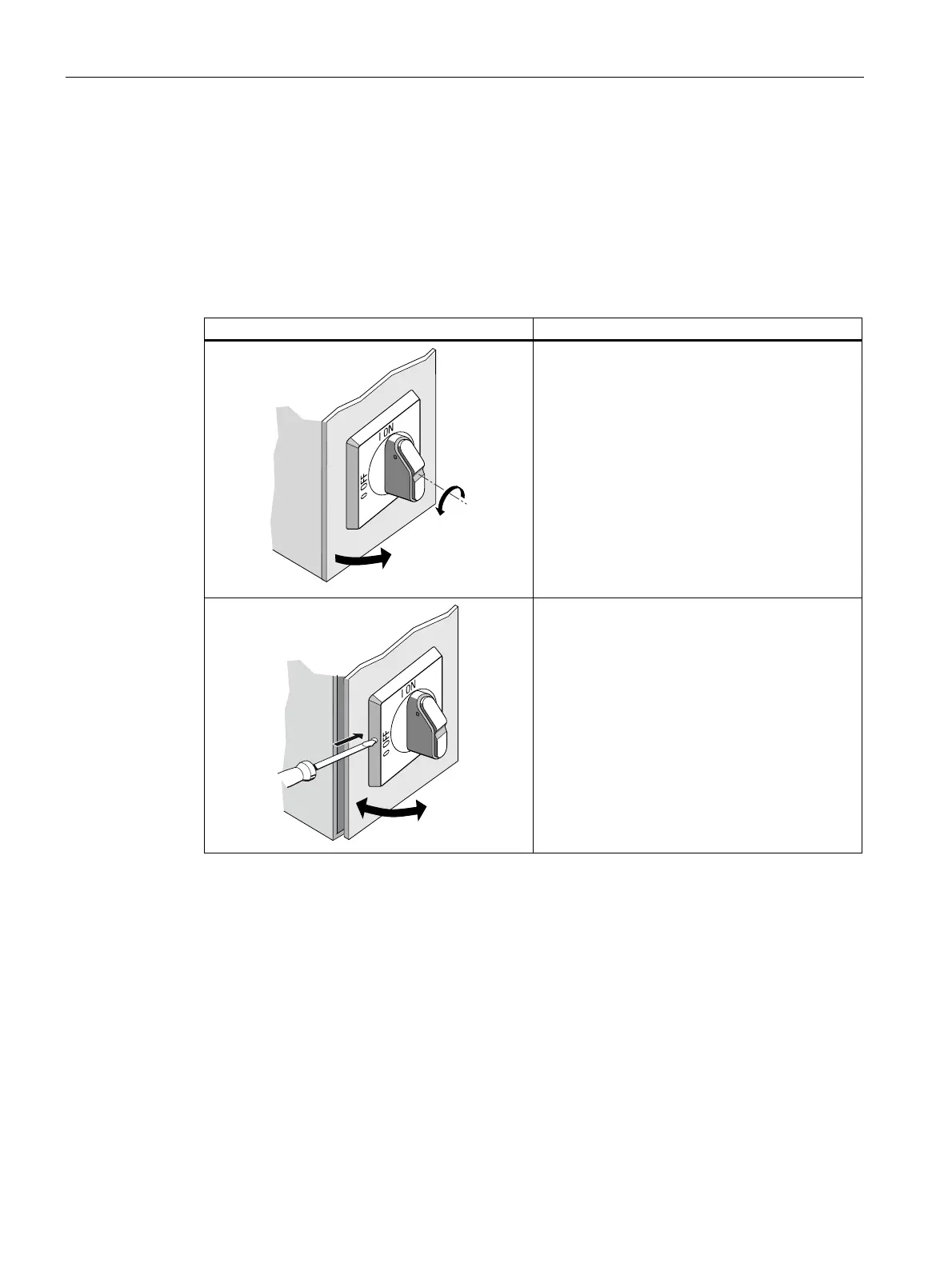

Table 4- 24 Opening control cabinet doors with door-coupling rotary operating mechanism
Diagram Procedure
2
1
To open the control cabinet door, set the motor
starter protector to O (OFF). This will release the
extension shaft from the rotary operating
mechanism so that you can open the door.
2
1
If you need to open the control cabinet door
during operation, press the knob next to the
rotary knob to "override" the interlock (Step 1).
To close the door during operation, press this
knob again so that the extension shaft can re-
engage.
