SIRIUS 3RT2 contactors/contactor assemblies
2.7 Accessories
SIRIUS Innovations
196 System Manual, 01/2011, A8E56203870002-03
2.7.12.2 Mounting
Below is an example of how to mount the 3RT2926-4RA11 coil terminal module (coil
terminal from above) onto a 3RT2 power contactor of size S0.

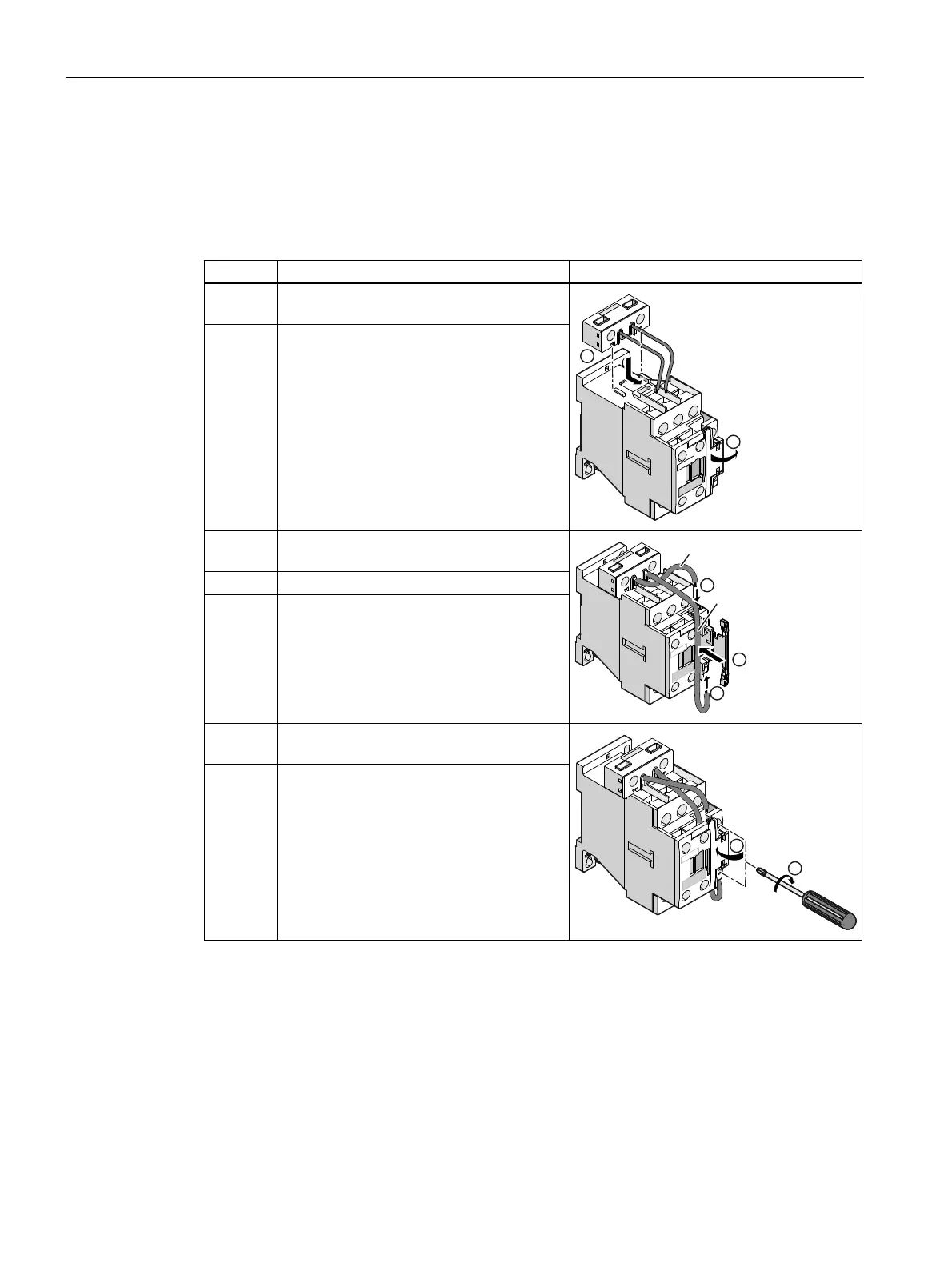

Table 2- 47 Mounting the coil terminal module
Step Operating instruction Image
1 Attach the coil terminal module onto the
contactor from above until it engages.
2 Open the cover on the front panel of the
contactor.


3 Thread the conductor from above into coil
terminal A1 of the contactor.
4 Lay the conductor in the cable duct.
5 Thread the conductor from below into coil
terminal A2 of the contactor.



$
$
6 Close the cover on the front panel of the
contactor.
7 Screw the conductors tight with a
screwdriver.


