SIRIUS 3RA28 function modules for mounting on 3RT2 contactors
7.6 Mounting
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
665
7.6.4 Disassembly
7.6.4.1 Function modules for direct-on-line start (solid-state timing relay with semiconductor
output/solid-state time-delay auxiliary switch)
DANGER
Hazardous Voltage
Will Cause Death, Serious Injury or Property Damage
Turn off and lock out all power supplying this device before working on this device.

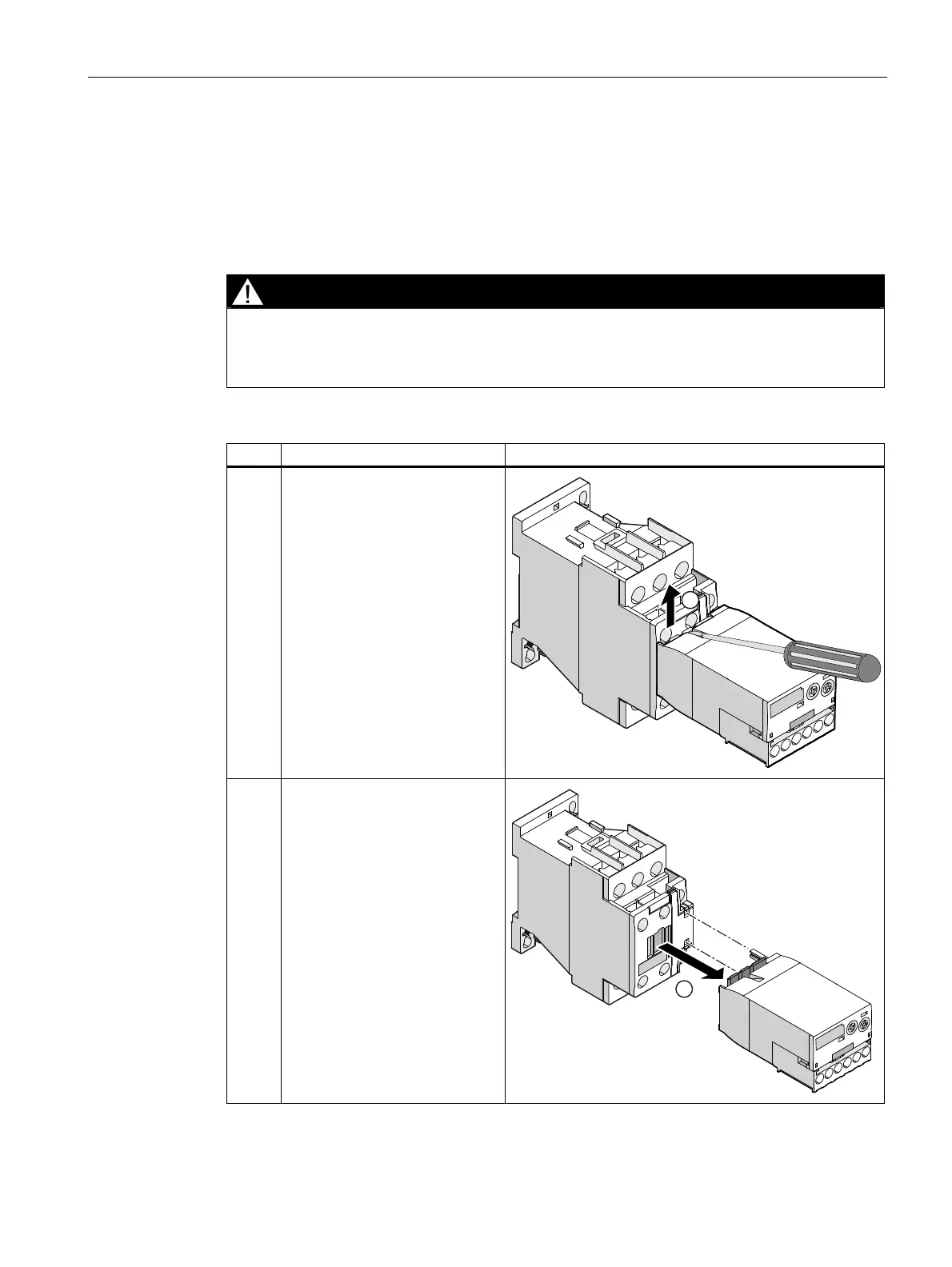

Step Operating instruction Figure
1 Push the interlock slide up with a
screwdriver.

2 Pull the function module toward
you and away from the
contactor.

