SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
418 System Manual, 01/2011, A8E56203870002-03

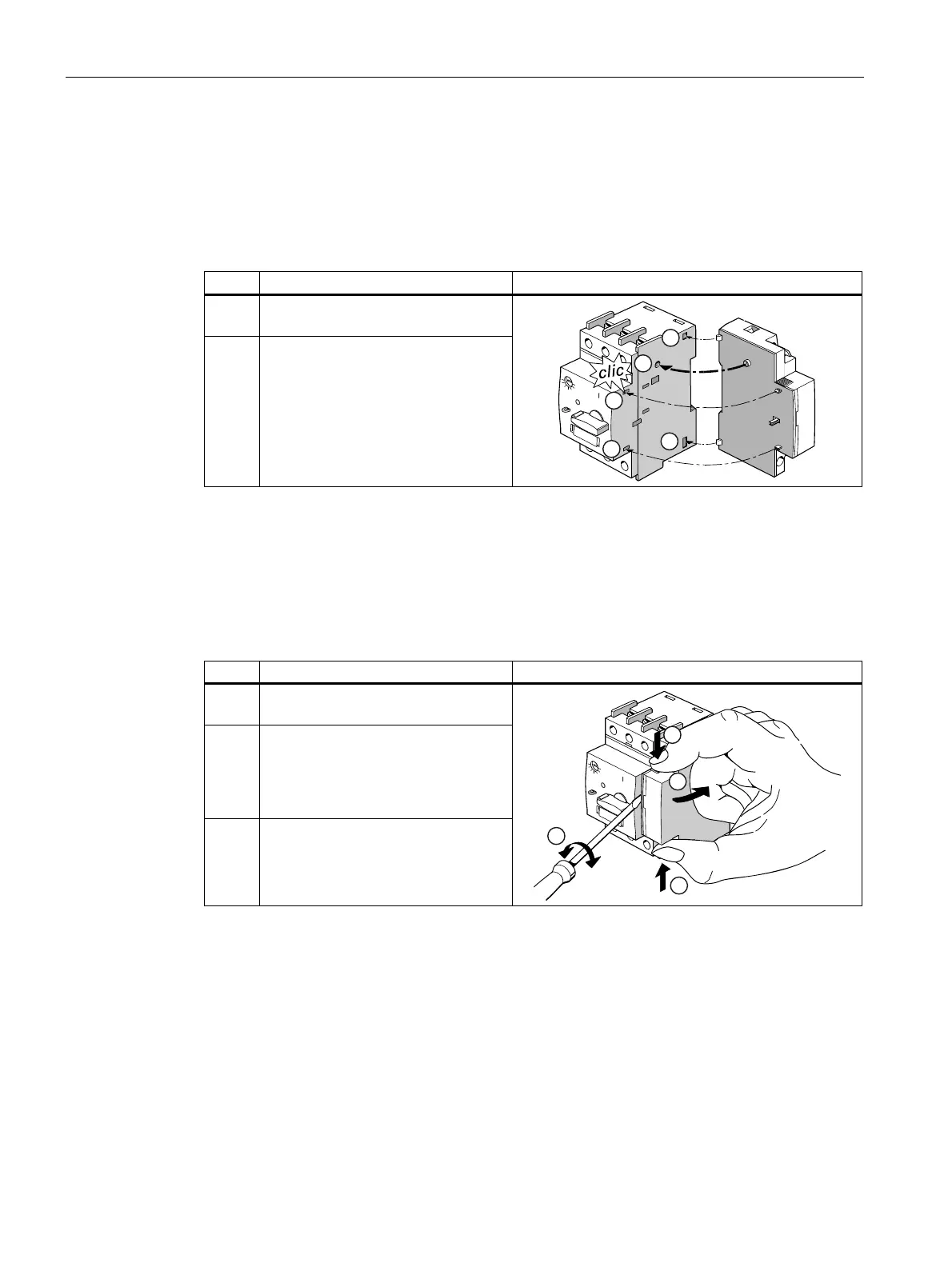

4.9.5.3 Mounting
Mounting the shunt release
Table 4- 18 Mounting a shunt release
Step Operating instruction Figure
1 Attach the shunt release to the rear of
the motor starter protector.
2 Press the shunt release to the motor
starter protector until you hear it
engage.





4.9.5.4 Disassembly
Disassembling the shunt release
Table 4- 19 Disassembling a shunt release
Step Operating instruction Figure
1 Press the clips on the top and bottom
of the shunt release together.
2 Run a screwdriver between the shunt
release and the motor starter
protector. Dislodge the shunt release
from the motor starter protector by
carefully turning the screwdriver.
3 Remove the shunt release from the
side of the motor starter protector.




