SIRIUS 3RR2 current monitoring relays
8.11 Dimension drawings (dimensions in mm)
SIRIUS Innovations
752 System Manual, 01/2011, A8E56203870002-03

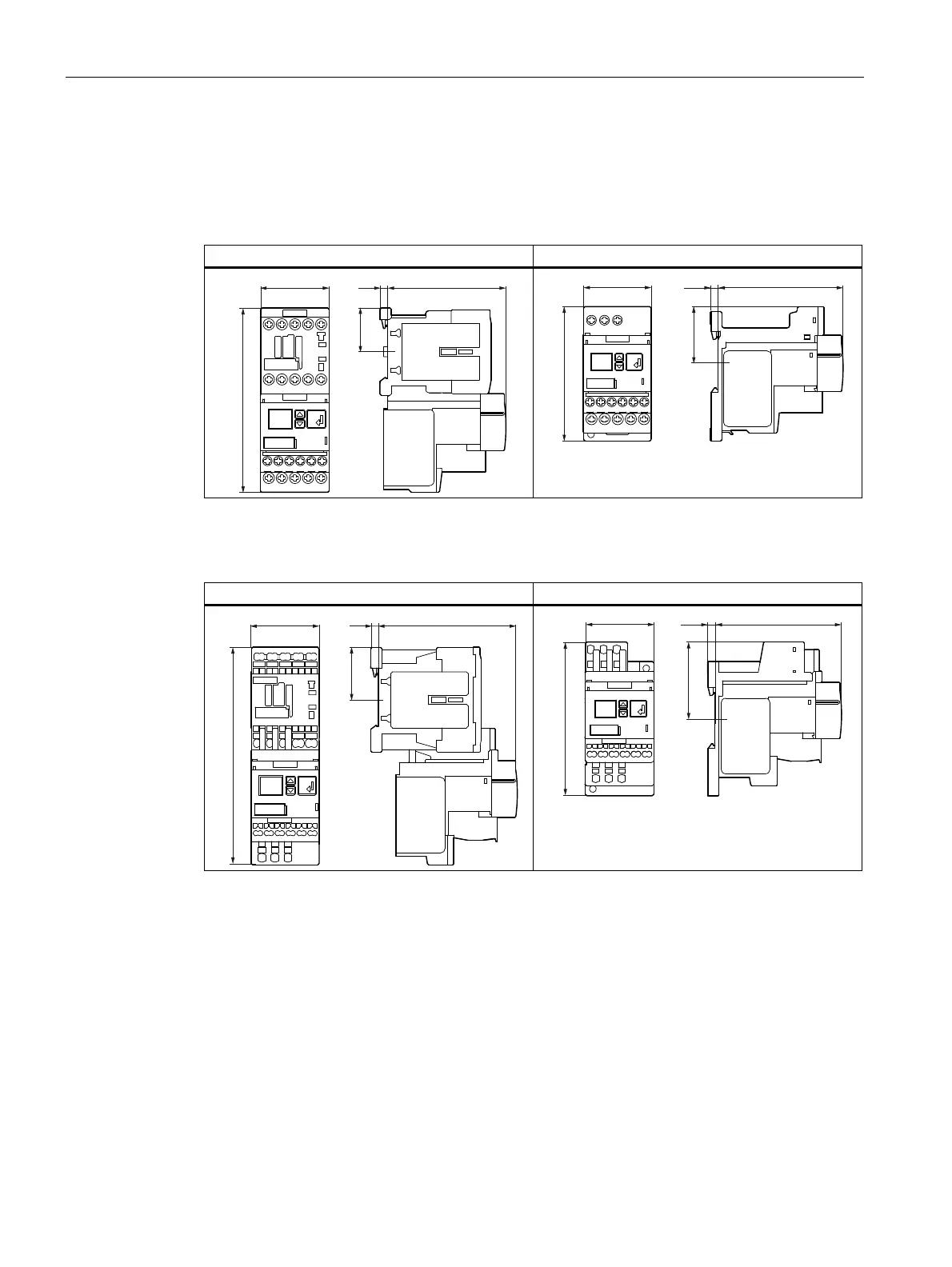

8.11.2 Dimension drawings for 3RR22 Standard digital setting current monitoring relay
3RR2241-1F.30 (screw connection, S00)
With contactor With terminal support for stand-alone assembly










3RR2241-2F.30 (spring-loaded connection, S00)
With contactor With terminal support for stand-alone assembly










