SIRIUS 3RT2 contactors/contactor assemblies
2.7 Accessories
SIRIUS Innovations
208 System Manual, 01/2011, A8E56203870002-03
2.7.21 Terminal module for contactors with screw connections
2.7.21.1 Description
The terminal module for contactors with screw connections is available in the following
versions.
Table 2- 63 Versions of the terminal module for contactors with screw connections
Size Order number Version
S00 and S0 3RT1900-4RE01 Plug for contactor
S00 3RT1916-4RD01 Adapter for contactor
S0 3RT1926-4RD01 Adapter for contactor
The terminal module can be used to connect contactors with screw connections in size S00
or S0 to a motor.
2.7.21.2 Mounting
Mounting the terminal module for contactors with screw connections

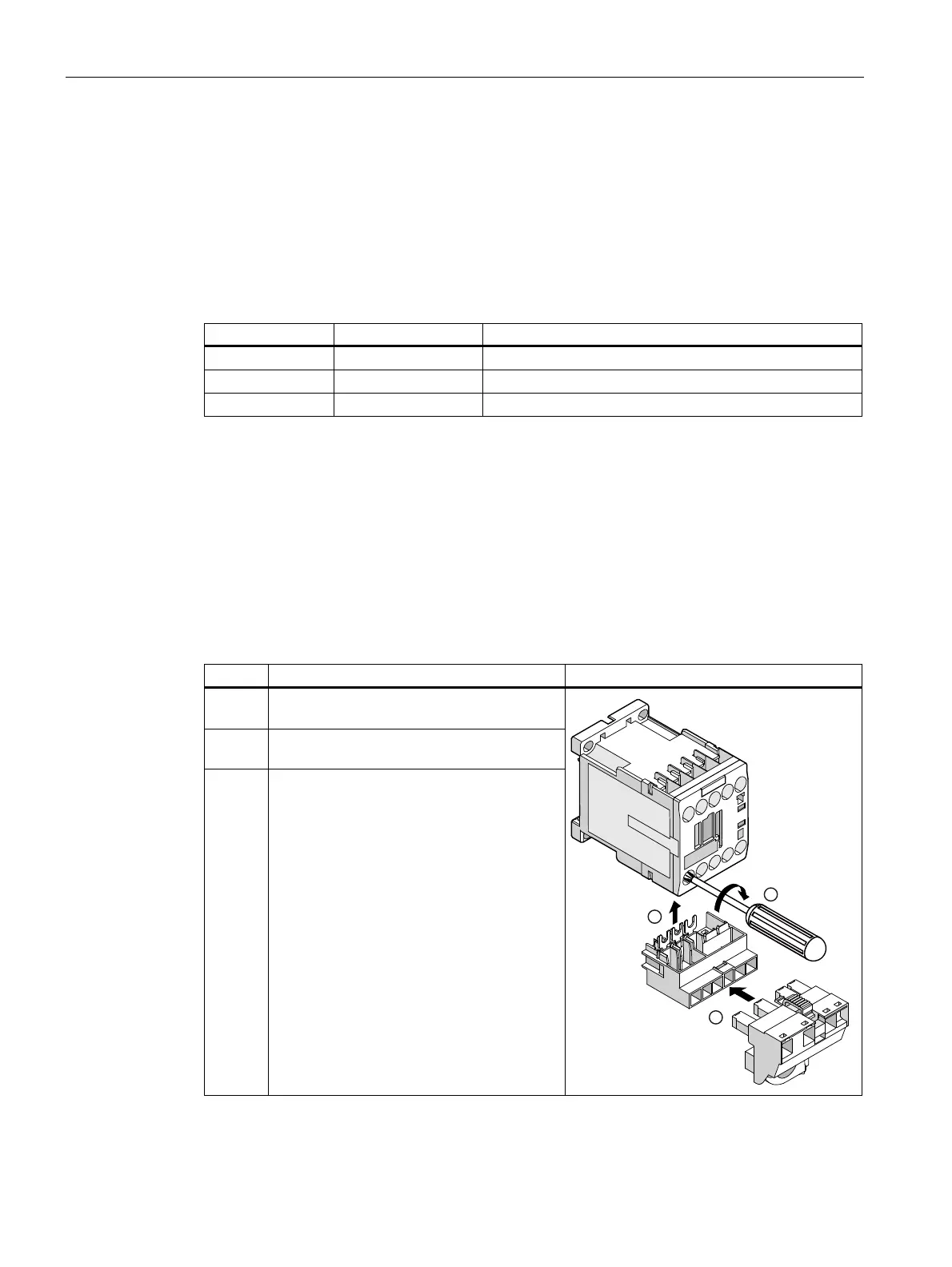

Table 2- 64 Mounting the terminal module for contactors (size S00) with screw connections
Step Operating instruction Figure
1 Plug the adapter pin into the contactor from
below.
2 Insert the plug into the openings on the
adapter from the front, until it engages.
3 Screw the terminal module tight with a
screwdriver.



