SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
434 System Manual, 01/2011, A8E56203870002-03
Mounting flush-mounting enclosures

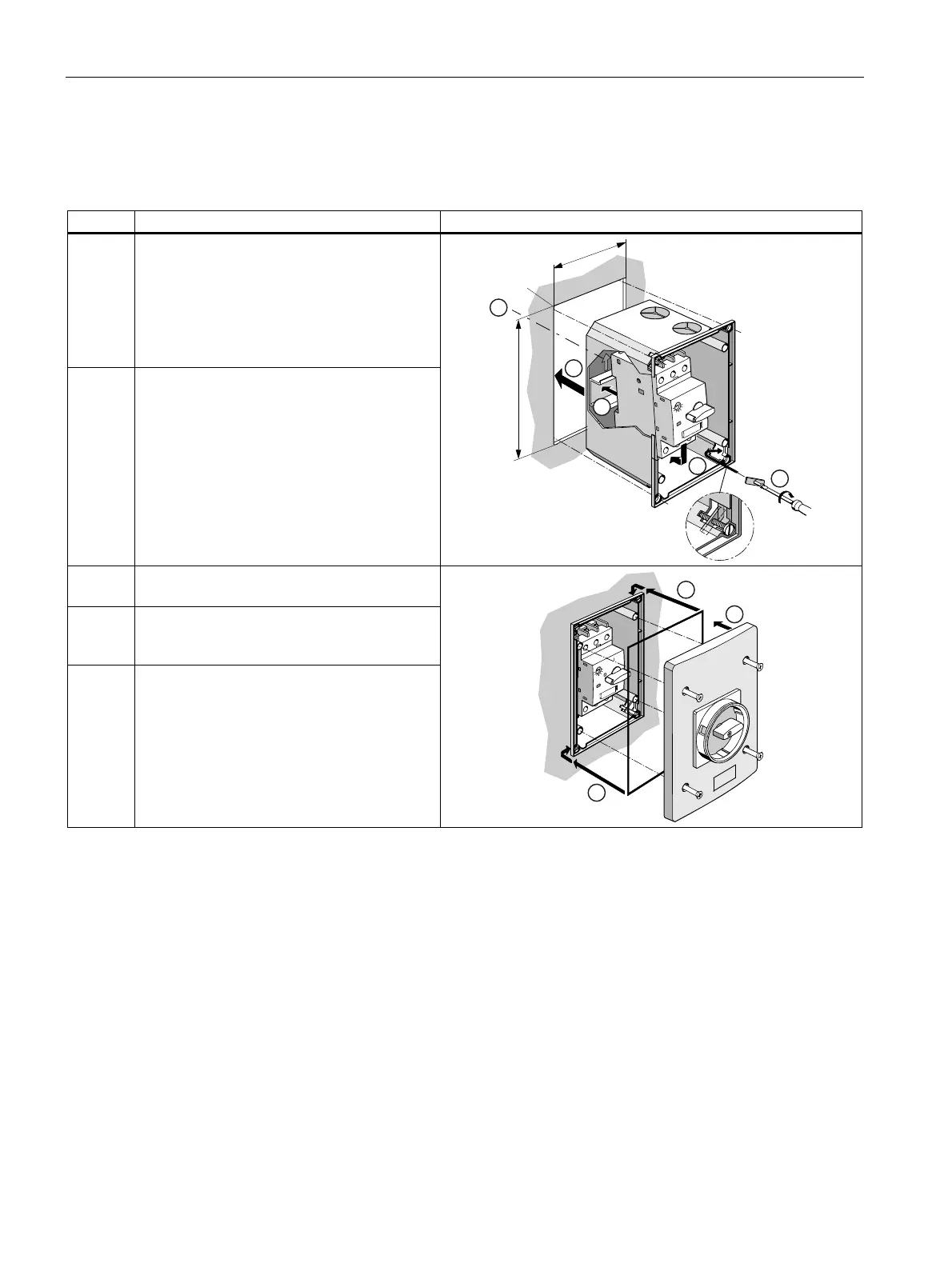

Table 4- 27 Mounting the flush-mounting enclosure
Step Operating instruction Figure
1 / 2 A cutout measuring 157 x 87 mm and with a
radius of the corners of R3 is required to
mount the flush-mounting enclosure. The
enclosure is 96 mm deep.
Snap the motor starter protector onto the rail
in the enclosure as illustrated in the diagram.
Make sure that the arrow (A) is pointing up.
3 Position the lower part of the enclosure in the
cutout.
8
7
R3
157
1




$
4 Secure the enclosure as shown in the zoom
view to prevent it from sliding out.
5 Position the seal between the enclosure and
the mounting surface as illustrated in the
diagram.
6 Next, screw the enclosure top part to the
lower part of the enclosure (tightening torque
1.2 to 1.5 Nm).



