Executing an independent key transition
(transition control block)
The buttons used for executing an independent key
transition must be assigned to the transition control block
beforehand.
For details about assigning buttons, see “Assigning
Control Panel Buttons” (page 402).
To insert/remove a key instantaneously
Press a [KEY1 ON] to [KEY8 ON] button.
To insert/remove a key with the preset transition
ty
pe and transition rate
Press the following buttons.
• ICP-X7000: [AUTO TRANS] button for the
cor
responding key
• ICP-X1000 series: [KEY1 TRANS] button to [KEY8
TR
ANS] button
During the transition execution, the button is lit amber
and g
oes off when the transition is completed.
• You can change this so that during the execution of the
t
ransition, the button is lit green and when the transition
is completed it is lit red if on-air or lit amber if not on-
air.
For details about settings, see “Setting the independent
key transition, auto transition execution button
display” (page 417).
• When a cut is selected as the transition type, the key is
in
serted/removed instantaneously.
Executing an independent key transition
(independent key transition control block)
The buttons used for executing an independent key
transition must be assigned to the independent key
transition control block beforehand.
For details about assigning buttons, see “Assigning
Control Panel Buttons” (page 402).
To insert/remove a key instantaneously
Press a [KEY1 ON] to [KEY8 ON] button.
To insert/remove a key with the preset transition
ty
pe and transition rate
Press the [AUTO TRANS] button for the corresponding
key.
During the transition execution, the button is lit amber
and g
oes off when the transition is completed.
• You can change this so that during the execution of the
t
ransition, the button is lit green and when the transition
is completed it is lit red if on-air or lit amber if not on-
air.
For details about settings, see “Setting the independent
key transition, auto transition execution button
display” (page 417).
• When a cut is selected as the transition type, the key is
in
serted/removed instantaneously.
Note
Display

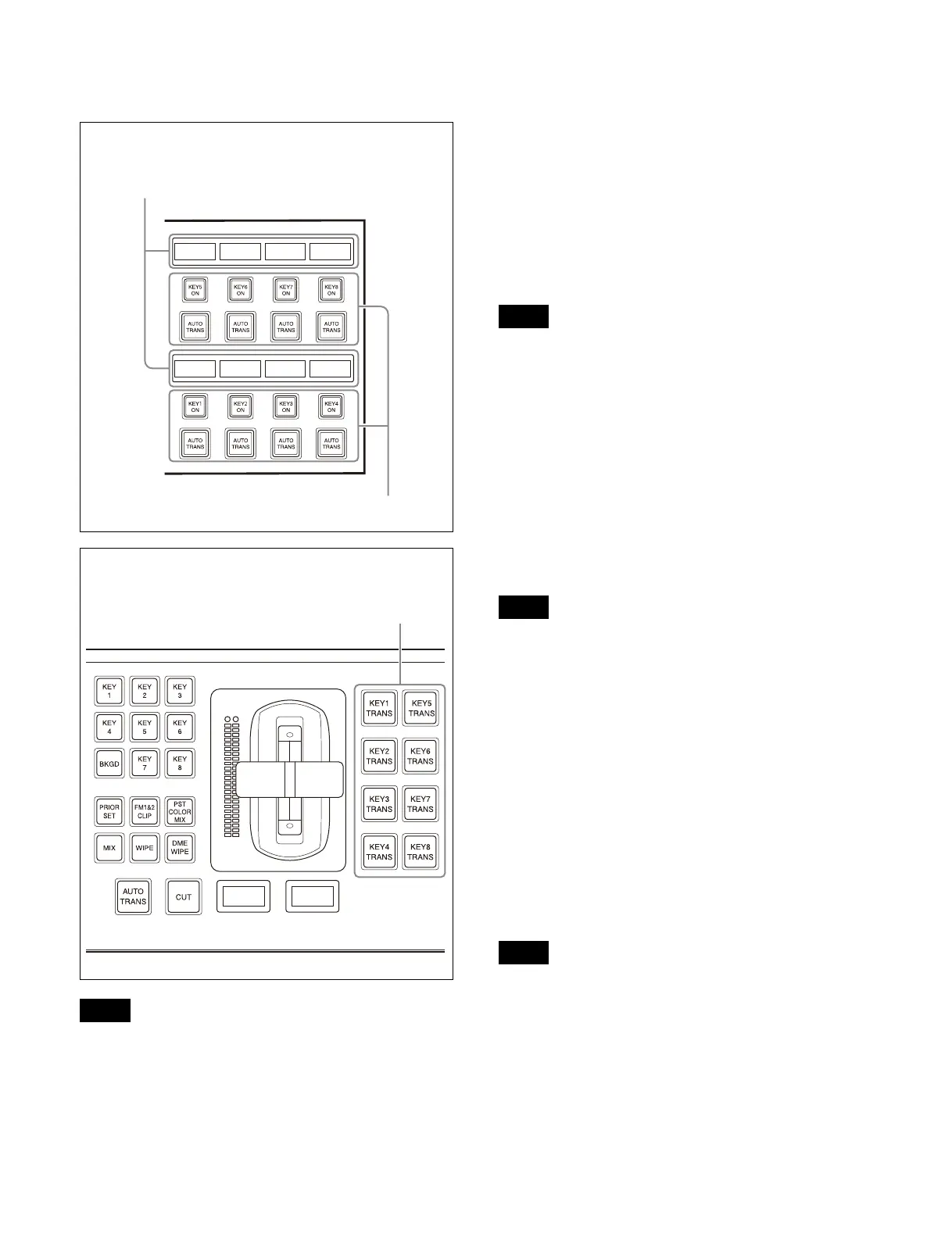

Independent key transition execution buttons
ICP-X7000 transition control block
Independent key transition execution section
ICP-X1000 series transition control block
Notes
Note
Notes
