Removal and Installation Procedures
6-28
ImplOSion Shield
---i~*
Guides
Additional procedures required - This procedure requires that the
following
procedures
be
performed first:
Rear
Cover Removal
Cabinet Removal
Front
Trim
Removal
1.
From the front of the Implosion Shield, slip the spudger into the slot
provided
on
the side of the CRT Front Bracket. See Figure 6-15.
2.
Carefully pry the Implosion Shield up and out of the CRT Front Bracket
guides.
3.
Re-install the Implosion Shield by placing the left side of the shield into
the
CRT
Front Bracket guides. If installing a new Implosion Shield,
remove the clear protective covers.
4. Snap the right side of the
Implosion shield into the
CRT
Front Bracket
snaps.
5.
Install all previously removed components.
Slot In CRT
Bracket
Spudger

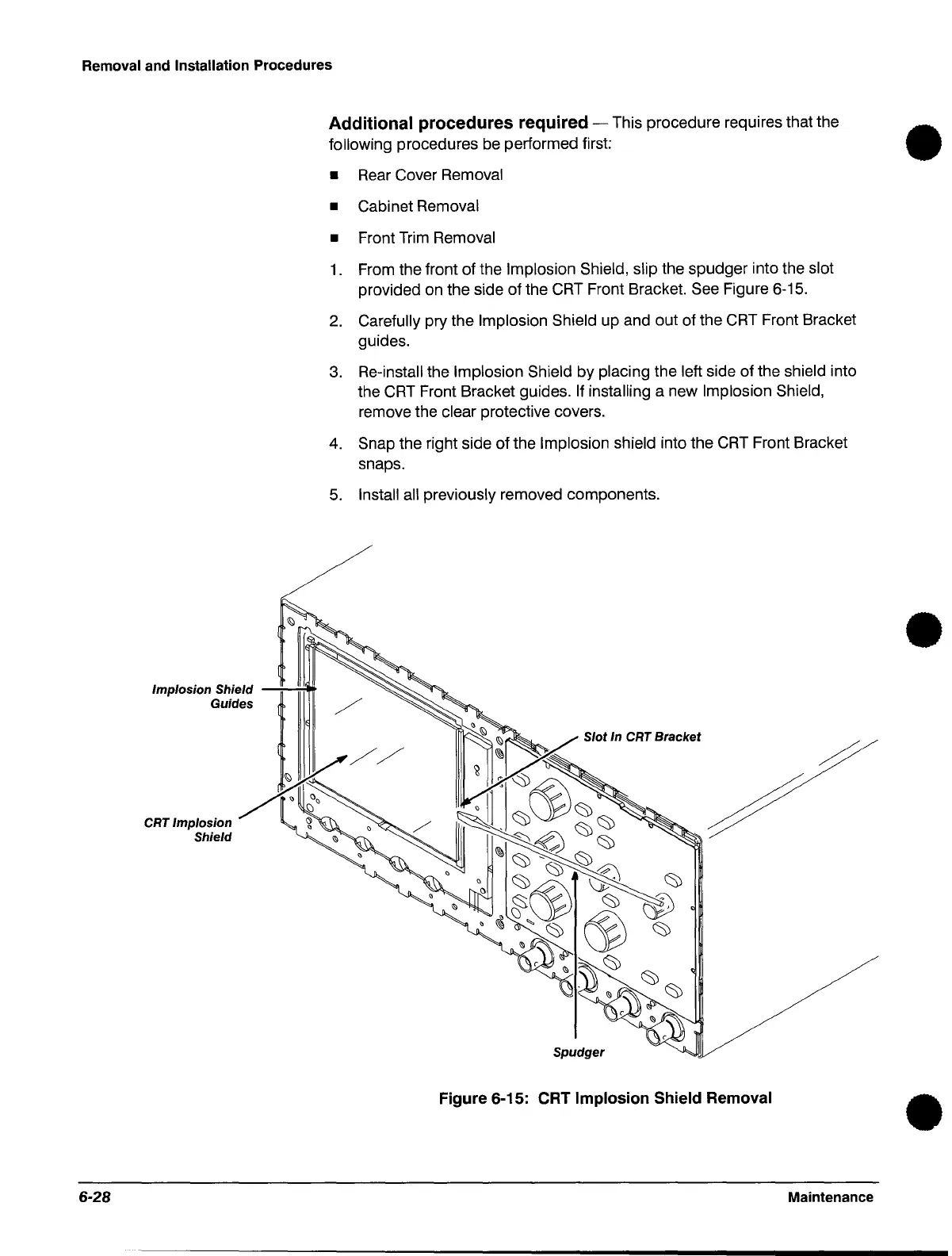

Figure 6-15: CRT ImplOSion Shield Removal
Maintenance
