Nominal Traits

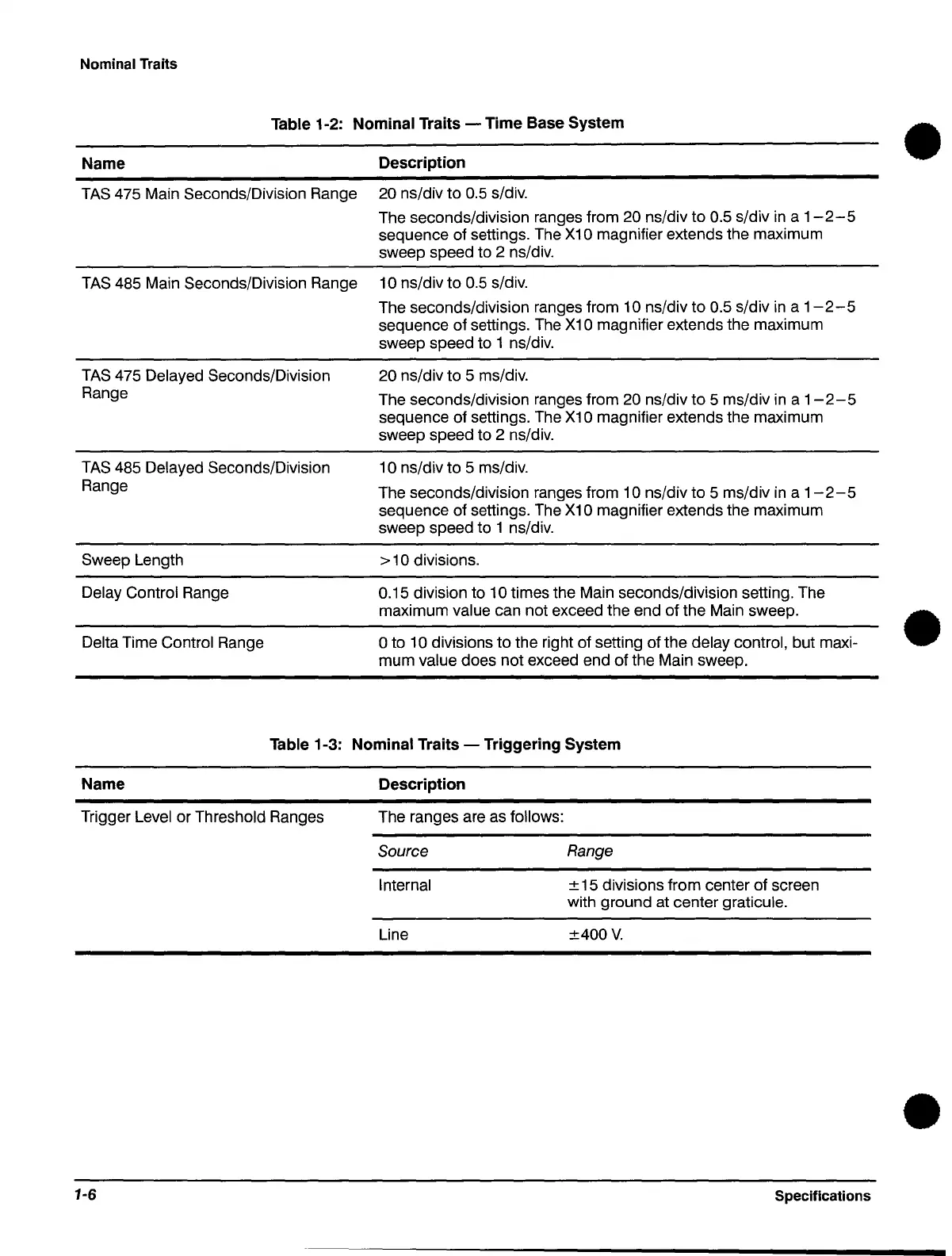

Table 1-2: Nominal Traits - Time Base System
Name
Description
TAS 475 Main Seconds/Division Range 20 ns/div
to
0.5 s/div.
The seconds/division ranges from
20
ns/div
to
0.5 s/div in a
1-2-5
sequence of settings. The
X1
0 magnifier extends the maximum
sweep speed to
2 ns/div.
TAS 485 Main Seconds/Division Range
10
ns/div
to
0.5 s/div.
TAS 475 Delayed Seconds/Division
Range
TAS 485 Delayed Seconds/Division
Range
Sweep Length
Delay Control Range
Delta Time Control Range
The seconds/division ranges from
10 ns/div
to
0.5 s/div in a
1-2-5
sequence
of
settings. The
X1
0 magnifier extends the maximum
sweep speed to
1 ns/div.
20
ns/div
to
5 ms/div.
The seconds/division ranges from
20
ns/div
to
5 ms/div in a
1-2-5
sequence of settings. The
X1
0 magnifier extends the maximum
sweep speed to
2 ns/div.
10
ns/div
to
5 ms/div.
The seconds/division ranges from
10 ns/div
to
5 ms/div in a
1-2-5
sequence of settings. The
X1
0 magnifier extends the maximum
sweep speed to
1 ns/div.
> 1 0 divisions.
0.15 division to
10
times the Main seconds/division setting. The
maximum
value can not exceed the end of the Main sweep.
o to 10 divisions
to
the right
of
setting of
the
delay control, but maxi-
mum
value does
not
exceed end
of
the Main sweep.
Table 1-3: Nominal Traits - Triggering System
Name
Description
Trigger Level or Threshold Ranges The ranges are as follows:
Source
Internal
Line
1-6
Range
± 15 divisions from center of screen
with ground at center
graticule.
±400
V.
Specifications
•
•
•
