Nominal Traits
Name
Slope Selection
Name
Cursor Functions
Name
Sensitivity Range
Name

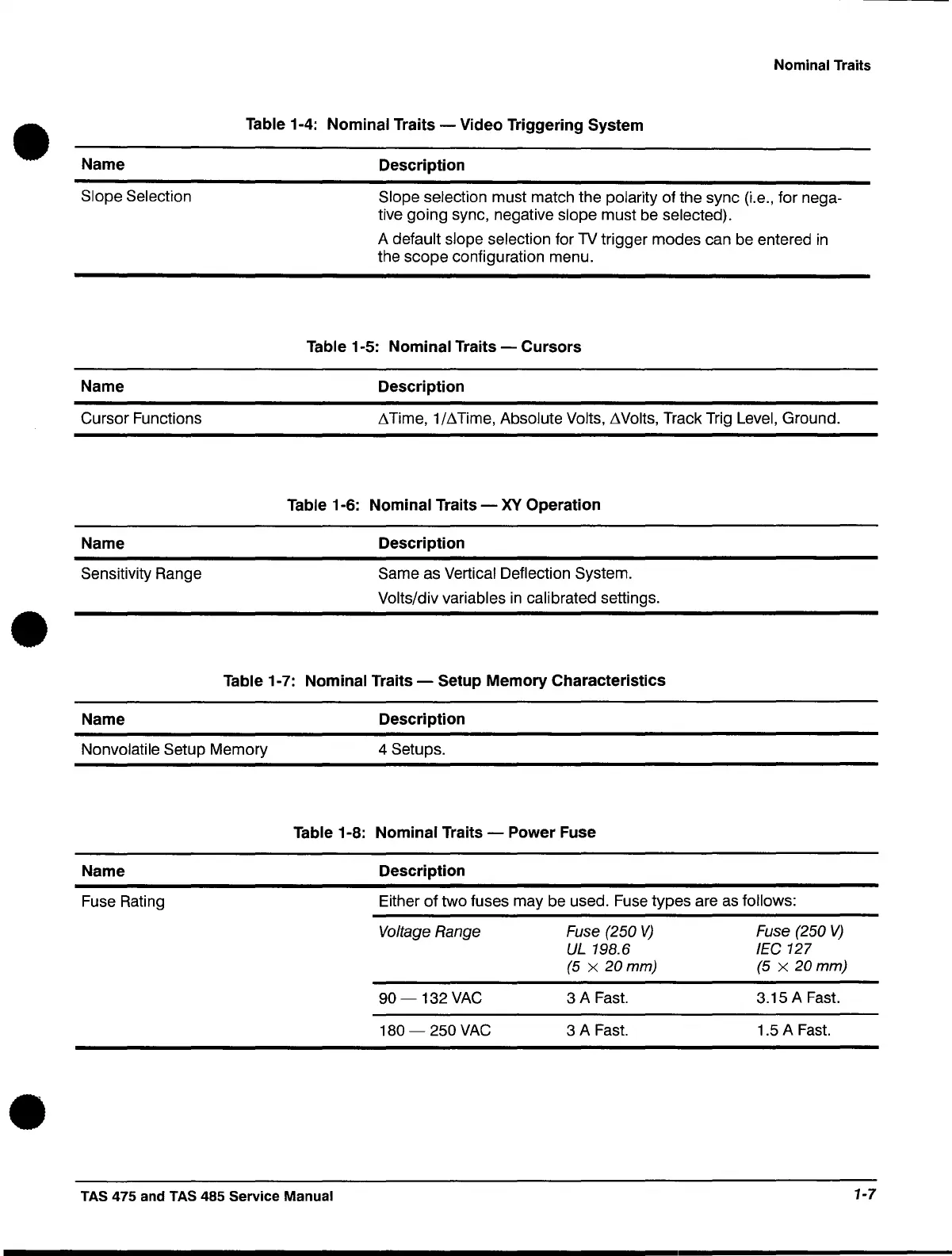

Table 1-4: Nominal Traits - Video Triggering System
Description
Slope selection must match the polarity of the sync (i.e., for nega-
tive going sync, negative slope must be selected).
A default slope selection for
TV trigger modes can be entered in
the scope configuration menu.
Table 1-5: Nominal Traits - Cursors
Description
~Time, 1/~Time, Absolute Volts, ~Volts, Track Trig Level, Ground.
Table 1-6: Nominal Traits - XV Operation
Description
Same as Vertical Deflection System.
Volts/div variables
in calibrated settings .
Table 1-7: Nominal Traits - Setup Memory Characteristics
Description
Nonvolatile Setup Memory 4 Setups.
Table 1-8: Nominal Traits - Power Fuse
Name Description
Fuse Rating
Either of two fuses may be used. Fuse types are
as follows:
Voltage Range
90-132VAC
180-250VAC
TAS 475 and TAS 485 Service Manual
Fuse (250 V)
UL 198.6
(5 x 20mm)
3 A Fast.
3 A Fast.
Fuse (250 V)
lEG 127
(5 x 20mm)
3.15 A Fast.
1.5 A Fast.
1-7
