Groundsmaster 4300--DHydraulic System Page 4 -- 68
Hydraulic Pump Assembly
1. Drive shaft assembly
2. Cap screw (2 used)
3. Flange head screw (2 used)
4. Hydraulic pump assembly
5. O--ring
6. 90
o
hydraulic fitting (2 used)
7. Hydraulic hose (2 used)
8. Pump support bracket
9. Flange nut (2 used)
10. Traction cable bracket
11. Flange head screw (2 used)
12. Carriage screw (2 used)
13. Hydraulic hose
14. Guard hoop
15. Flange nut (6 used)
16. Manifold
17. Hose clamp (2 used)
18. Hydraulic hose
19. Hydraulic fitting
20. Neutral switch
21. O--ring
22. 90
o
hydraulic fitting
23. O--ring
24. Hydraulic tube
25. O--ring
26. Hydraulic fitting
27. Hydraulic hose
28. Hydraulic hose
29. Frame bracket
30. Flange head screw (2 used)
31. Hydraulic tube
32. O--ring
33. O--ring
34. Flat washer (2 used)
35. Lock nut (2 used)
36. O--ring
37. Hydraulic fitting (2 used)
38. Hydraulic fitting
39. Hydraulic fitting

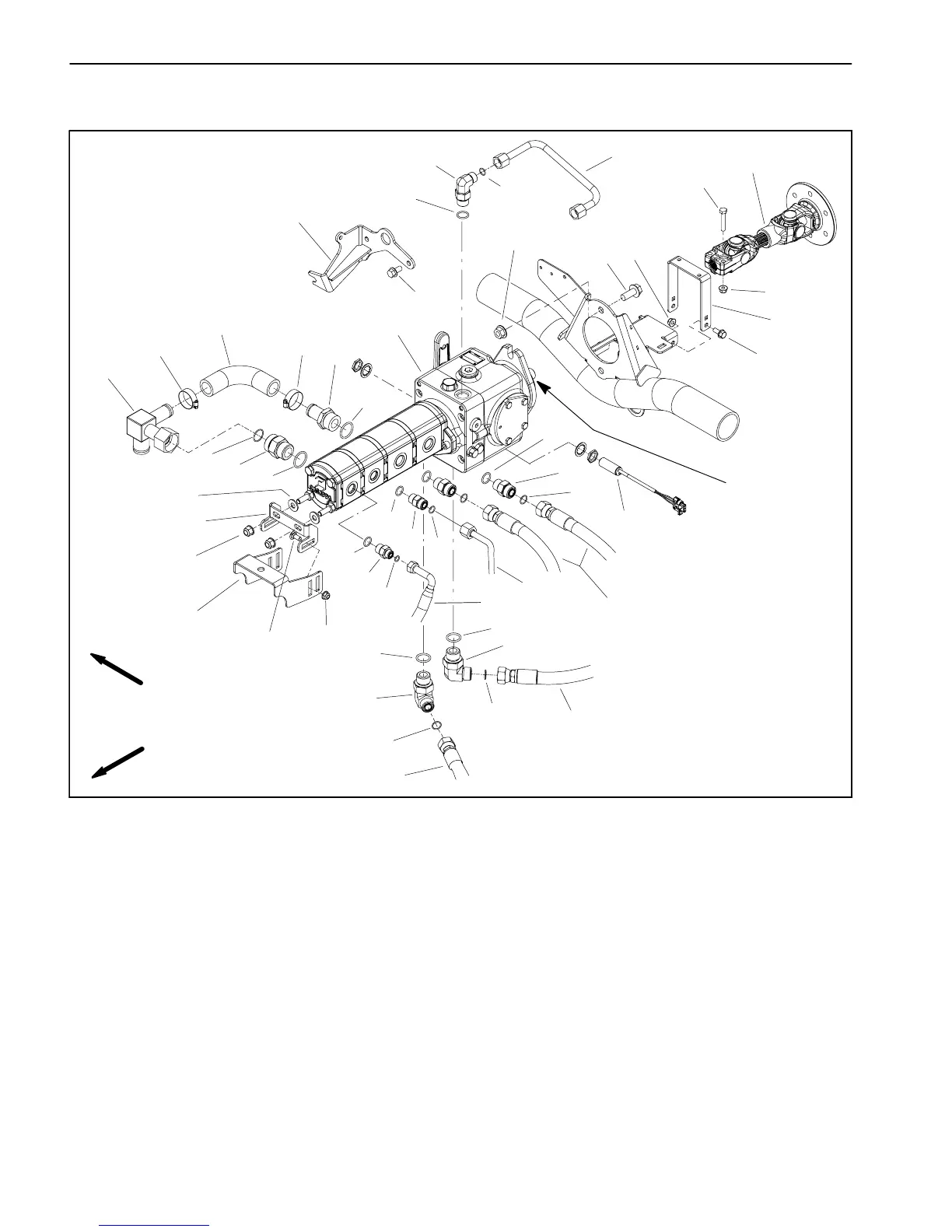

Figure 67
FRONT
RIGHT
17
15
11
9
14
15
6
7
8
20
3
4
1
5
2
22
23
18
16
10
19
21
25
24
38
27
29
30
33
31
32
28
34
35
12
26
33
6
5
17
15
25
23
25
32
39
36
37
21
25
Antiseize
Lubricant
13
