Groundsmaster 4300--DPage 5 -- 36Electrical System
Diode Assembly

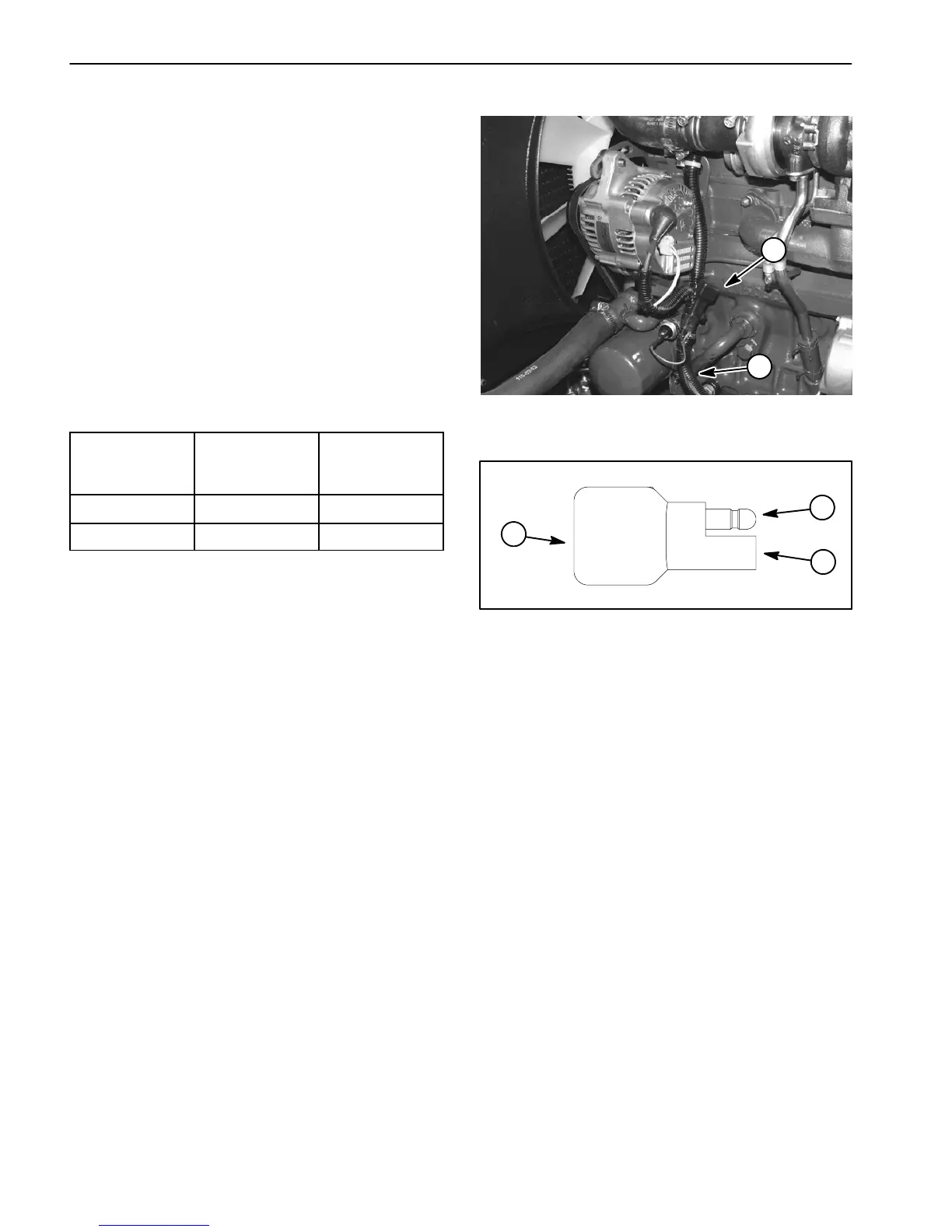

A diode assembly (Fig.42) is used in the Groundsmas-
ter 4300--D engine wire harness. The diode is used for
circuit protection from voltage spikes that occur when
the engine starter s olenoid is de--energized. Refer to
wireharnessdrawings inChapter8 -- FoldoutDrawings
for additional diode assembly information.
Testing
Locate diode assembly and remove cable tie that se-
cures diode to wire harness. Unplug the diode from the
wire harness for testing. The diode (Fig. 43) can be
testedusingadigitalmultimeter(diodetestorohmsset-
ting)andthetablebelow.Aftertestingiscomplete,make
sure that diode is fully installed into harness connector
and secured to harness with c able tie.
Multimeter
Red Lead (+)
on Terminal
Multimeter
Black Lead (--)
on Terminal
Continuity
Female Male YES
Male Female NO
1. Engine wire harness 2. Diode assembly
Figure 42
2
1
Figure 43
1. Diode
2. Male terminal
3. Female terminal
1
2
3
