Groundsmaster 4300--DHydraulic System Page 4 -- 104

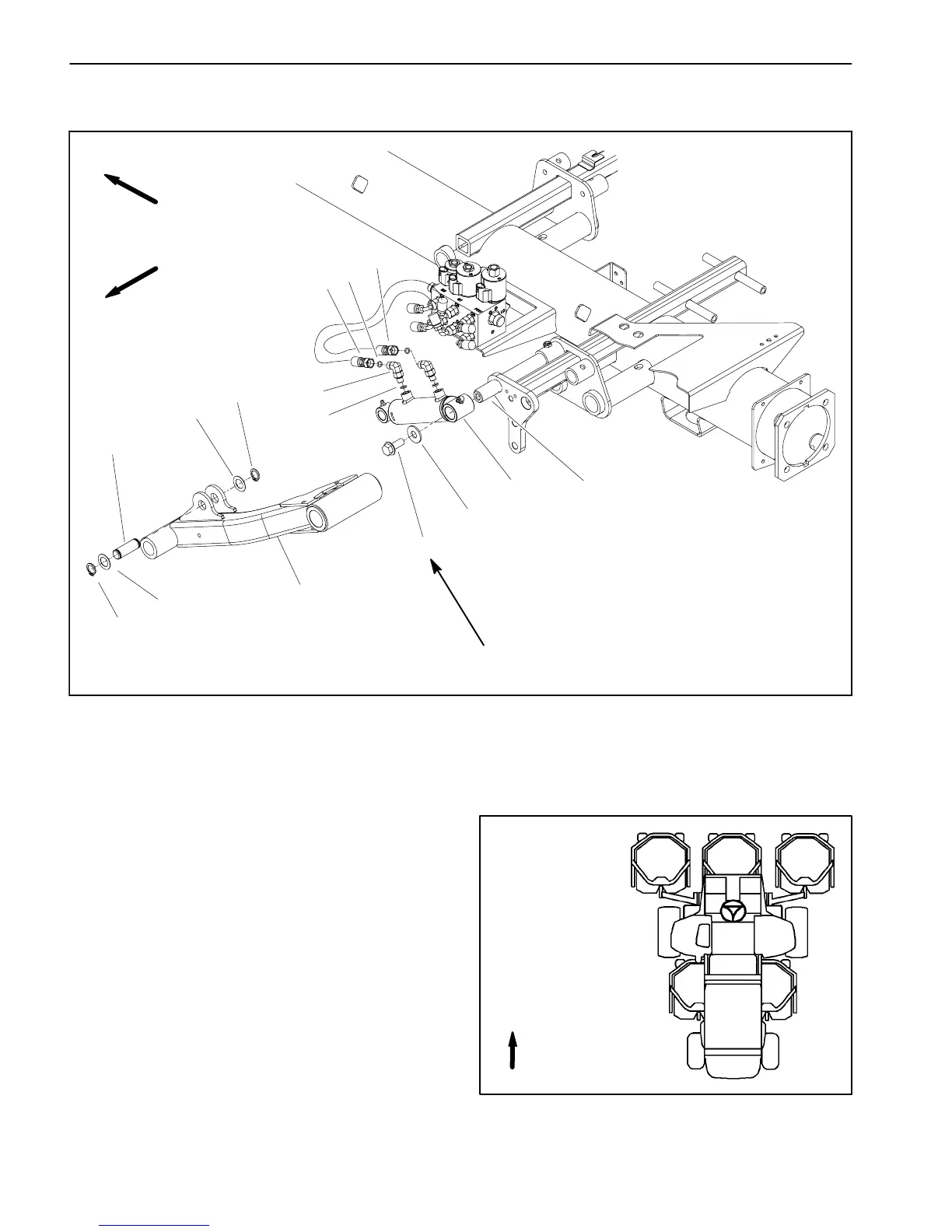

Lift Cylinder
1. Lift cylinder
2. Pivot shaft
3. Flange head screw
4. Lift arm (#1 shown)
5. Flat washer
6. Hydraulic hose
7. O--ring
8. 90
o
hydraulic fitting
9. O--ring
10. Hydraulic hose
11. Retaining ring
12. Thrust washer
13. Cylinder slide pin
Figure 93
FRONT
RIGHT
1
2
5
3
4
67 to 83 ft--lb
(91 to 112 N--m)
10
11
12
13
11
12
6
7
8
9
NOTE: The procedure for lift cylinder removal and
installation is the same for all Groundsmaster 4300--D
liftcylinders.Figure93showsthecenter,front(deck#1)
lift cylinder.
Removal (Fig. 93)
1. Park the machine on a level surface, engage the
parking brake, lower the cutting decks and stop the en-
gine. Remove the key from the ignition switch.
2. Read the General Precautions for R emoving and
Installing Hydraulic System Components at the begin-
ning of the Service and Repairs section of this chapter.
Figure 94
FRONT
#4 #1 #5
#3#2
GROUNDSMASTER
4300--D CUTTING
DECK LOCATIONS
