Groundsmaster 4300--DHydraulic System Page 4 -- 24

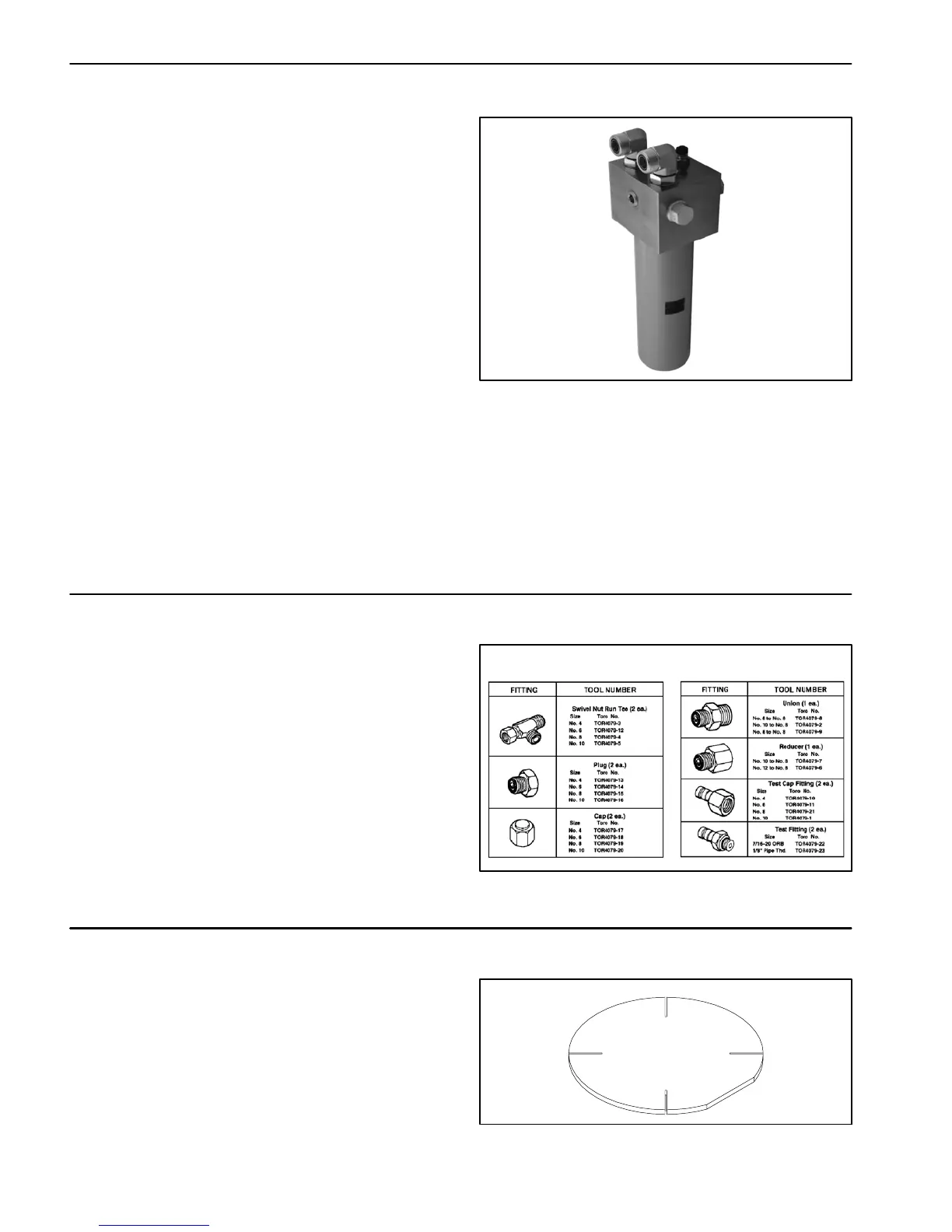

High Flow Hydraulic Filter Kit
The high flow hydraulic filter kit is designed with large
flow (40 GPM/150 LPM) and high pressure (5000
PSI/345 bar) capabilities. This kit provides for bi--direc-
tionalfiltration which preventsfiltered debris frombeing
allowedbackintothecircuitregardlessofflowdirection.
If acomponent failureoccurs in the closedlooptraction
circuit, contamination from the failed part will remain in
the circuit until removed. When connecting hydraulic
test gauges in order to test traction circuit components
orafterreplacingafailedtractioncircuitcomponent(e.g.
hydrostat or wheel motor), the high flow hydraulic filter
can be installed in the traction circuit. The filter will en-
sure that contaminates are removed from the closed
loopandthus,donotcause additionalcomponentdam-
age.
Toro Part Number: TOR6011
NOTE: Use of Hydraulic Hose Kit TOR6007 is recom-
mended when using the high flow hydraulic filter kit.
NOTE: Replacementfilter elementis Toro partnumber
TOR6012. Filter element cannister tightening torque is
25 ft--lb (34 N--m).
Figure 26
Hydraulic Test Fitting Kit
This kit includes a variety of O--ring face seal fittings to
enable connection of test gauges to the system.
The kit includes: tee’s, unions, reducers, plugs, caps
and male test fittings.
Toro Part Number: TOR4079
Figure 27
TORO TEST FITTING KIT (TOR4079)
Spindle Plug
The spindle plug can be used to prevent contaminant
entry into the cutting deck spindle assembly when the
hydraulic motor is removed from the spindle.
Toro Part Number: 94--2703
Figure 28
