Groundsmaster 4300--DCutting Decks Page 7 -- 2
Specifications
MOUNTING: All cutting decks are supported by inde-
pendentliftarmsandareinterchangeabletoanycutting

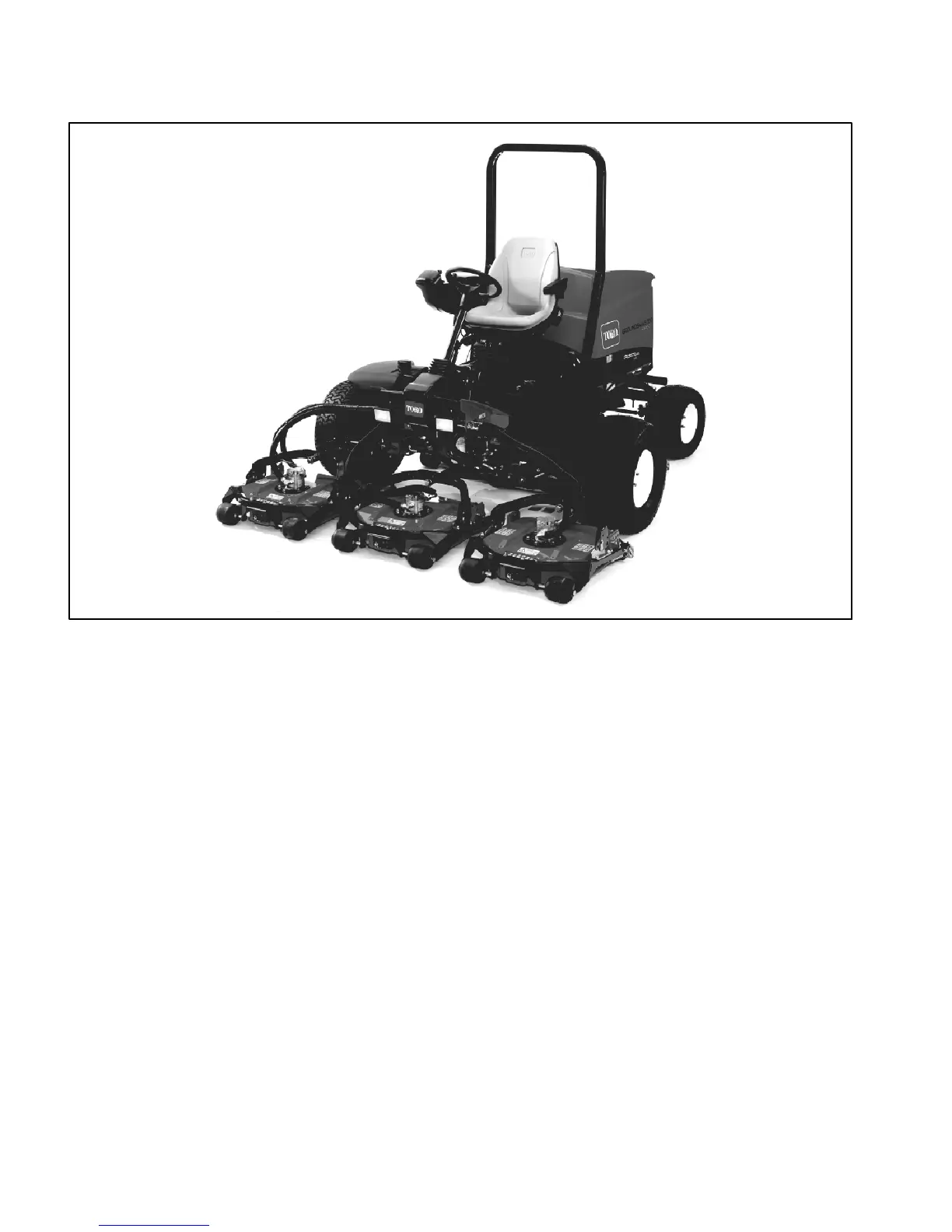

deck positions. The Groundsmaster 4300--D uses five
(5) cutting decks.
CONSTRUCTION: Deck chamber and frame are
welded steel construction reinforced withchannels and
plates.
HEIGHT--OF--CUT RANGE: 3/4 to 4 inch (19 to 101
mm)in1/4inch(6.4mm)increments.Height--of--cutad-
justment is made by repositioning deck on deck frame.
DECK DRIVE: Closed loop, integrated relief, hydraulic
system operates cutting deck hydraulic motors. Blade
spindles are 1--1/4 inch (31.7 mm) shafts supported by
greaseable, tapered roller bearings in a ductile iron
housing.
CUTTING BLADE: Each cutting deck equipped with a
22inch(559mm)length,0.250inch(6.4mm)thick,heat
treated, steel blade. Anti--scalp cup installed on cutting
blade. The standard blade is optimized for most cutting
applications. Optional high lift, angled sail and Atomic
bladesareavailableforthoses ituationswherethestan-
dard blade is not ideal.
DISCHARGE:Clippingsaredischargedfromtherearof
the mowing decks. Pre--drilled mounting holes in the
cutting deck allow attachment of optional mulching
baffle.
CUTTING DECK LIFT: Cutting decks on the Ground-
smaster 4300--D are controlled with the operator joy-
stick.
SUSPENSION SYSTEM: A fully floating suspension
withhydrauliccounterbalance.Main centerpivotallows
side--to--side deck oscillation. Individual decks sup-
ported with two (2) front rollers and one, full width, rear
roller.
WEIGHT: Individual cutting deck weighsapproximately
140 lb (63.5 k g).
