Groundsmaster 4300--D Page 3 -- 5 Kubota Diesel Engine
DANGER
Because diesel fuel is highly flammable, use
caution when storing or handling it. Do not
smoke while filling the fuel tank. Do not fill fuel
tankwhileengineisrunning,whenengineishot
or when machine is in an enclosed area. Always
fill fuel tankoutside and wipeupanyspilled die -
selfuelbeforestarting theengine. Storefu el in a
clean, safety--approved containerand keep con-
tainer cap in place. Usediesel fuel for the engine
only; not for any other purpose.
Check Fuel Hoses and Connections
Check fuel hoses and connections periodically as rec-
ommended in the Operator’sManual. Check fuelhoses
for deterioration, damage, leakage or loose connec-
tions. Replace fuel hoses, clamps and connections as
necessary.
Drain and Clean Fuel Tank
Drain and clean the fuel tank periodically as recom-
mendedintheOperator’sManual. Also, drainandclean
the fuel tank if the fuel system becomes contaminated
or if the machine is to be stored for an extended period.
To clean fuel tank, flush tank out with clean diesel fuel.
Make sure tank is free of all contaminates and debris.
Fuel Tank Removal (Fig. 2)
1. Park machine on a level surface, lower cutting
decks, stop engine, apply parking brake and remove
key from the ignition switch.
2. Placedrainpanunderfueltank. Makesurethatdrain
pan is large enough to hold fuel tank contents (see
Specifications in this chapter).
3. Opendraincockonbottomoffueltankandallowtank
to fully drain. Close draincock.
NOTE: Before removing fuel hoses from tank fittings,
label hoses for assembly purposes.
4. Loosenhoseclampsanddisconnectfuelhosesfrom
suction (item 7) and return (item 6) fittings on the top of
the fuel tank.
5. Remove fuel tank using Figure 2 as a guide.
Fuel Tank Installation (Fig. 2)
1. Install fuel tank to frame using Figure 2 as a guide.
2. Using labels placed during fuel tank removal, cor-
rectly connect fuel hoses to suction (item 7) and return
(item 6) fittings on the top of the fuel tank. Secure fuel
hoses with hose clamps.
3. Make sure that fuel tank draincock is closed. Fill fuel
tank.

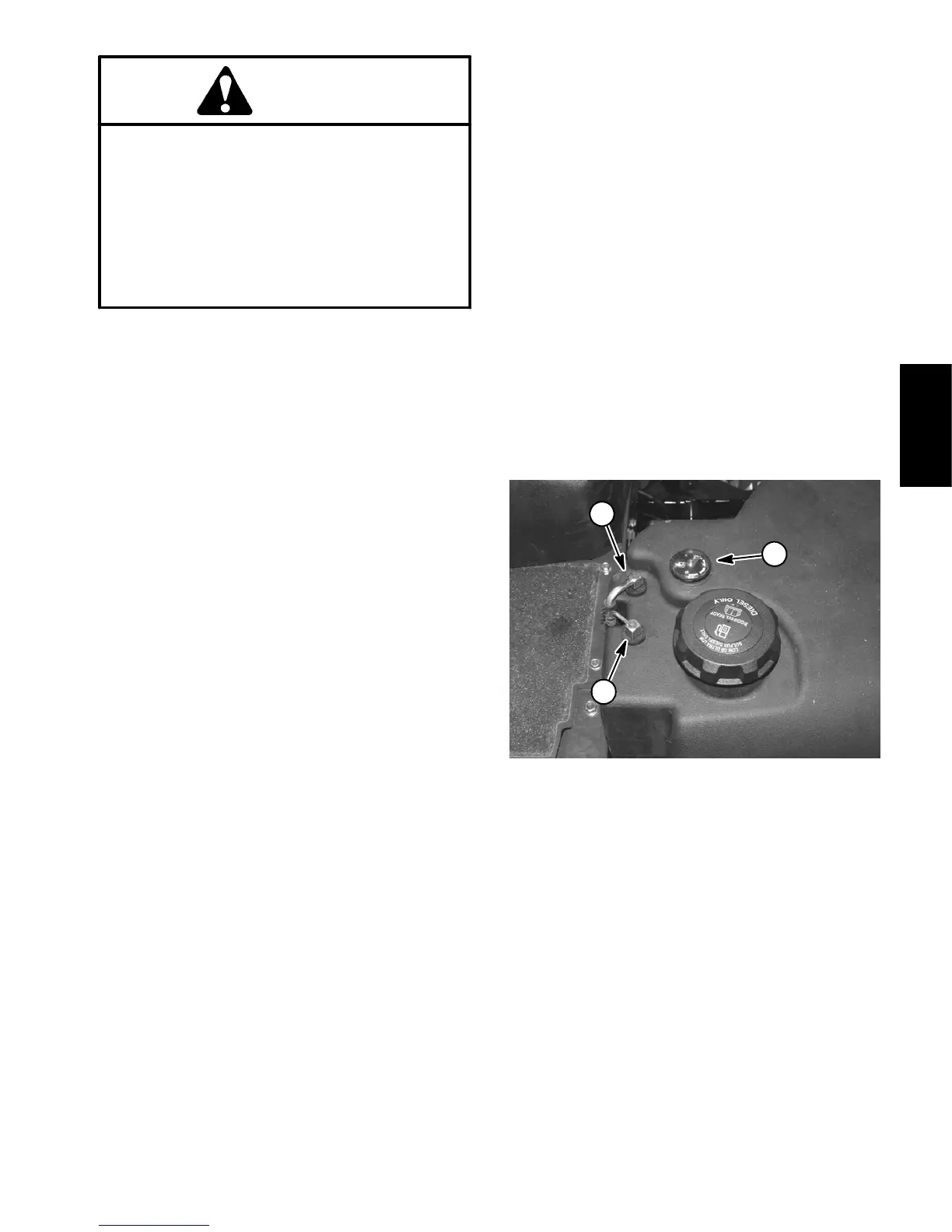

Figure 3
1. Fuel supply hose
2. Fuel return hose
3. Fuel gauge
1
3
2
Kubota Diesel
Engine
