Groundsmaster 4300--D Page 3 -- 3 Kubota Diesel Engine
Adjustments
Adjust Throttle Control
Proper throttle operation is dependent upon proper ad-
justment of throttle control.
NOTE: The throttle cable swivel should be positioned
in the lowest hole in the speed control lever .
1. Move throttle control lever on control console to
FAST position.
2. Check position of the engine speed control lever on
fuel injection pump. The speed control lever should be
contacting the high speed screw when the throttle con-
trol lever is in the FAST position.
3. If necessary,throttlecontrolcanbeadjustedbyloos-
eningcable clampscrewandrepositioningcontrolcable
until speed control lever contacts high speed screw
when the throttle control lever is in the FAST position.
T ighten cable clamp screw after adjustment has been
completed.

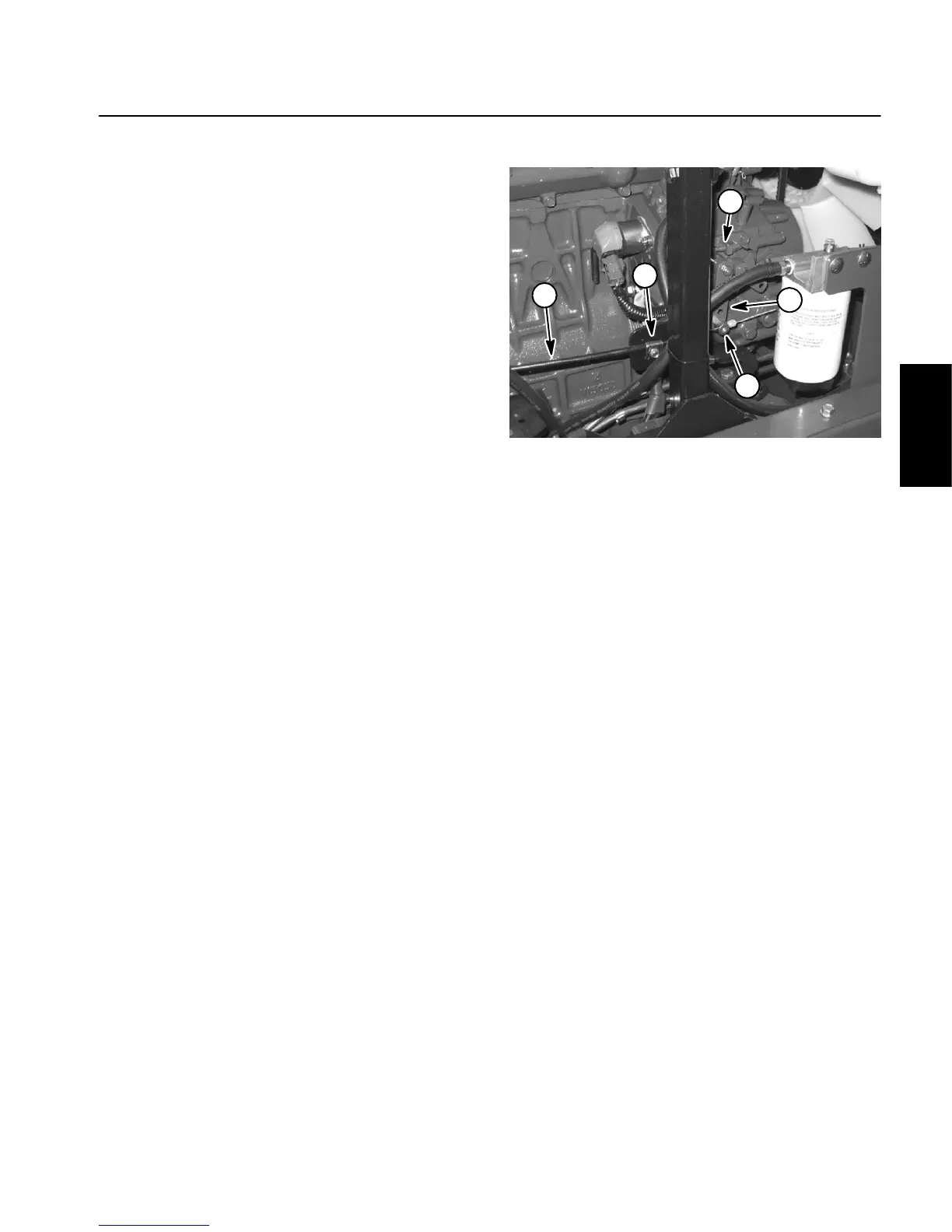

Figure 1
1. Throttle cable
2. High speed screw
3. Speed control lever
4. Swivel
5. Cable clamp
2
1
3
4
5
Kubota Diesel
Engine
