Groundsmaster 4300--DPage 6 -- 10Chassis

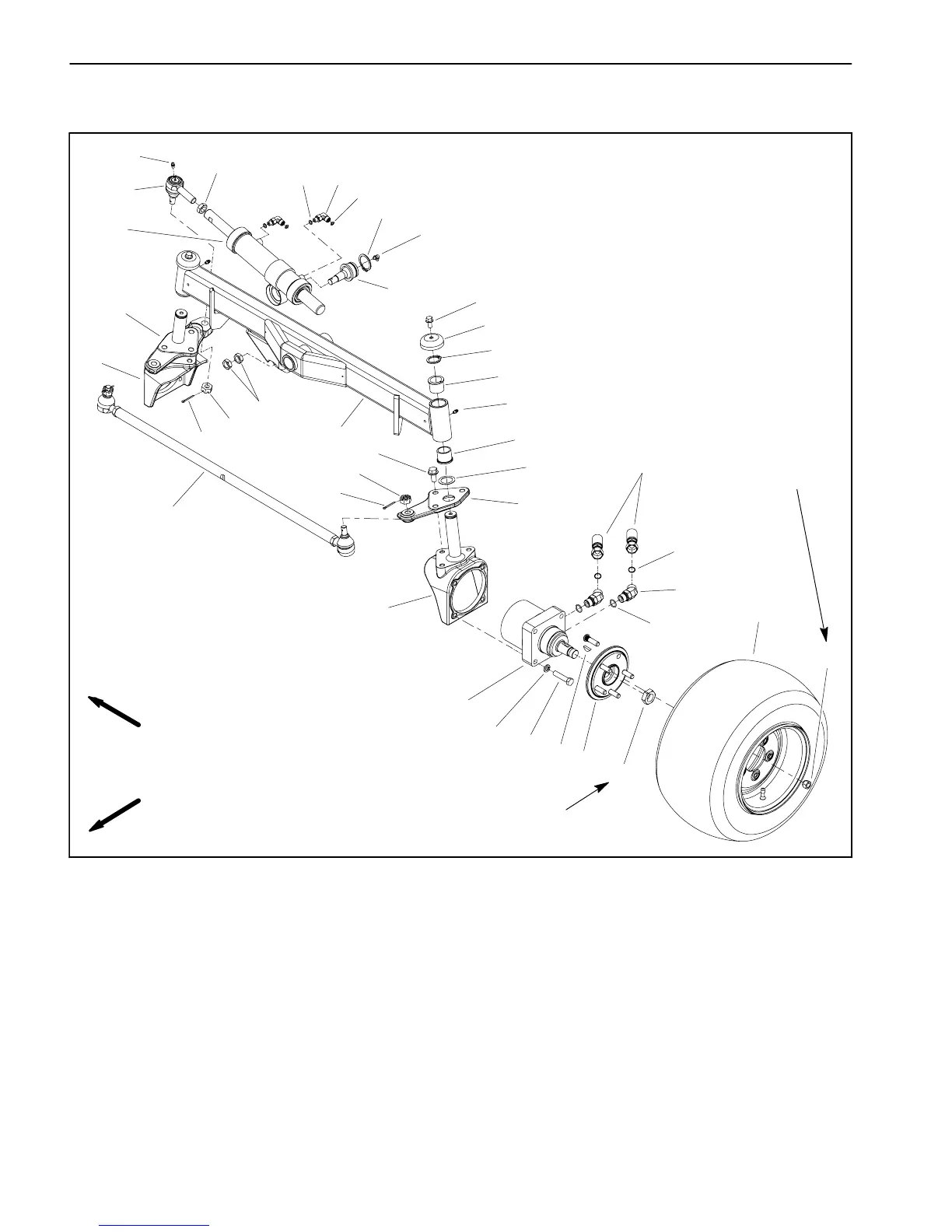

Rear Axle Motor Housings
1. Lug nut (5 used per wheel)
2. Rear axle
3. Motor housing (2 used)
4. RH drag link
5. Tie rod
6. O--ring
7. Hydraulic fitting (2 used per motor)
8. O--ring
9. Slotted hex nut
10. Jam nut
11. Grease fitting
12. Spindle cap
13. Retaining ring
14. Flange head screw (3 used per link)
15. Wheel hub
16. Lock nut
17. Wheel motor (LH shown)
18. Lock washer (4 used per motor)
19. Cap screw (4 used per motor)
20. Cotter pin
21. Steering cylinder
22. Ball joint
23. Ball joint
24. Retaining ring
25. Flange head screw
26. Wheel assembly
27. LH drag link
28. Woodruff key
29. Thrust washer
30. Grease fitting
31. Grease fitting
32. O--ring
33. Hydraulic fitting (2 used)
34. O--ring
35. Jam nut
36. Hydraulic hose
37. Flange bushing (4 used)
Figure 8
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
20
9
31
34
32
35
33
70 to 90 ft--lb
(95 to 122 N--m)
(427 to 521 N--m)
315 to 385 ft--lb
36
3
37
37
