Toro GroundsmasterR 4300-D User Manual

Groundsmaster 4300--DHydraulic System Page 4 -- 112

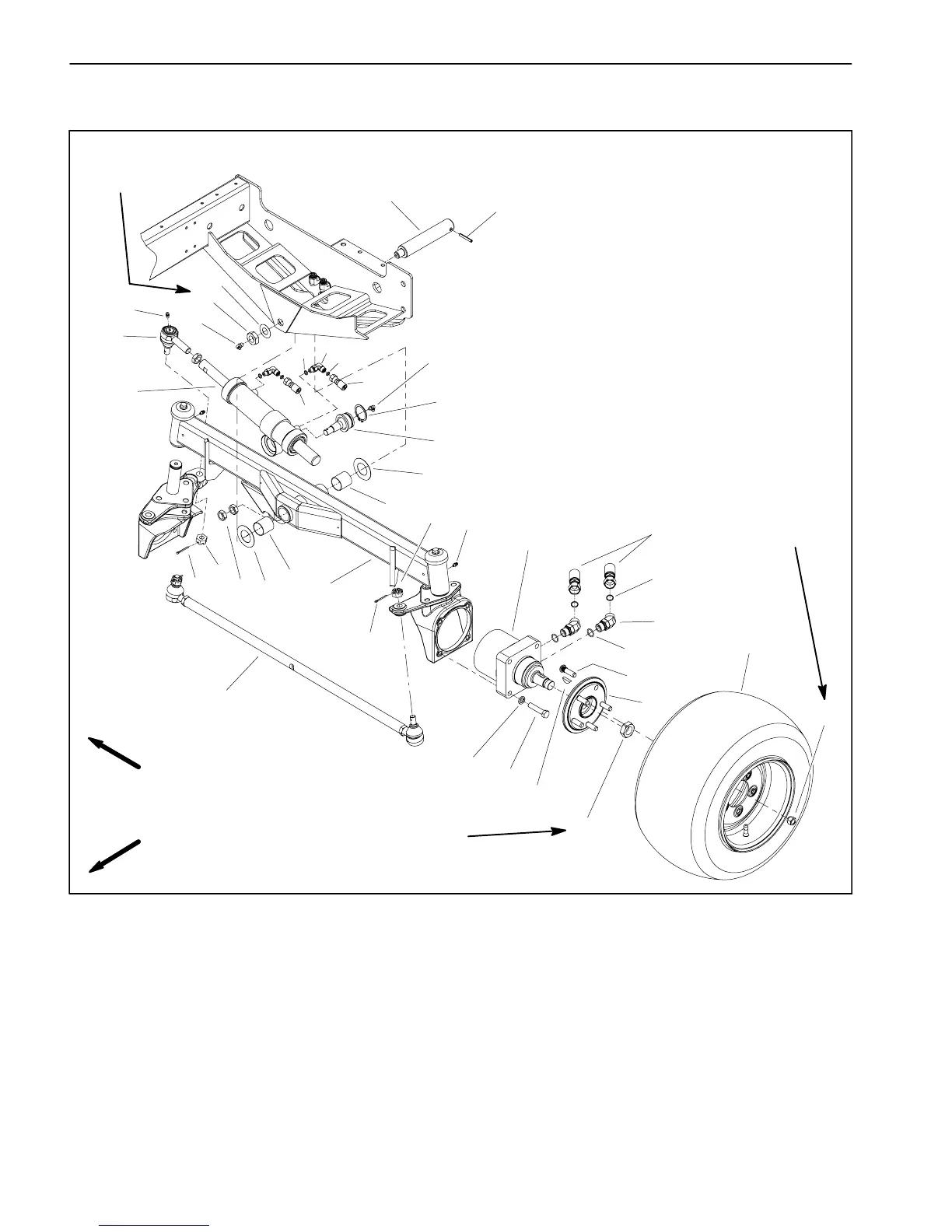

Steering Cylinder
1. Lug nut (5 used per wheel)
2. Rear axle assembly
3. Hydraulic fitting (2 used per motor)
4. Hydraulic fitting (2 used)
5. Tie rod
6. Axle pivot pin
7. Thrust washer
8. Roll pin
9. Thrust washer
10. Jam nut
11. Grease fitting
12. Wheel motor (LH shown)
13. Wheel hub assembly
14. Grease fitting
15. O--ring
16. Jam nut (2 used)
17. Lock nut
18. Hydraulic hose
19. O--ring
20. Cotter pin
21. Steering cylinder
22. Ball joint
23. Ball joint
24. Retaining ring
25. Lock washer (4 used per motor)
26. Wheel assembly
27. Grease fitting
28. Bushing
29. Slotted hex nut
30. Hydraulic hose
31. Woodruff key
32. Cap screw (4 used per motor)
33. O--ring
34. Wheel stud (5 used per hub)
35. Grease fitting
36. O--ring
37. Hydraulic hose
Figure 101
FRONT
RIGHT
90 to 120 ft--lb
(123 to 162 N--m)
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
7
28
32
33
34
35
36
37
70 to 90 ft--lb
(95 to 122 N--m)
270 to 330 ft--lb
(366 to 447 N--m)
31
29
20
