Toro GroundsmasterR 4300-D User Manual

Groundsmaster 4300--DCutting Decks Page 7 -- 18

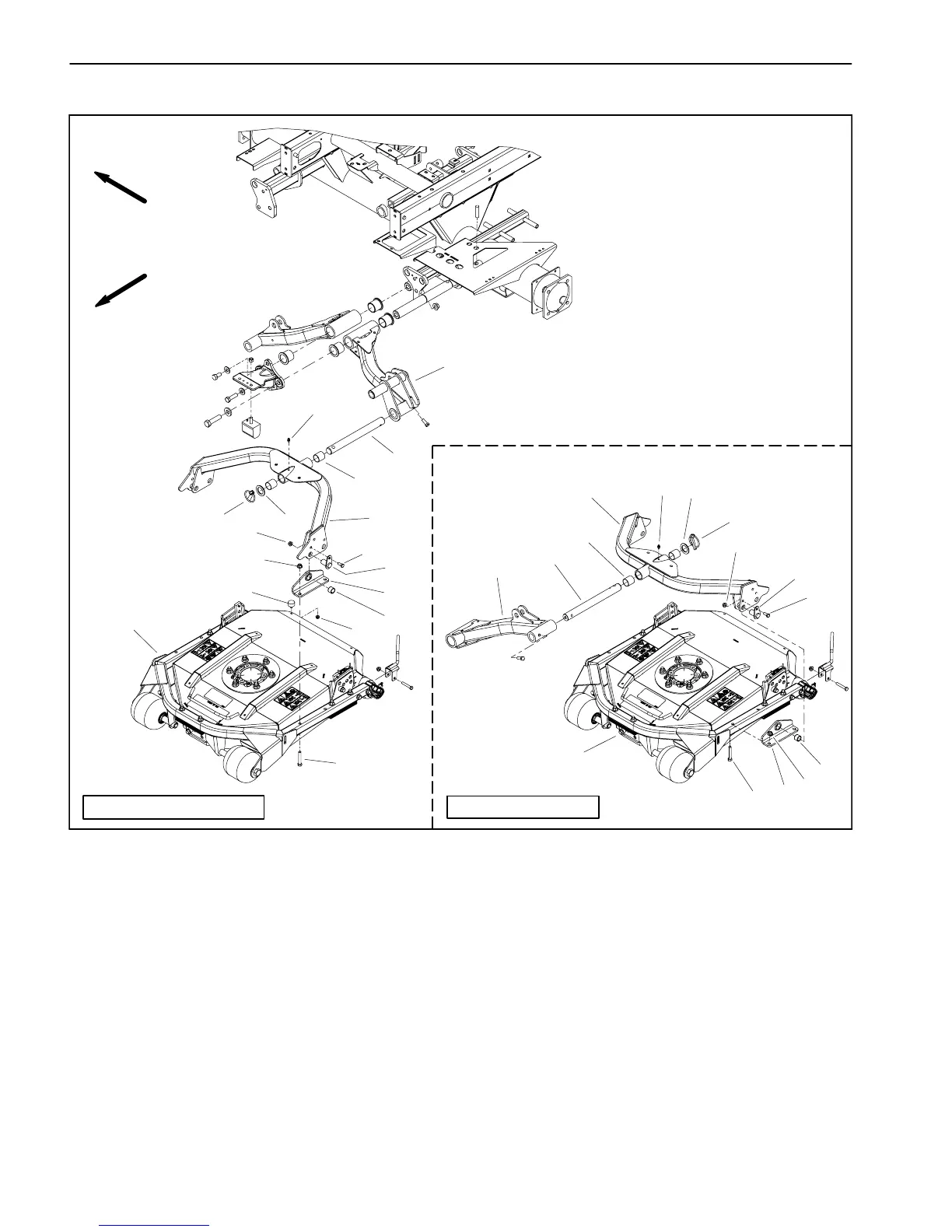

Cutting Deck Carrier Frame
1. Carrier frame
2. Lynch pin
3. Thrust washer
4. Pivot shaft
5. Lift arm (#4 shown)
6. Flange nut (2 used per deck)
7. Cutting deck assembly
8. Cap screw (4 used per deck)
9. Cap screw (2 used per deck)
10. Bushing (2 used per frame)
11. Pin (2 used per deck)
12. Lift arm (#2 shown)
13. Grease fitting
14. Bushing
15. Flange nut (4 used per deck)
16. Pivot bracket (2 used per deck)
17. Flange nut
18. Bumper
Figure 18
FRONT
RIGHT
Decks #2 and #3
Decks #1, #4 and #5
2
3
6
8
9
10
11
13
1
5
7
14
15
16
17
18
4
12
2
3
6
8
9
11
1
4
7
10
13
15
14
16
