Groundsmaster 4300--DPage 6 -- 22Chassis

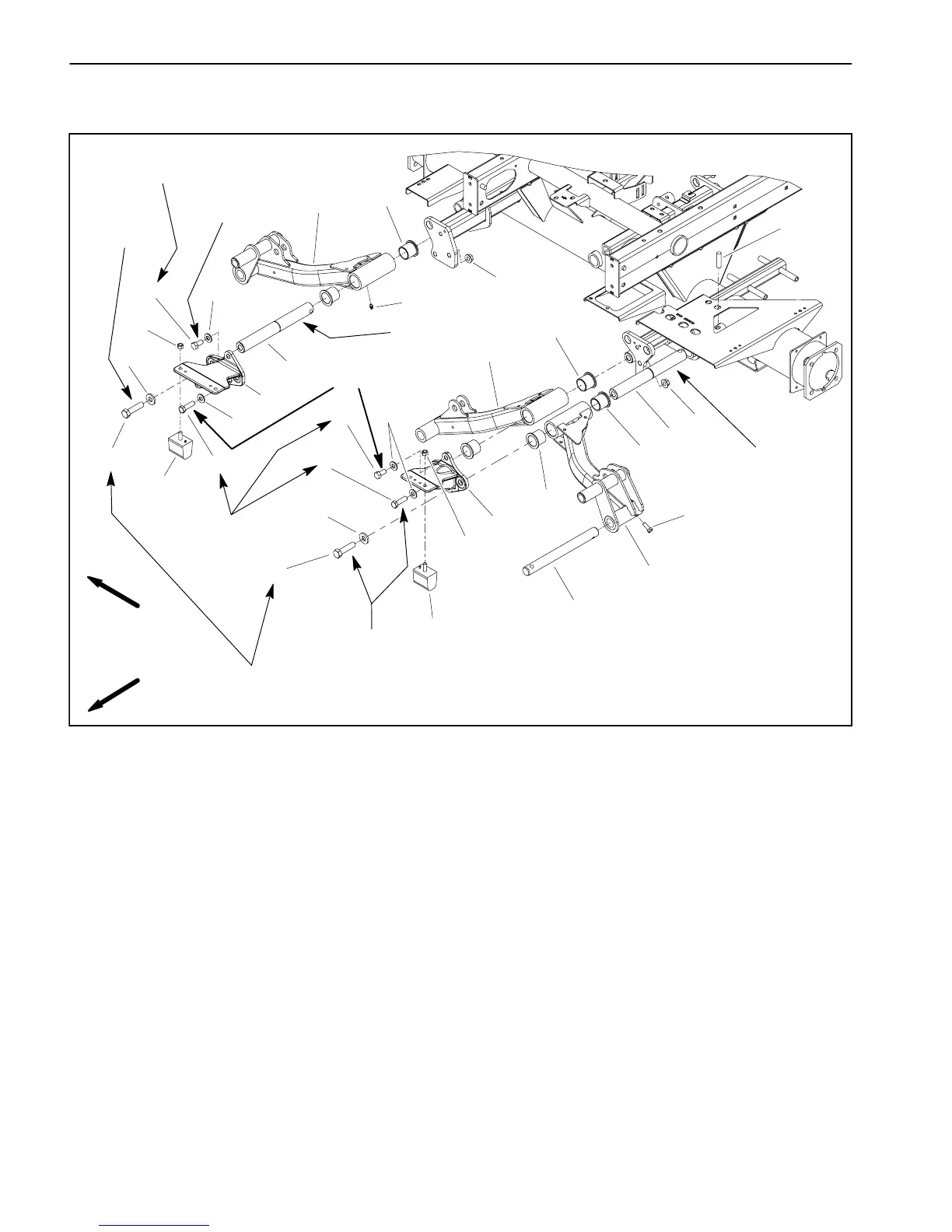

Front Lift Arms
1. #1 lift arm
2. Flange bushing (2 used per lift arm)
3. Roll pin (1 used per lift arm)
4. #4 lift arm
5. #5 lift arm
6. Flange nut (2 used)
7. RH tipper bracket
8. LH tipper bracket
9. Cap screw (2 used)
10. Bumper (4 used)
11. Flat washer
12. Cap screw (1 used per lift arm)
13. Flat washer (1 used per lift arm)
14. Lift arm pivot shaft (3 used)
15. Lock nut (4 used)
16. Pivot shaft (1 used per lift arm)
17. Grease fitting (1 used per lift arm)
18. Cap screw (2 used)
19. Cap screw (1 used per lift arm)
Figure 20
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
4
2
2
6
10
15
9
11
11
13
12
14
18
135 to 165 ft--lb
(183 to 223 N--m)
75 to 95 ft--lb
(102 to 128 N--m)
Threadlocker
Permatex
Threadlocker
Permatex
Lubricant
Antiseize
Lubricant
Antiseize
Threadlocker
Permatex
75 to 95 ft--lb
(102 to 128 N--m)
Threadlocker
Permatex
2
