Groundsmaster 4300--DPage 6 -- 18Chassis

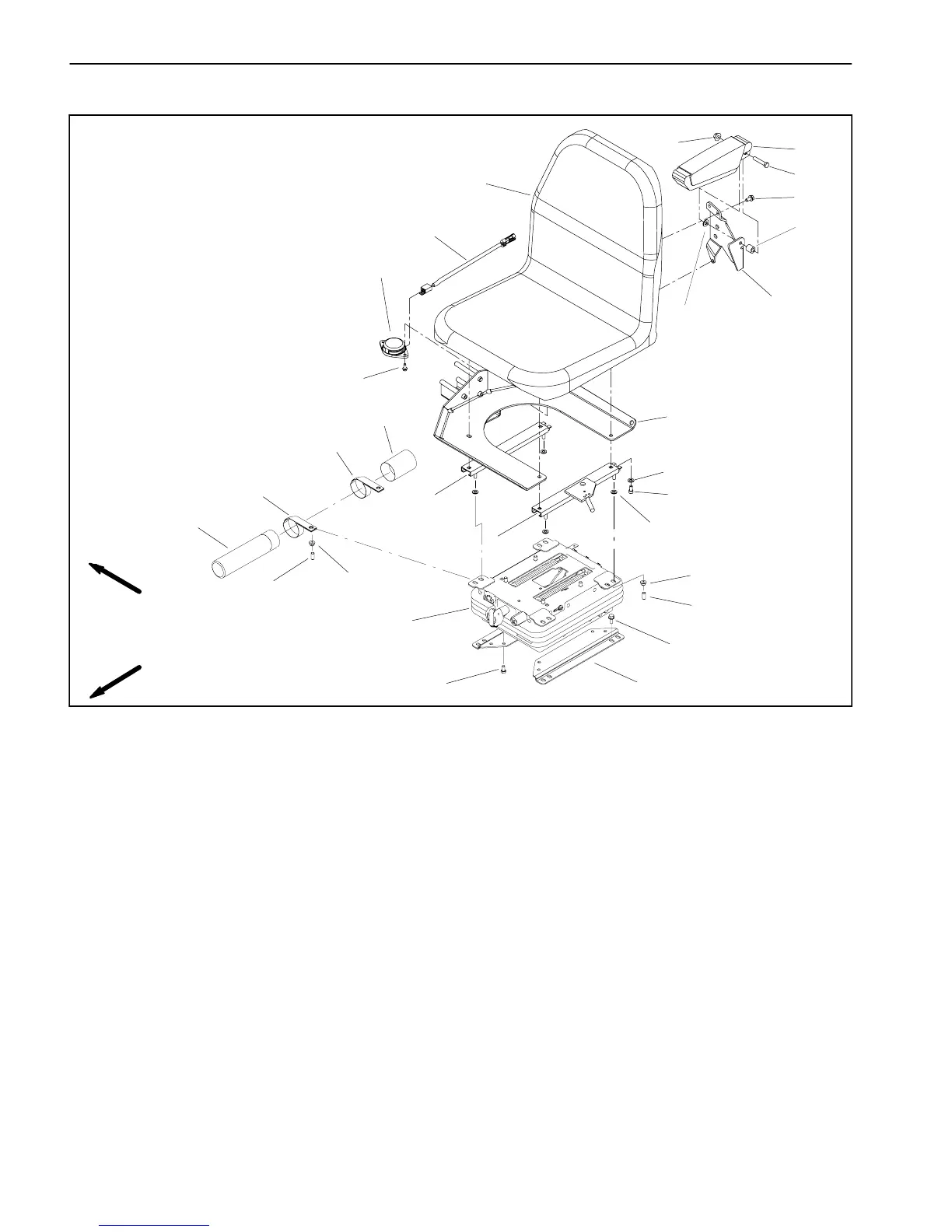

Operator Seat
1. Seat
2. Seat base
3. Seat adjuster w/latch
4. Flat washer (4 used)
5. Seat switch harness
6. Seat switch
7. Washer head screw (2 used)
8. Armrest bracket
9. Spacer
10. Armrest
11. Cap screw
12. Flange nut
13. Flat washer (4 used)
14. Flange head screw (3 used)
15. Socket head screw (4 used)
16. Seat adjuster
17. Flat washer
18. Seat bracket (2 used)
19. Cap screw (4 used)
20. Housing cap
21. R--clamp (2 used)
22. Manual housing
23. Cap (4 used)
24. Flange nut (4 used)
25. Seat suspension
26. Flange head screw (4 used)
Figure 15
15
4
16
1
2
7
6
12
10
11
14
9
17
8
3
5
13
20
21
24
25
22
23
19
18
24
23
FRONT
RIGHT
21
26
IMPORTANT: The operator seat,seat baseand con-
trol arm assembly are attached to the machine with
the same fasteners. Make sure to support the seat
base and control arm to prevent them from shifting
when removing the seat. Damage to the throttle
cable, control arm electrical components and con -
trol arm wiring harness can occur if the seat base
and control arm are not properly supported during
seat removal.
