Groundsmaster 4300--DPage 6 -- 6Chassis
Steering Column
1. Steering column
2. Hydraulic fitting (4 used)
3. Steering wheel
4. Steering wheel cover
5. Gear pump
6. Socket head screw (4 used)
7. Flange nut
8. O--ring
9. Hydraulic tube
10. Hydraulic tube
11. Hydraulic tube
12. Hydraulic tube
13. Column brace
14. Steering control valve
15. Flange head screw (2 used)
16. Flange head screw (2 used)
17. Socket head screw (4 used)
18. Flange nut (2 used)
19. Tube clamp
20. Lock nut
21. Flat washer
22. O--ring

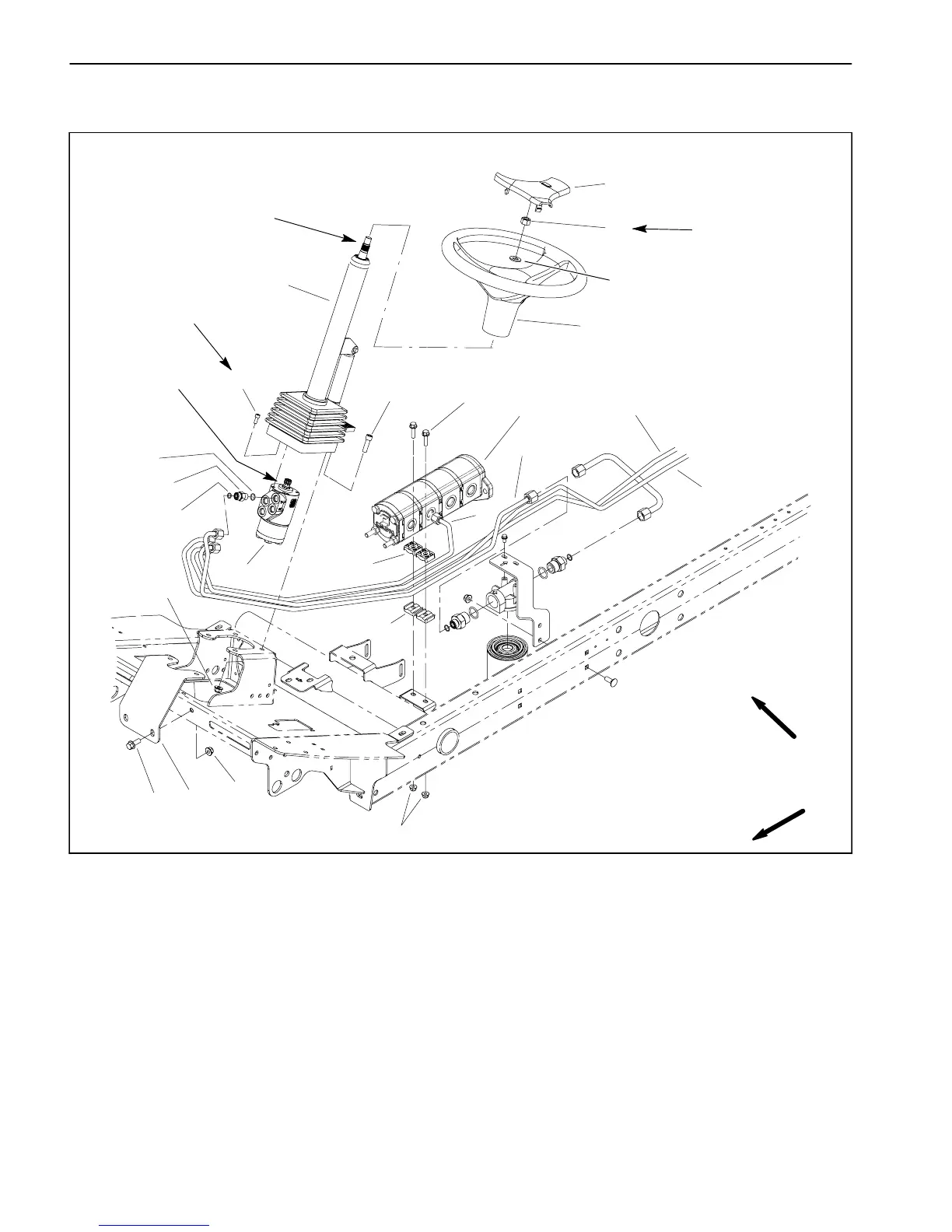

Figure 3
FRONT
RIGHT
2
1
16
17
19
19
18
9
10
12
11
21
13
3
4
7
5
14
8
20
6
7
15
20 to 26 ft--lb
(28to35N--m)
Antiseize
Lubricant
22
84 to 120 in--lb
(9.5 to 13.5 N--m)
Antiseize
Lubricant
Removal (Fig. 3)
1. Park the machine on a level surface, engage the
parking brake, lower the cutting decks and stop the en-
gine. Remove the key from the ignition switch.
2. Remove cover from steering w heel by carefully pry-
ing up on one of the cover spokes.
3. Remove lock nut and flat washer that secure steer-
ing wheel to steering column.
4. Use a suitable puller to remove steering wheel from
steering column.
