Groundsmaster 4300--D Hydraulic SystemPage 4 -- 17
Lift Circuit: Raise Cutting Decks
A four section gear pump is coupled to the piston (trac-
tion) pump. Gear pump section (P4) supplies hydraulic
flowtotheliftcontrolmanifoldandliftcylinders.Thegear
pump takes its s uction from the hydraulic reservoir.
The lift control manifold includes three (3) electrically
operatedvalves.Solenoidv alve(S1)isusedtodirectoil
flowtoextendtheliftcylinderswhenenergizedorretract
them when de--energized. Solenoid valve (S2) allows
hydraulic flowfrom therod endof thelift cylinderswhen
energized and prevents oil passage from the lift cylin-
ders when de--energized. Proportional relief valve
(PRV) is used to control the operation of the manifold
logiccartridge(LC)andalsoactsasacircuitreliefvalve.
While operating the machine during conditions of not
raisingorloweringthecuttingdecks(joystickintheneu-
tral (center) position) (Fig. 17), all of the lift manifold
valves(S1,S2andPRV)arede--energized.Thede--en-
ergizedreliefvalve(PRV)allowshydraulicflowtoreturn
to tank through the manifold. This flow causes a pres-
suredifferentialthatshifts thelogiccartridge(LC) which
allows pump flow to bypass the lift cylinders. Flow re-
turns to the oil filter and then to the hydraulic reservoir.
Raise Cutting Decks (Fig. 16)
Whenthejoystickismovedtotheraiseposition,thecon-
trollerenergizestheproportionalreliefvalve(PRV).The
energized relief valve (PRV) prevents flow through the
valve which returns logic cartridge LC to the unshifted
position. With lift manifold cartridges in this position,
pumpflow isdirected totherod endofall liftcylindersto
retract the cylinders and raise all cutting decks. Flow to
thelift cylindersbypasses thecontrolmanifold fixedori-
fices to prevent flow restriction during deck raising.
Whilethecuttingdecksarebeingraised,theproportion-
al relief valve (PRV) has a secondary function as a cir-
cuit relief to limit lift circuit pressure to 2000 PSI (138
bar). Lift circuitpressurecan be monitored at lift control
manifold port G4.
When the joystick is returned to the neutral (center)
position, the proportional relief valve (PRV) is de--ener-
gized. The de--energized relief valve (PRV) allows hy-
draulic flow to return to tank through the manifold. This
flow causes a pressure differential that shifts the logic
cartridge (LC) which allows pump flow to bypass the lift
cylinders. All lift cylinders and cutting decks are held in
the raised position by de--energized valve S2.

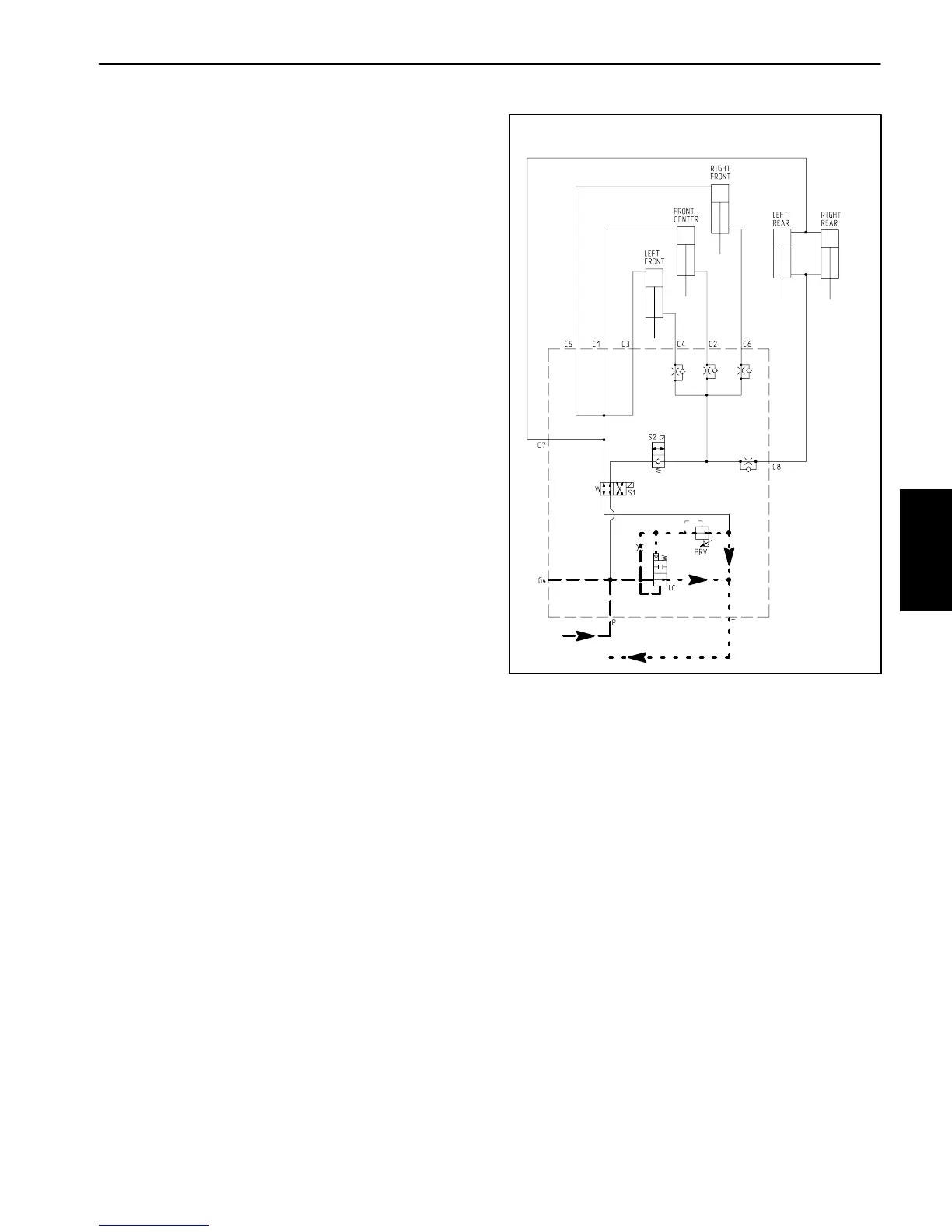

Figure 17
LIFT
CONTROL
MANIFOLD
FROM
PUMP P4
TO OIL
FILTER
DE--ENERGIZED
S1, S2 AND PRV
LC SHIFTED
LIFT CIRCUIT: NOT RAISING OR LOWERING
Hydraulic
System
To Next Page
