Groundsmaster 4300--DHydraulic System Page 4 -- 80
Rear Wheel Motors
1. Lug nut (5 used per wheel)
2. Rear axle assembly
3. Hydraulic fitting (2 used per motor)
4. Wheel assembly
5. Tie rod
6. Wheel stud (5 used per hub)
7. O--ring
8. Woodruff key
9. Cap screw (4 used per motor)
10. Lock washer (4 used per motor)
11. Steering cylinder
12. Wheel motor (LH shown)
13. Wheel hub assembly
14. Lock nut
15. Hydraulic hose (2 used per motor)

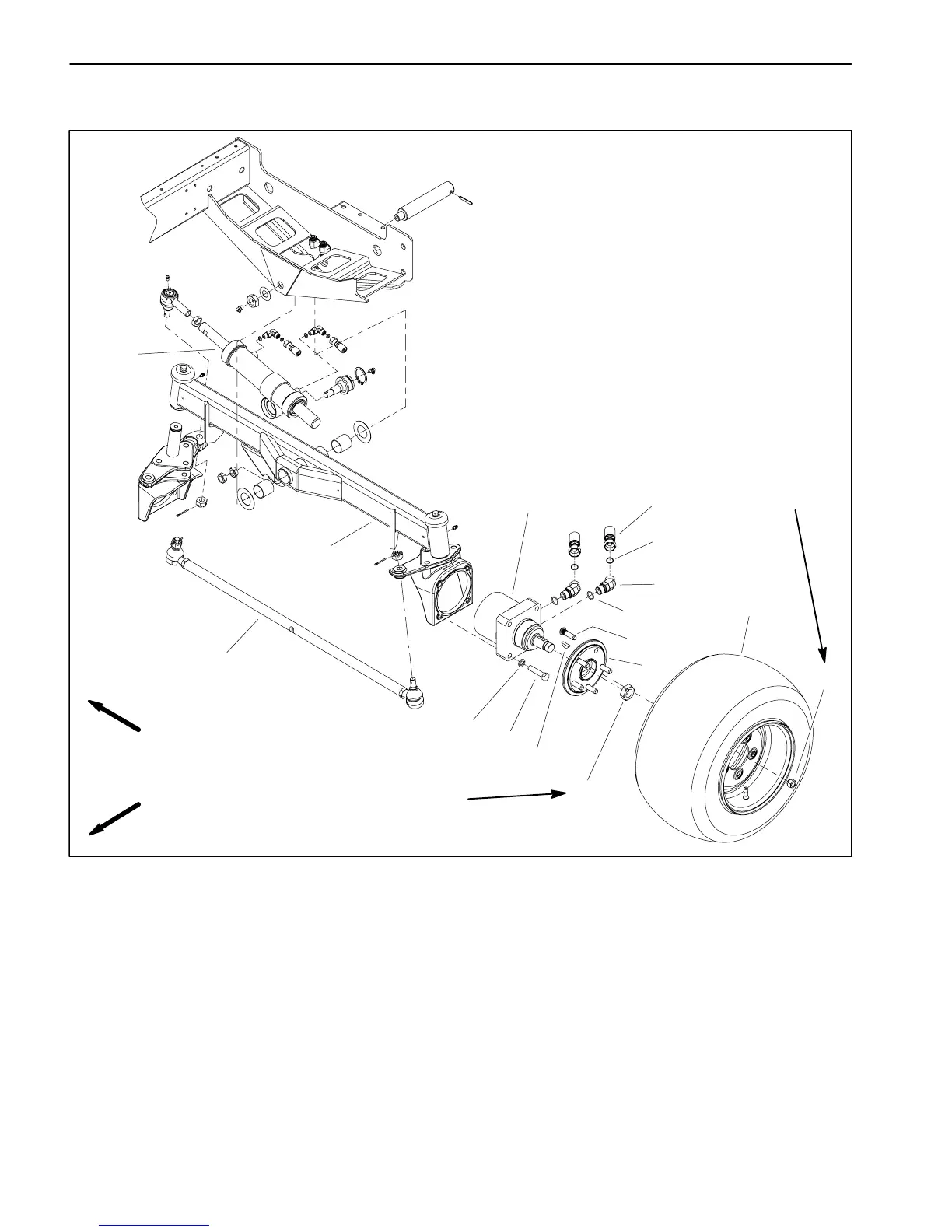

Figure 75
FRONT
RIGHT
2
3
13
1
5
12
14
15
16
4
11
10
9
7
6
70 to 90 ft--lb
(95 to 122 N--m)
270 to 330 ft--lb
(366 to 447 N--m)
8
