Groundsmaster 4300--DPage 3 -- 8Kubota Diesel Engine
Exhaust System

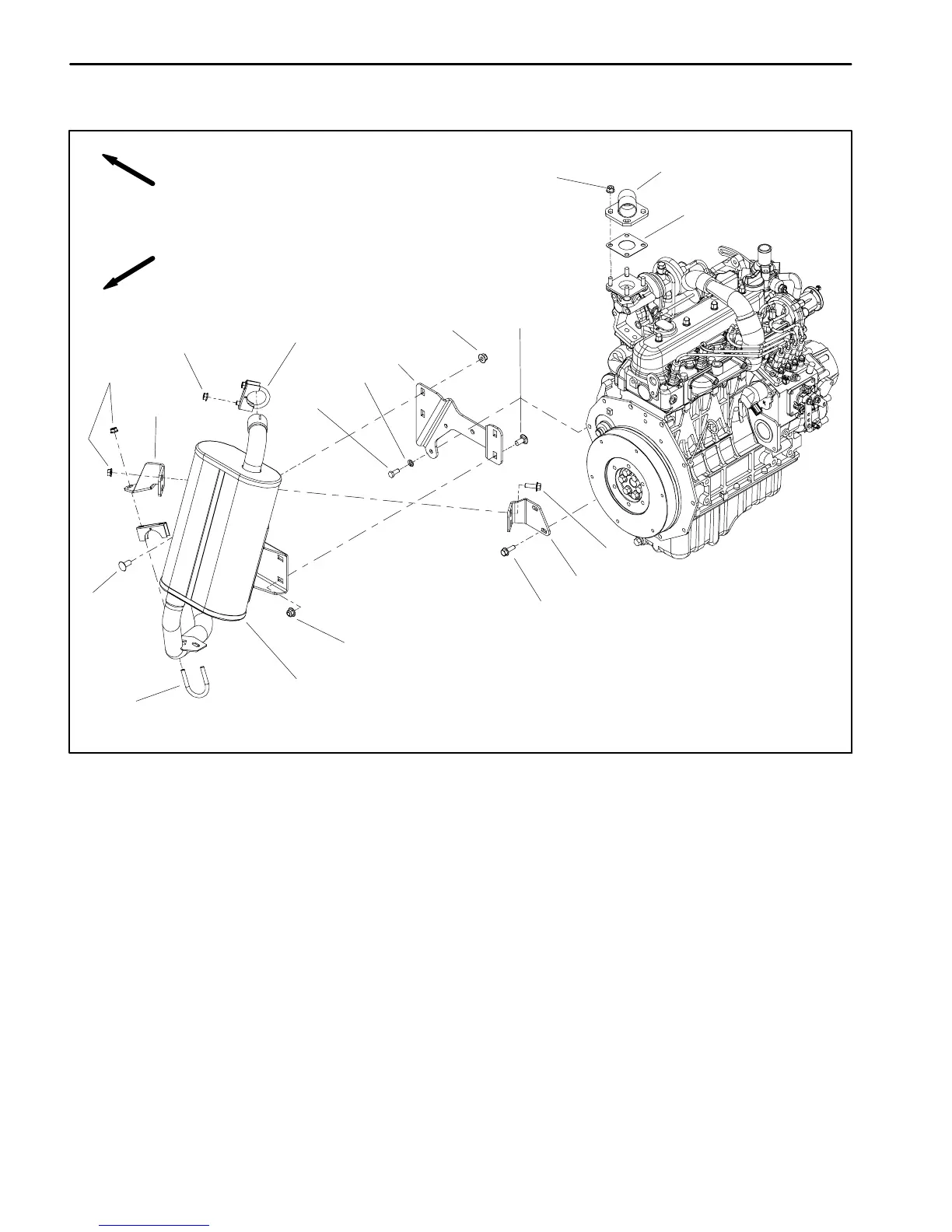

Figure 6
1. Gasket
2. Lock washer (2 used)
3. Flange nut (4 used)
4. Cap screw (2 used)
5. Carriage screw (4 used)
6. Flange nut (4 used)
7. Muffler support bracket
8. Flange head screw (2 used)
9. Tail pipe bracket
10. Hex nut (2 used)
11. Upper clamp
12. Flange nut (4 used)
13. Exhaust header
14. Flange head screw (2 used)
15. Muffler
16. T ail pipe bracket
17. Lower clamp
FRONT
RIGHT
2
3
6
8
9
10
11
1
5
7
12
15
16
4
13
14
5
6
17
