EM–10
2GR-FE ENGINE MECHANICAL – ENGINE FRONT OIL SEAL
EM
INSTALLATION

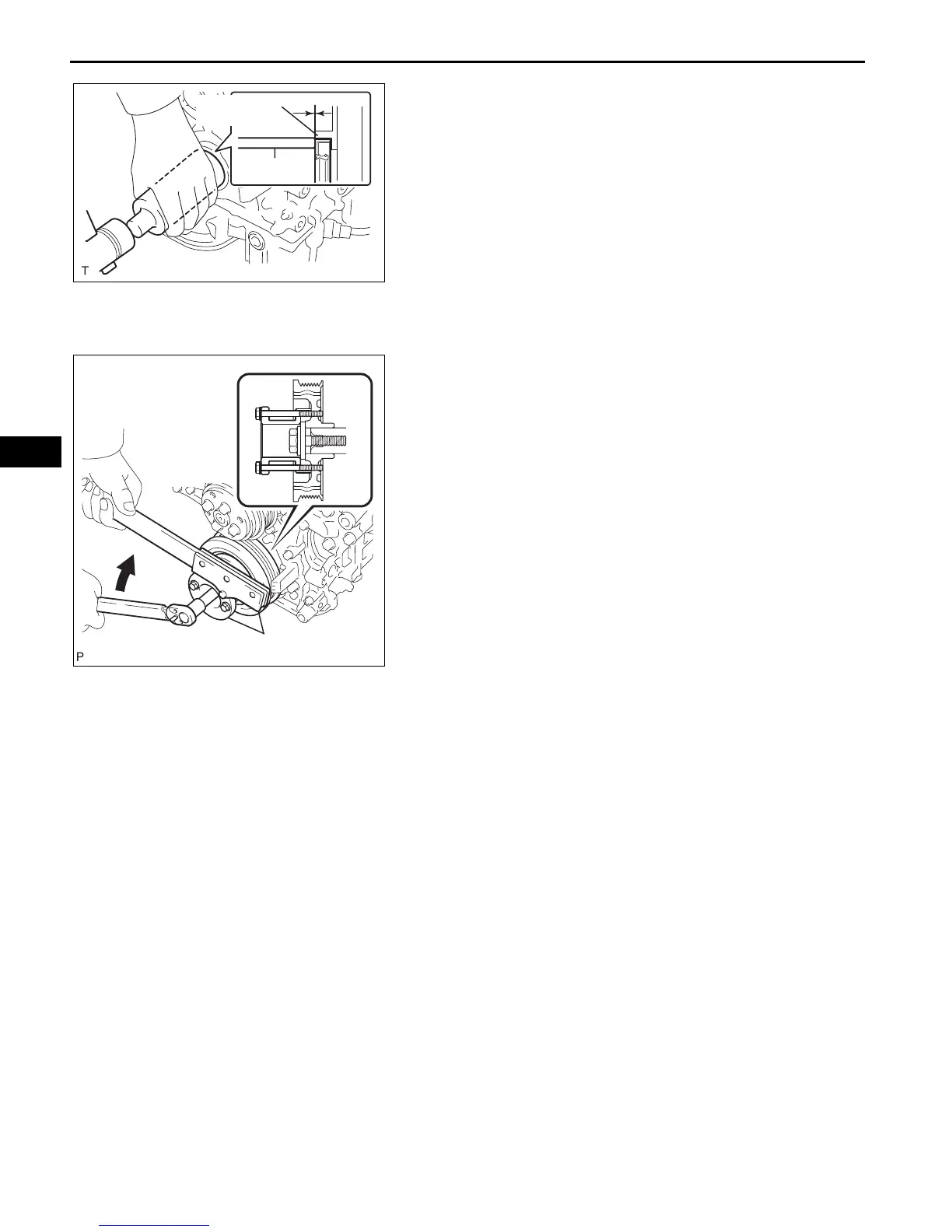

1. INSTALL TIMING CHAIN CASE OIL SEAL
(a) Apply MP grease to a new oil seal lip.
(b) Using SST and a hammer, tap in the oil seal until its
surface is flush with the timing chain cover edge.
SST 09316-60011 (09316-00011)
NOTICE:
• Keep the lip free of foreign matter.
• Do not tap the oil seal at an angle.
2. INSTALL CRANKSHAFT PULLEY
(a) Align the pulley set key with the key groove of the
pulley, and slide on the pulley.
(b) Using SST, install the pulley bolt.
SST 09213-70011 (09213-70020), 09330-00021
Torque: 250 N*m (2,550 kgf*cm, 184 ft.*lbf)
3. INSTALL V-RIBBED BELT (See page EM-7)
4. INSTALL V-BANK COVER SUB-ASSEMBLY (See
page EM-52)
5. INSTALL FRONT FENDER APRON SEAL RH
6. INSTALL FRONT WHEEL RH
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
Chain Cover
SST
A132242E01
SST
A119084E01
