EM–28
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM

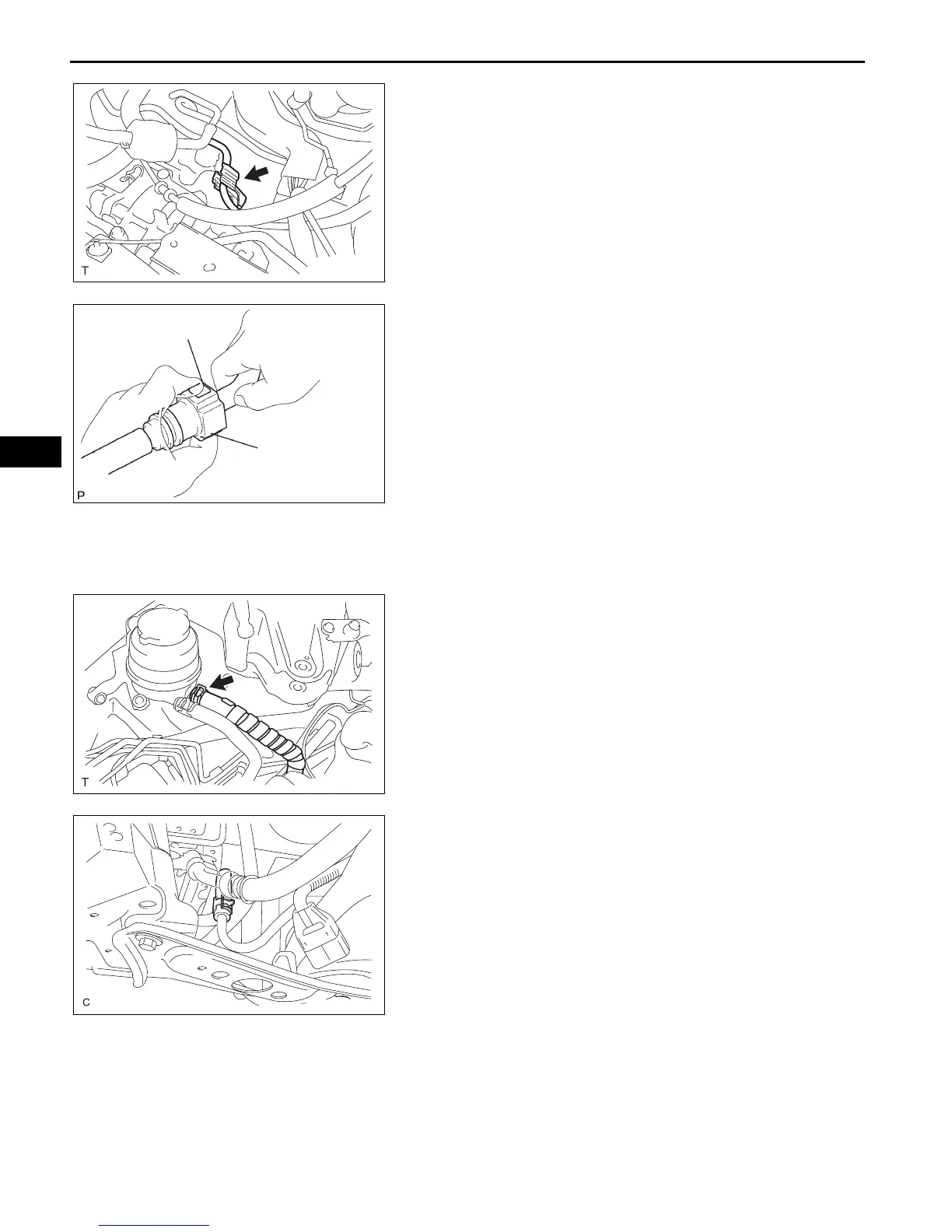

36. SEPARATE FUEL TUBE SUB-ASSEMBLY
(a) Remove the No. 1 fuel pipe clamp.
(b) Disconnect the connector from the tube while
pinching part A with your fingers as shown in the
illustration.
NOTICE:
• Check for contamination in the pipe and
around the connector. Clean if necessary and
then disconnect the connector.
• Disconnect the connector by hand.
• Do not bend, fold or rotate the nylon tube.
• If the pipe and connector are stuck together,
push and pull the connector until it becomes
free.
• Put the pipe and connector ends in vinyl bags
to prevent damage and contamination.
37. DISCONNECT NO. 1 OIL RESERVOIR TO PUMP
HOSE
(a) Disconnect the No. 1 oil reservoir to pump hose.
38. DISCONNECT RETURN TUBE SUB-ASSEMBLY
(a) Disconnect the return tube sub-assembly.
39. REMOVE EXHAUST PIPE NO. 1 SUPPORT BRACKET
(See page EX-3)
40. REMOVE EXHAUST PIPE ASSEMBLY FRONT (See
page EX-2)
41. REMOVE FRONT AXLE HUB NUT LH (See page DS-
7)
42. REMOVE FRONT AXLE HUB NUT RH
HINT:
Use the same procedures described for the LH side.
43. DISCONNECT FRONT STABILIZER LINK ASSEMBLY
LH (See page DS-7)
A129626
A
A
B012941E15
A129629
A132984
