Toyota 2GR-FE User Manual

2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–47
EM

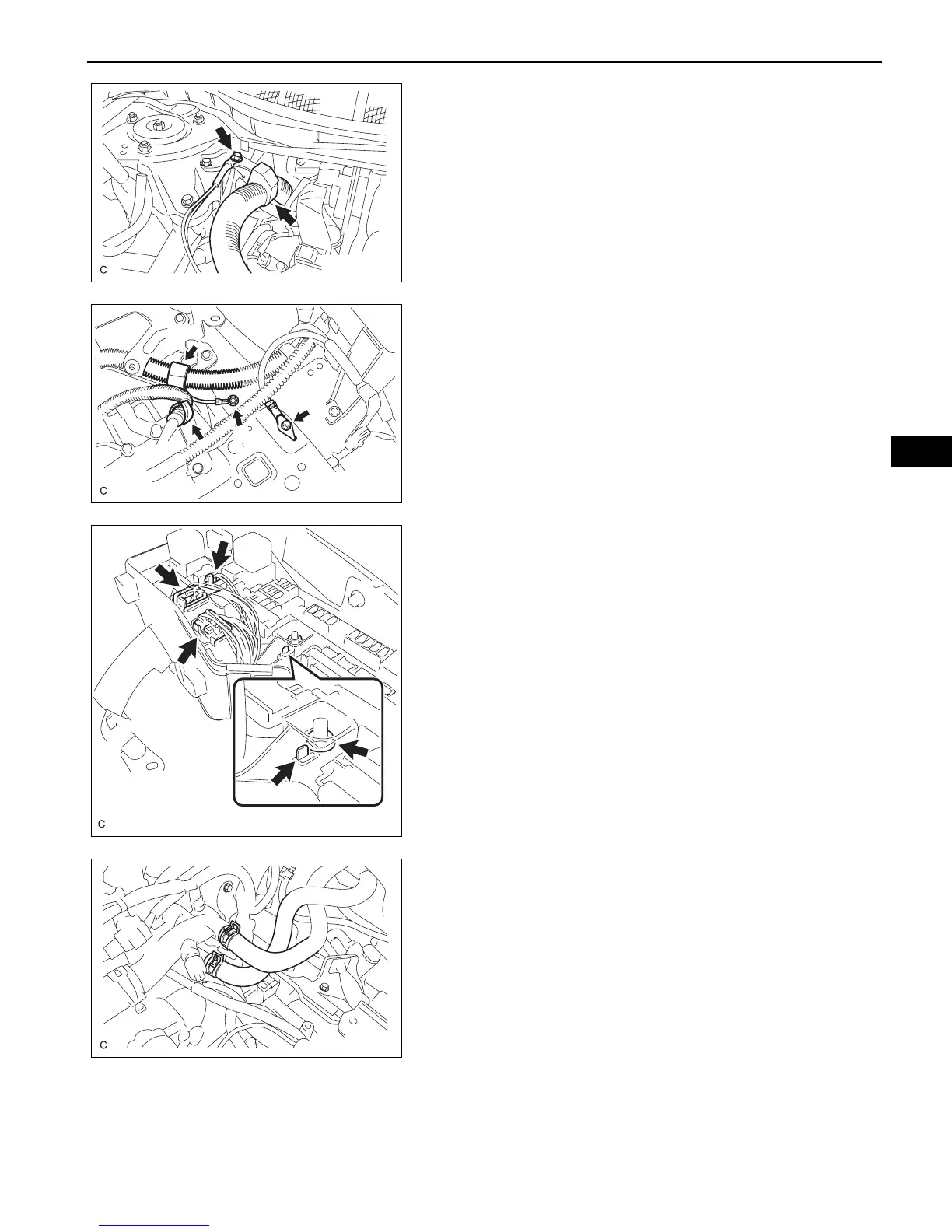

55. CONNECT ENGINE WIRE
(a) Install the bolt and clamp to the bracket.
Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)
(b) Install the 2 bolts and 2 clamps to the body.
Torque: Bolt A
12 N*m (123 kgf*cm, 9 ft.*lbf)
Bolt B
8.4 N*m (85 kgf*cm, 74 in.*lbf)
(c) Connect the wire to the engine room junction block.
Then, install it with the nut and 3 connectors.
Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)
56. INSTALL RELAY BLOCK COVER UPPER
57. INSTALL ECM (See page ES-519)
58. CONNECT HEATER INLET WATER HOSE
(a) Connect the heater inlet water hose.
59. CONNECT HEATER OUTLET WATER HOSE
(a) Connect the heater outlet water hose.
A132981
A
B
A132976E01
A132975
A132978

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
