EM–30
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM

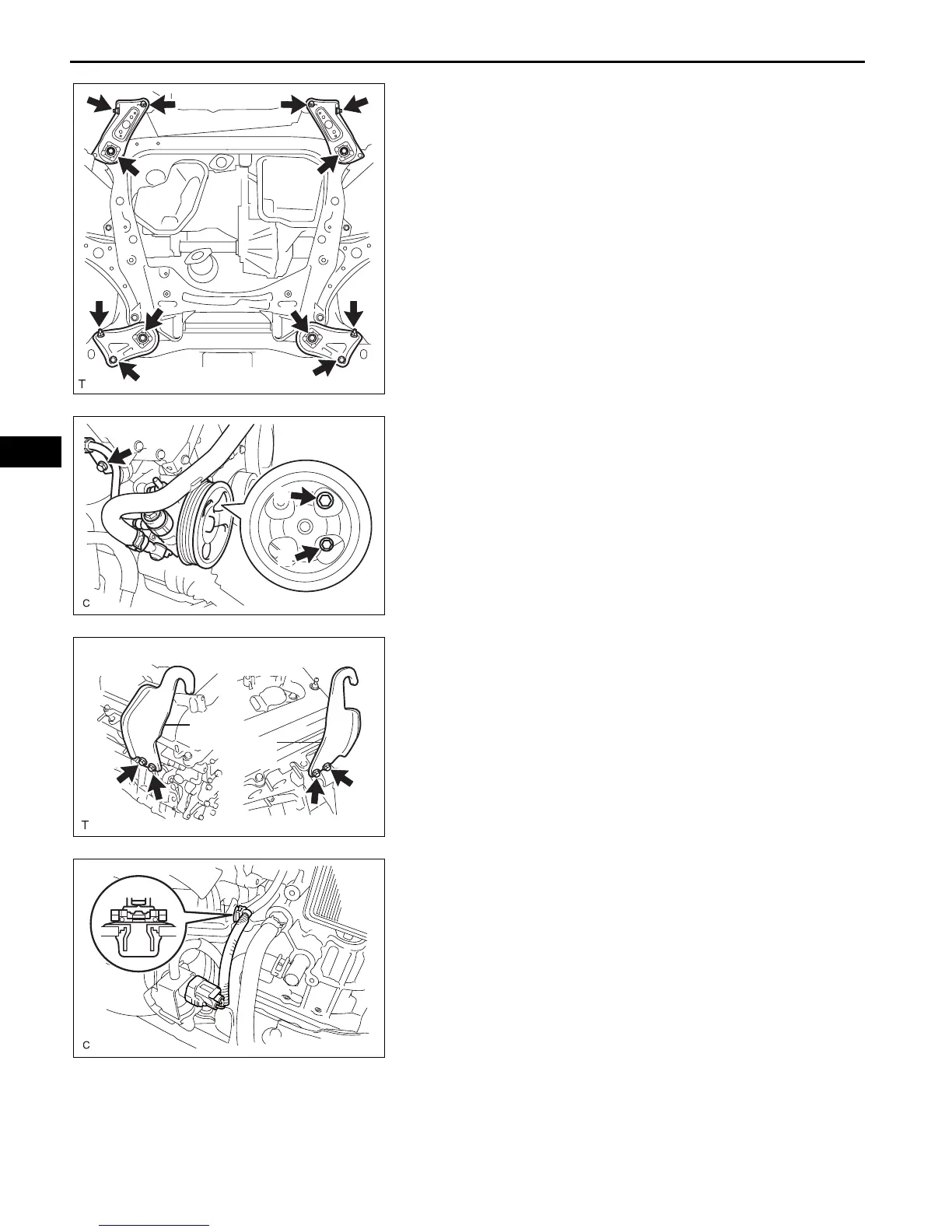

(b) Remove the 4 bolts, 2 nuts, and frame side rail
plates RH and LH.
(c) Remove the 4 bolts, 2 nuts, and front suspension
member brace rear RH and LH.
(d) Operate the engine lifter, then remove the engine
assembly from the vehicle.
NOTICE:
Make sure that the engine is clear of all wiring
and hoses.
59. REMOVE VANE PUMP ASSEMBLY
(a) Disconnect the power steering oil pressure switch
connector.
(b) Remove the pressure feed tube clamp bolt.
(c) Loosen the bolt A.
(d) Remove the bolt B and vane pump.
60. INSTALL ENGINE HANGERS
(a) Install the 2 engine hangers with the 4 bolts as
shown in the illustration.
Part No.:
No. 1 Engine hanger 12281-31070
No. 2 Engine hanger 12282-31050
Bolts 91671-10825
Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)
(b) Attach the engine sling device and hang the engine
with the chain block.
61. REMOVE FRONT FRAME ASSEMBLY
(a) Disconnect the connector and clamp.
A129634
A
B
A138331E01
RH side :
No. 1
No. 2
LH side :
A129635E03
A132990
To Next Page
