2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–51
EM
74. CONNECT VACUUM HOSES
75. INSTALL V-RIBBED BELT (See page EM-7)
76. INSTALL COWL TOP PANEL OUTER SUB-
ASSEMBLY (See page ES-485)
77. INSTALL WINDSHIELD WIPER LINK ASSEMBLY
HINT:
See page WW-13.
78. INSTALL FRONT WHEELS
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
79. ADD ENGINE OIL
80. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)
81. ADD ENGINE COOLANT (See page CO-6)
82. ADD AUTOMATIC TRANSAXLE FLUID (See page AX-
220)
83. ADD POWER STEERING FLUID

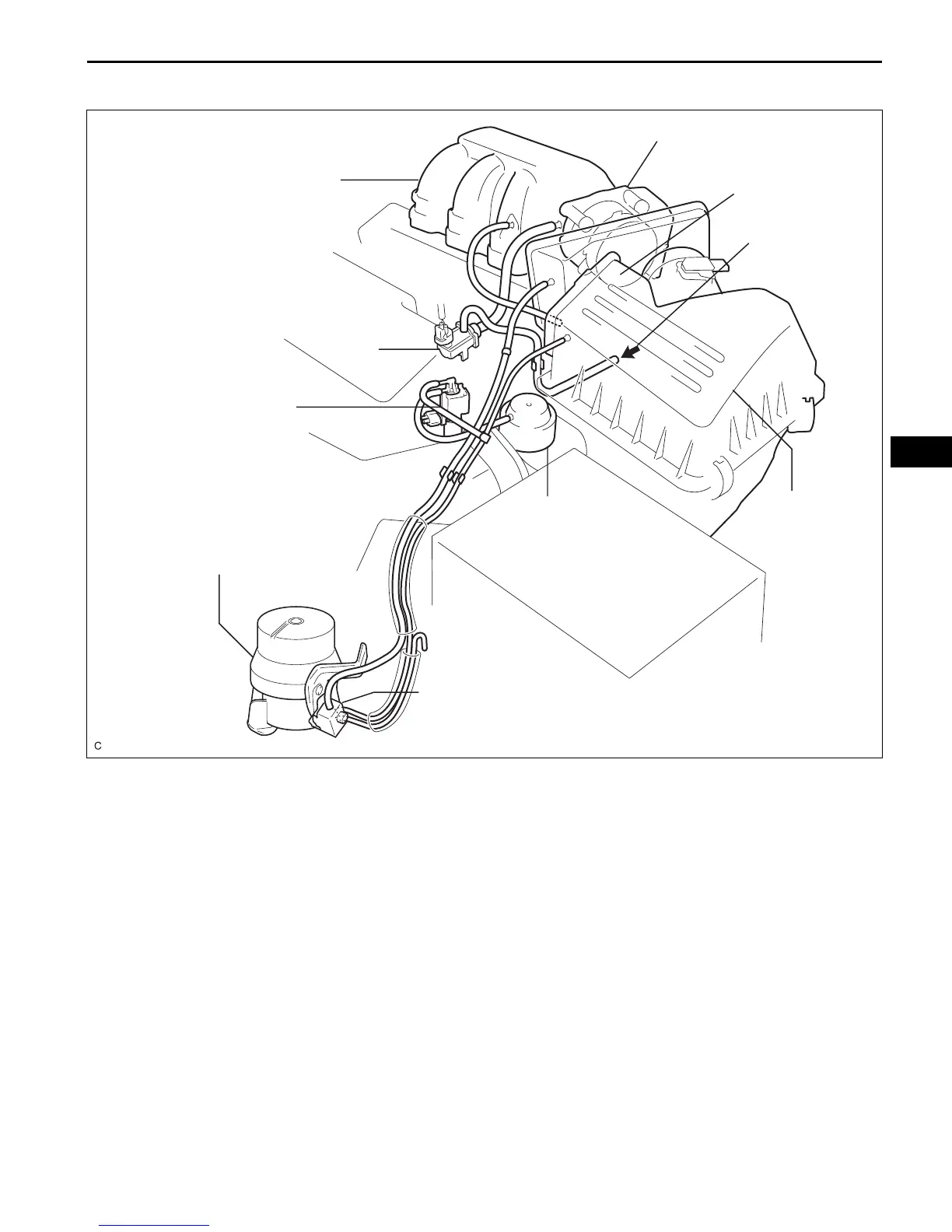

Vacuum Hose Routing Diagram :
Intake Air Surge Tank
VSV
VSV
Actuator
VSV for Active Control Engine Mount (ACM)
Engine Mounting Insulator FR
Air Cleaner
From Canister
Vacuum Tank
Throttle Body
A132993E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
