EM–12
2GR-FE ENGINE MECHANICAL – ENGINE REAR OIL SEAL
EM

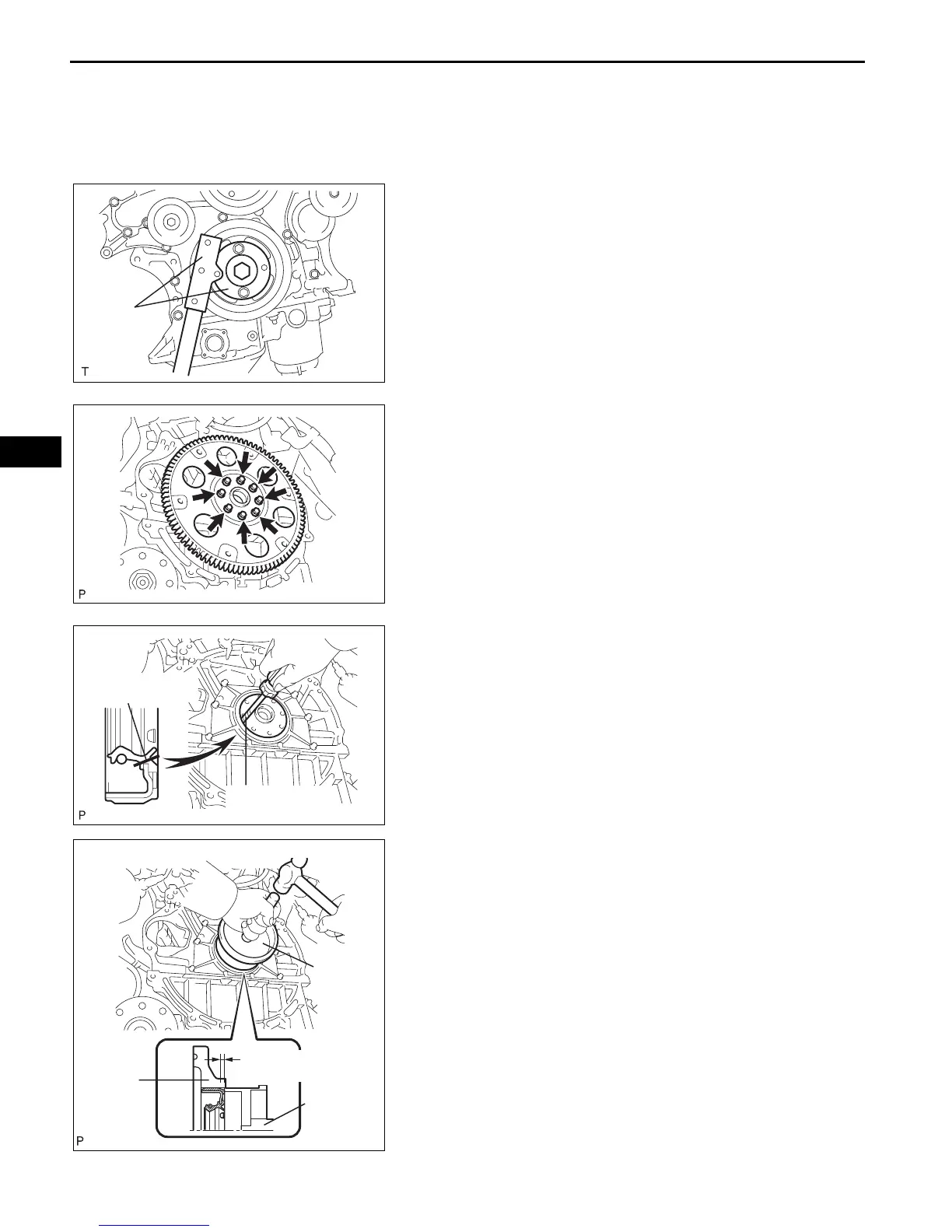

REMOVAL
1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
HINT:
See page AX-207.
2. REMOVE DRIVE PLATE AND RING GEAR SUB-
ASSEMBLY
(a) Using SST, hold the crankshaft.
SST 09213-70011 (09213-70020), 09330-00021
(b) Remove the 8 bolts, front spacer, drive plate and
rear spacer.
3. REMOVE ENGINE REAR OIL SEAL
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
NOTICE:
Be careful not to damage the crankshaft. Tape
the screwdriver tip before use.
INSTALLATION
1. INSTALL ENGINE REAR OIL SEAL
(a) Apply MP grease to a new oil seal lip.
(b) Using SST and a hammer, tap in the oil seal.
SST 09223-15030, 09950-70010 (09951-07150)
Oil seal tap in depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
SST
A129631E01
A132243
Cut Position
Protective Tape
A132244E01
SST
SST
Retainer
-0.5 to 0.5 mm
A132245E01
To Next Page
