EM–64
2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM
DISASSEMBLY
1. REMOVE OIL FILLER CAP SUB-ASSEMBLY
(a) Remove the oil filler cap and gasket.
2. REMOVE SPARK PLUG
(a) Remove the spark plugs.

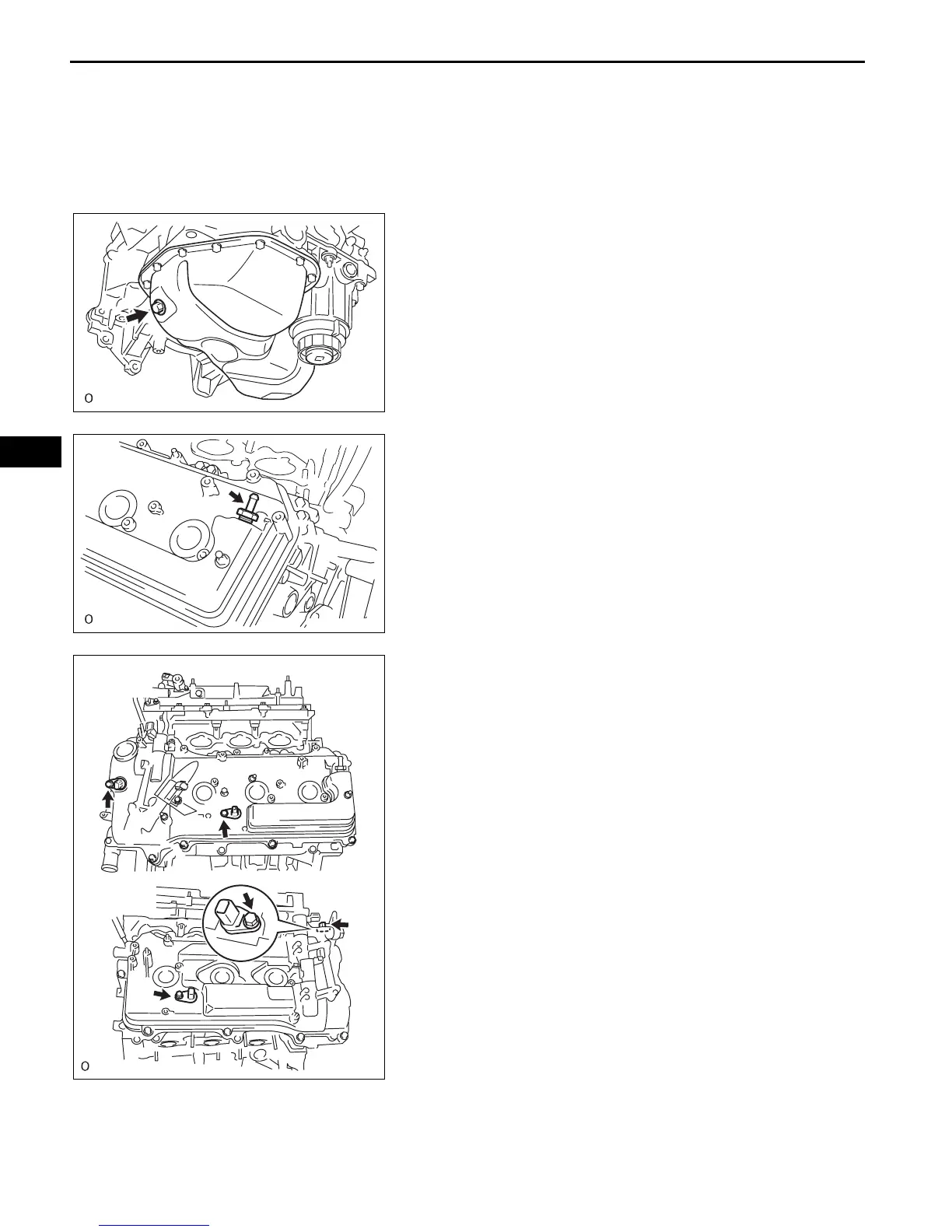

3. REMOVE OIL PAN DRAIN PLUG
(a) Remove the drain plug and gasket.
4. REMOVE VENTILATION VALVE SUB-ASSEMBLY
(a) Remove the ventilation valve.
5. REMOVE CAMSHAFT POSITION SENSOR
(a) Remove the 4 bolts and 4 sensors.
A129654
A129655
LH Bank:
RH Bank:
A129656E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
